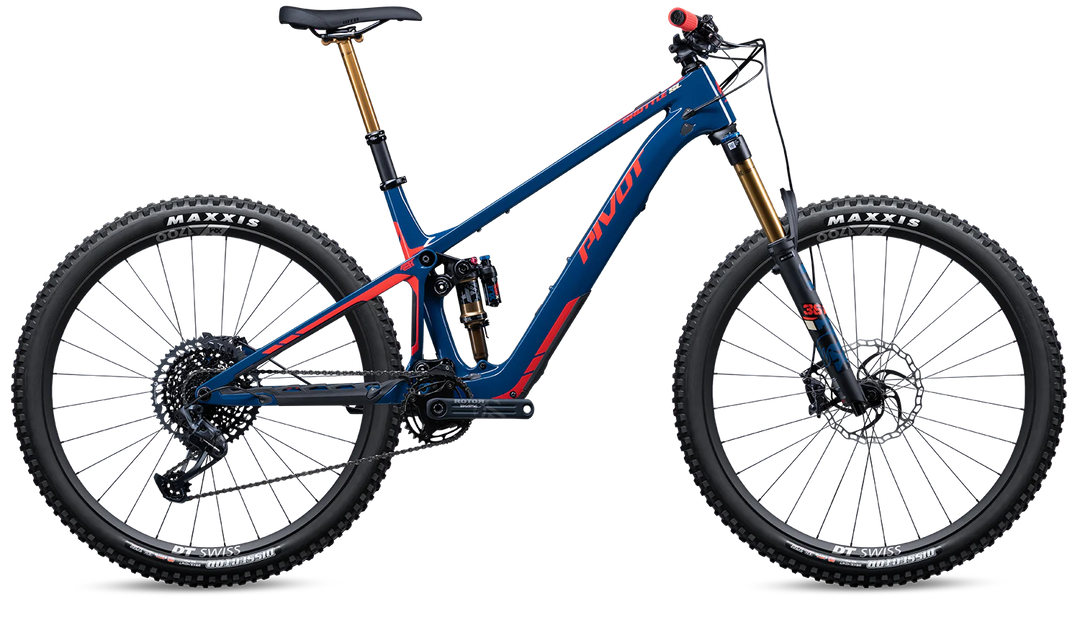

The next-generation Shuttle AM sets a new all-mountain benchmark. Turning raw power into pure trail magic, it climbs like it’s got a vendetta against gravity and descends like it has a score to settle. Smooth, responsive, and almost telepathic, it delivers a surreal blend of torque, traction, and pure trail tenacity. Built around a lightweight full-carbon chassis and Bosch's legendary Performance Line CX system, every outing becomes a story worth sharing.

Specifications

E-Bike System

• Motor: Bosch Performance Line CX (85Nm max torque, 340% max support)

• Battery: 625Wh integrated, non-removable (Compatible with additional Bosch PowerMore 250Wh range extender)

• Controller & Display: Bosch integrated top tube Power/Mode display with Bosch wireless handlebar remote

• Assistance Modes: Turbo, Sport/eMTB, Tour, Eco, Walk Assist

• Connectivity: Power settings fully customizable via Bosch eBike Flow Mobile App

Frame & Suspension

• Frame: Hollow Core carbon front and rear triangles, dw-link® rear suspension design, geometry adjustable via upper linkage flip-chip. Cable Port System internal cable routing, SuperBoost+ 12x157mm spacing, SRAM UDH.

• Frame Protection: Injection-molded chainstay, seatstay, and down tube protection

• Fork: FOX FLOAT 36 Performance E-MTB, GRIP damper, 44mm offset, 160mm travel

• Rear Shock: FOX FLOAT X Performance, trunnion mount (185mm length x 55mm stroke / 148mm rear travel)

• Chainguide: Upper slider included

Drivetrain & Shifting

• Shifter: Shimano SLX M7100, 12-speed (I-SPEC EV mount)

• Rear Derailleur: Shimano Deore XT M8100, 12-speed, SGS cage

• Crankset: Praxis Alloy eCranks E-MTB with 34T chainring

• Cassette: Shimano Deore M6100, 10-51T, 12-speed

• Chain: Shimano Deore M6100, 12-speed

• Pedals: None included

Brakes & Rotors

• Brakes: Shimano SLX M7120, 4-piston hydraulic disc

• Rotors: Shimano Deore 203mm Center Lock (Front and Rear)

• Brake Levers: Shimano SLX M7120

Wheels & Tyres

• Wheelset: DT Swiss Hybrid H1900 alloy wheelset, 30mm inner width, 29"

• Hub Spacing: 15x110mm Boost Front / 12x157mm SuperBoost+ Rear with Micro Spline driver

• Front Tyre: Maxxis Minion DHF 29" x 2.4” WT, Tubeless Ready, 3C MaxxTerra, EXO+ casing

• Rear Tyre: Maxxis Minion DHR II 29" x 2.4” WT, Tubeless Ready, 3C MaxxTerra, EXO+ casing

• Wheel Compatibility: Also compatible with mixed ("Mullet" 29"/27.5") wheel setups using flip-chip in High position, or dedicated 27.5+ setups. Max tyre clearance up to 29" x 2.5".

Cockpit & Components

• Saddle: WTB Volt Race Phoenix (Medium width)

• Seatpost: e*thirteen Vario travel-adjustable dropper post (31.6mm diameter)

  • Sizes SM–LG: 150mm–180mm adjustable travel

  • Size XL: 180mm–210mm adjustable travel

• Handlebar: Phoenix Race Low Rise Aluminium (SM/MD: 780mm width | LG/XL: 800mm width)

• Stem: Phoenix Team Enduro/Trail

• Headset: Pivot Precision, sealed cartridge bearings (ZS44 upper / ZS56 lower)

• Grips: Phoenix Factory, lock-on

• Mounts: One water bottle cage mount inside front triangle, plus dedicated accessory mounts under the top tube (Pivot Dock Tool System compatible).

Sizing, Options & Warranty

• Intended Use: Enduro / All-Mountain

• Sizes Available: SM, MD, LG, XL

• Colours: Blue Neptune or Mojave Willow Green

• Warranty: 10-year limited frame warranty; 5 years on Pivot/Phoenix components; 1 year on paint, finish, and bearings.

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without notice.
