Surly Single Cog

SURLY CASSETTE COG

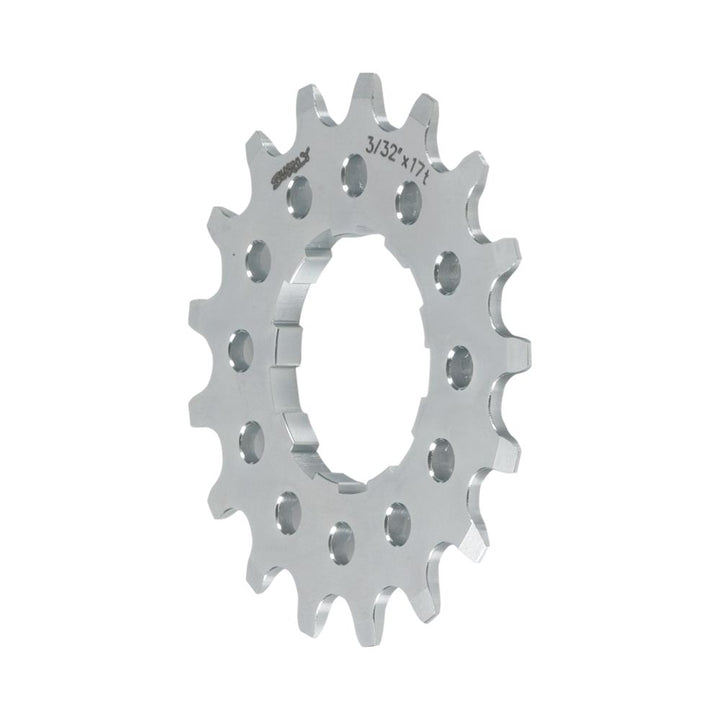

Our cassette-type cogs are designed to fit on standard Shimano compatible freehub bodies. These cogs have a tall tooth profile that is essential for preventing chain skip from the extra torque a singlespeed drivetrain encounters. In addition to being a stellar SS cog, the cog base width (where it contacts the freehub body) is 4.35mm, so you can stack a few of them up and use a 9-speed shifter for a simplified multi-speed drivetrain. This width also prevents it from ruining the freehub body as a result of digging grooves into it like skinny stamped cogs have a tendency to do. Surly cogs are machined from SCM415 CroMoly steel, then heat-treated for toughness and chrome-plated for surface hardening and enhanced chain lubricity. Our cogs will work with 6-9-speed 3/32" chains, although we recommend the inherently updated quality of an 8 or 9 speed chain. They are also available in every increment from 13-22t, so you can select that perfect gear.

Singlespeed Gearing 101

Singlespeed Drivetrains

Cassette Cog Instructions
