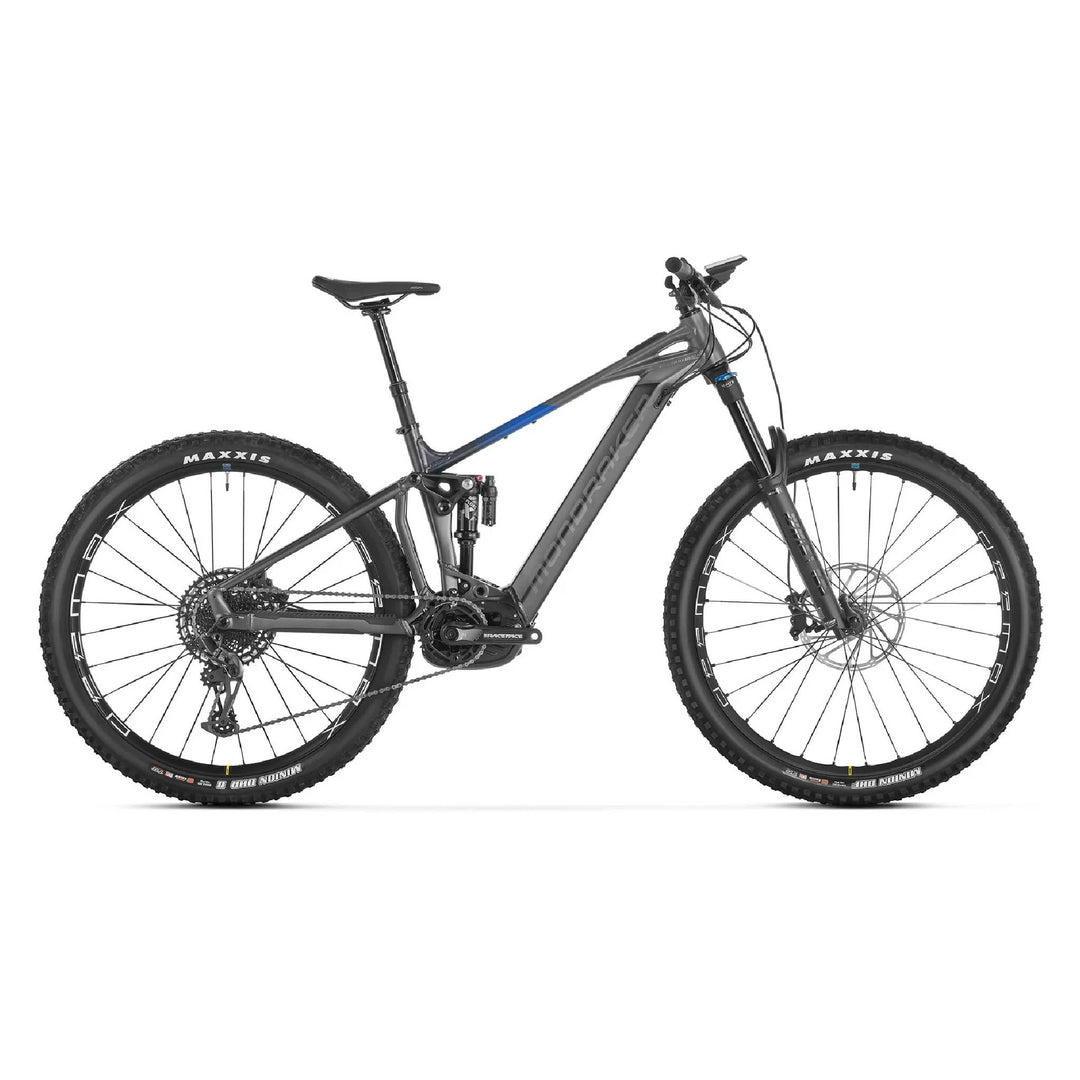

2024 Mondraker Crafty R Large - Grey/Blue
FRAME
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
SIZES
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
REAR SHOCK
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
SHOCK SETTINGS
Medium compression, medium rebound, air volume spacer 0.2
FORK
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
HEADSET
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
STEM
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
HANDLEBAR
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
GRIPS
Onoff Desert, 1lock-on, 135mm
SEATPOST
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
SADDLE
FIZIK Terra Aidon X5 145mm
FRONT BRAKE
Sram DB8, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
REAR BRAKE
Sram DB8, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
BRAKE LEVER
Sram DB8, tool reach adjust, lever pivot bushings
RIMS
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
SPOKES
Mavic J-bend double butted, contactless lacing
FRONT HUB
Mavic, Boost 15x110mm, IS 6 bolts
REAR HUB
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
FRONT TYRE
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
REAR TYRE
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
CRANKSET
Race Face Aeffect ebike, 165mm
RINGS
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
CHAIN
Sram SX Eagle, 12s, Powerlock
REAR DERAILLEUR
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
SHIFT LEVERS
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
CASSETTE
Sram PG-1210, 11-50T, 12s
DERAILLEUR HANGER
Mondraker M068
WEIGHT
25.9 kg
DISPLAY
Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
MOTOR
Bosch Performance Line CX Cruise (34km/h) GEN4 SMART SYSTEM
BATTERY
Bosch Powertube 750Wh
