2025 Rail+ 8 Gen 5 - Medium
- Call for availability - 07 575 2189
- In Stock
- Backordered, shipping soon

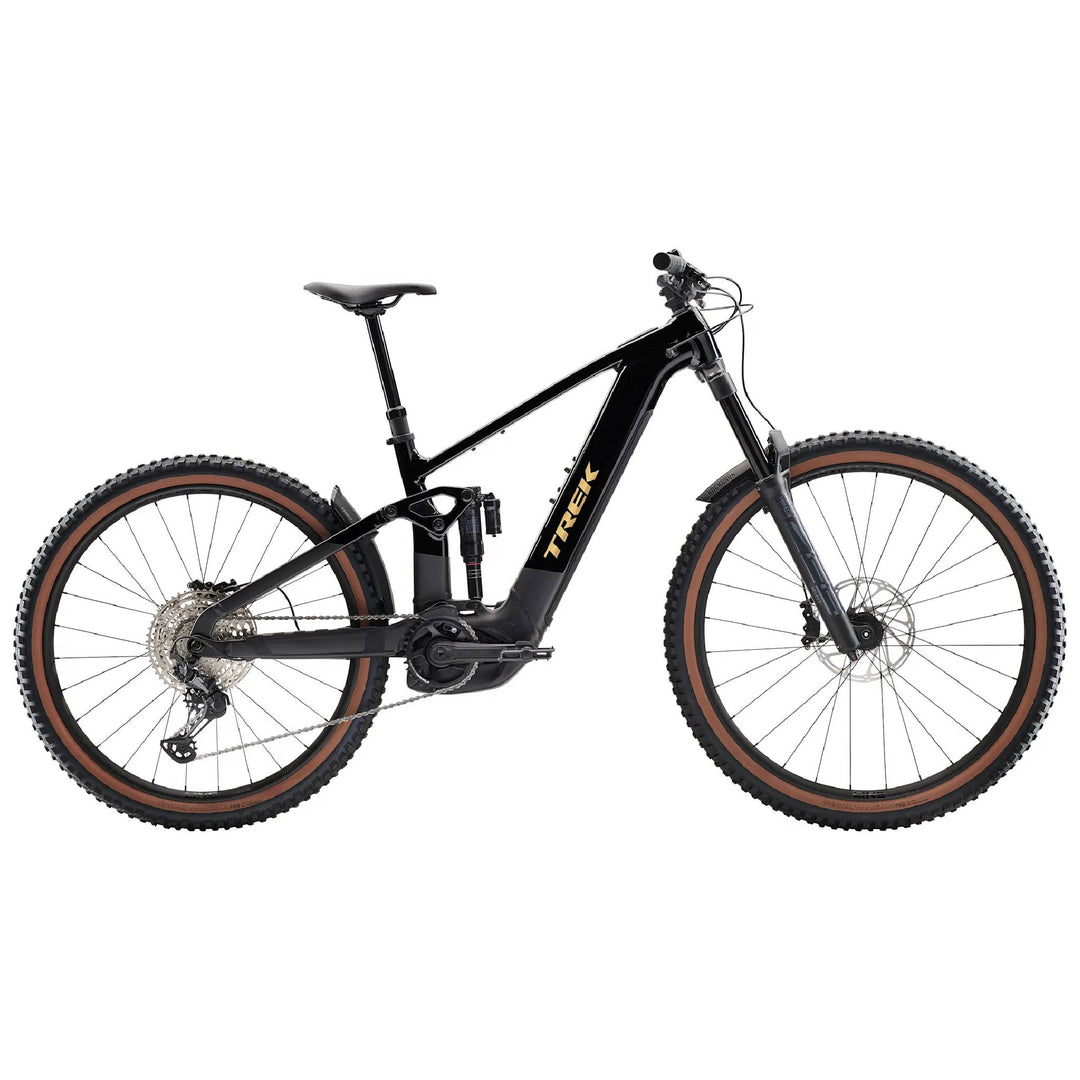

The Rail+ 8 is an alloy enduro e-bike that packs in what you want most for big adventures. It comes equipped with a Bosch Performance CX drive system with full power for crushing laps and big climbs while its massive battery takes you the distance. 160 mm of front and rear travel make Rail+ super capable in the rough and rowdy, and adjustable geometry lets you customize it for how and where you ride.
Frameset
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel |
|---|---|
| Fork | RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel |
| Shock | RockShox Super Deluxe Select+ RT, 205mm x 65mm |
| Max compatible fork travel | 180mm |
| *Wheel front |
Size: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" |
|---|---|
|
Size: M, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
|
| Wheel rear | Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 27.5" |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S, M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" |
|
Size: M, L, XL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 27.5x2.60", Fork: See manufacturer |
| Charger | Bosch standard 4A, 230V, smart system |
|---|---|
| Controller | Bosch System Controller BRC3100, smart system |
| Motor | Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| Shifter | Shimano SLX M7100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Crank arm | E*thirteen E*spec Plus, 160 mm length |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 36T |
| Saddle | Bontrager Verse P3, steel rails |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length |
|
Size: M, L, XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
|
Size: L, XL Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length |
|
| Handlebar | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | SRAM DB 8 4-piston hydraulic disc |
| Brake rotor | SRAM CentreLine, 6-bolt, round-edge, 200 mm |
| Rotor size | Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer |
| Mudguard | Trek 27.5" custom fender |
|---|
| Weight | M - 25.08 kg / 55.3 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
