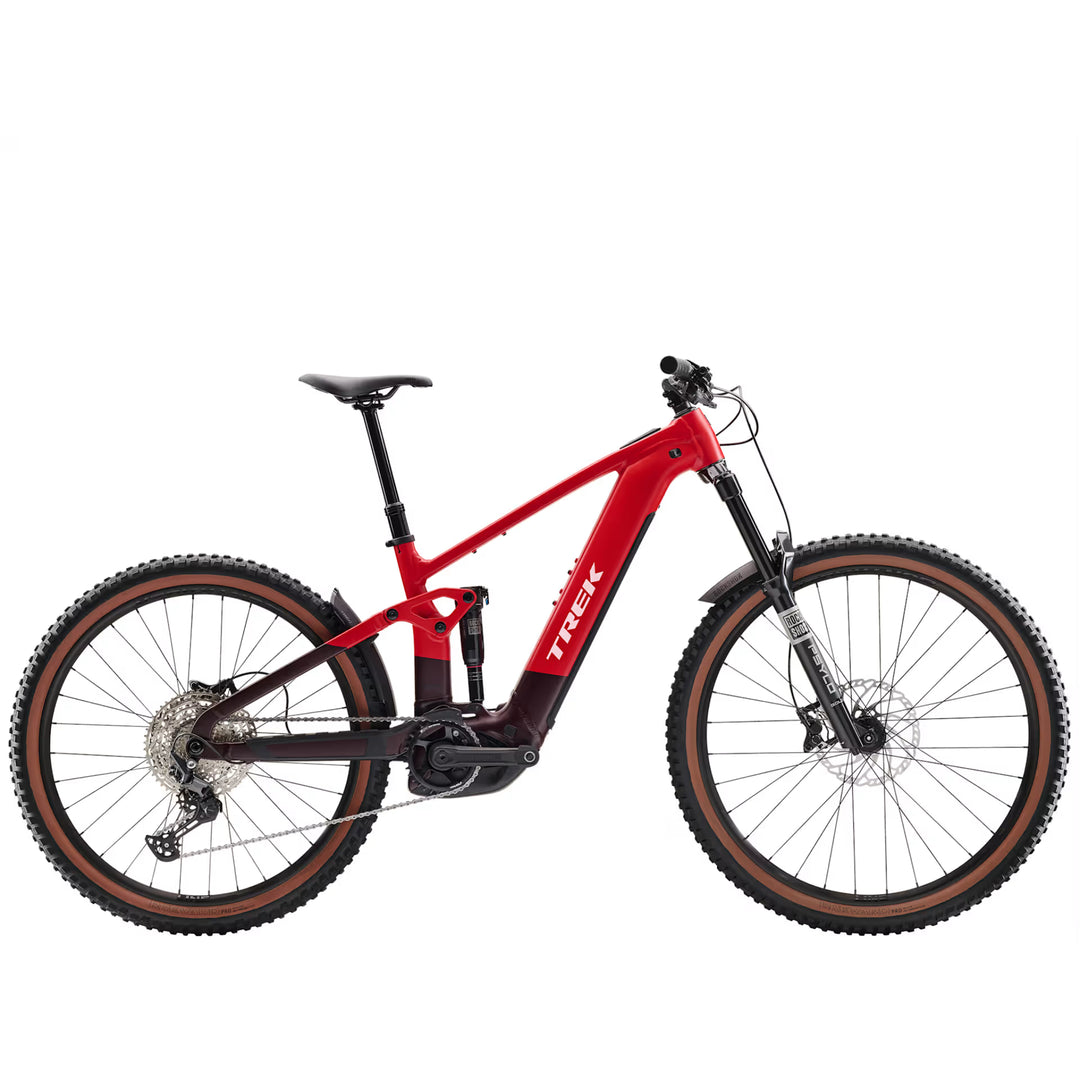

Trek Rail+ 5 Gen 5 - Small - Red
- Call for availability - 07 575 2189
- Low stock - 1 item left
- Backordered, shipping soon
The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything.
- Frame
-
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, Boost148, 12 mm thru axle, 160 mm travel
- Fork
-
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel
- Shock
-
RockShox Deluxe Select+ RT, 205 mm x 65mm
- Hub front
-
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Hub rear
-
Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru axle
- Skewer rear
- Rim
-
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
- *Tyre
-
Size: S, M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"Size: S, M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"Size: M, L, XL
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"Size: M, L, XL
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" - Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
- Max tyre size
- Frame: 27.5x2.60", Fork: See manufacturer
- Charger
-
Bosch standard 2A, 230V, smart system
- Controller
-
Bosch System Controller BRC3100, smart system
- Motor
-
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
- Shifter
-
Shimano Deore M6100, 12-speed
- Rear derailleur
-
Shimano Deore M6100, long cage
- Crank arm
-
E*thirteen E*spec Plus, 160 mm length
- Cassette
-
Shimano Deore M6100, 10-51, 12-speed
- Chain
-
Shimano Deore M6100, 12-speed
- Pedal
-
VP-536 nylon platform
- Max. chainring size
- 1x: 36T
- Saddle
-
Bontrager Verse P3, steel rails
- *Seatpost
-
Size: S
TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mmSize: M, L, XL
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm - Handlebar
-
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
- Grips
-
Bontrager XR Trail Comp, nylon lock-on
- Stem
-
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
- Head set
- Brake
-
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
- Brake rotor
-
Shimano RT66, 6-bolt, 203 mm
- Rotor size
- Max brake rotor sizes – Frame: 220 mm, Fork: see fork manufacturer
- Mudguard
-
Trek 27.5" custom fender
- Weight
- M – 25.28 kg/55.74 lb (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
