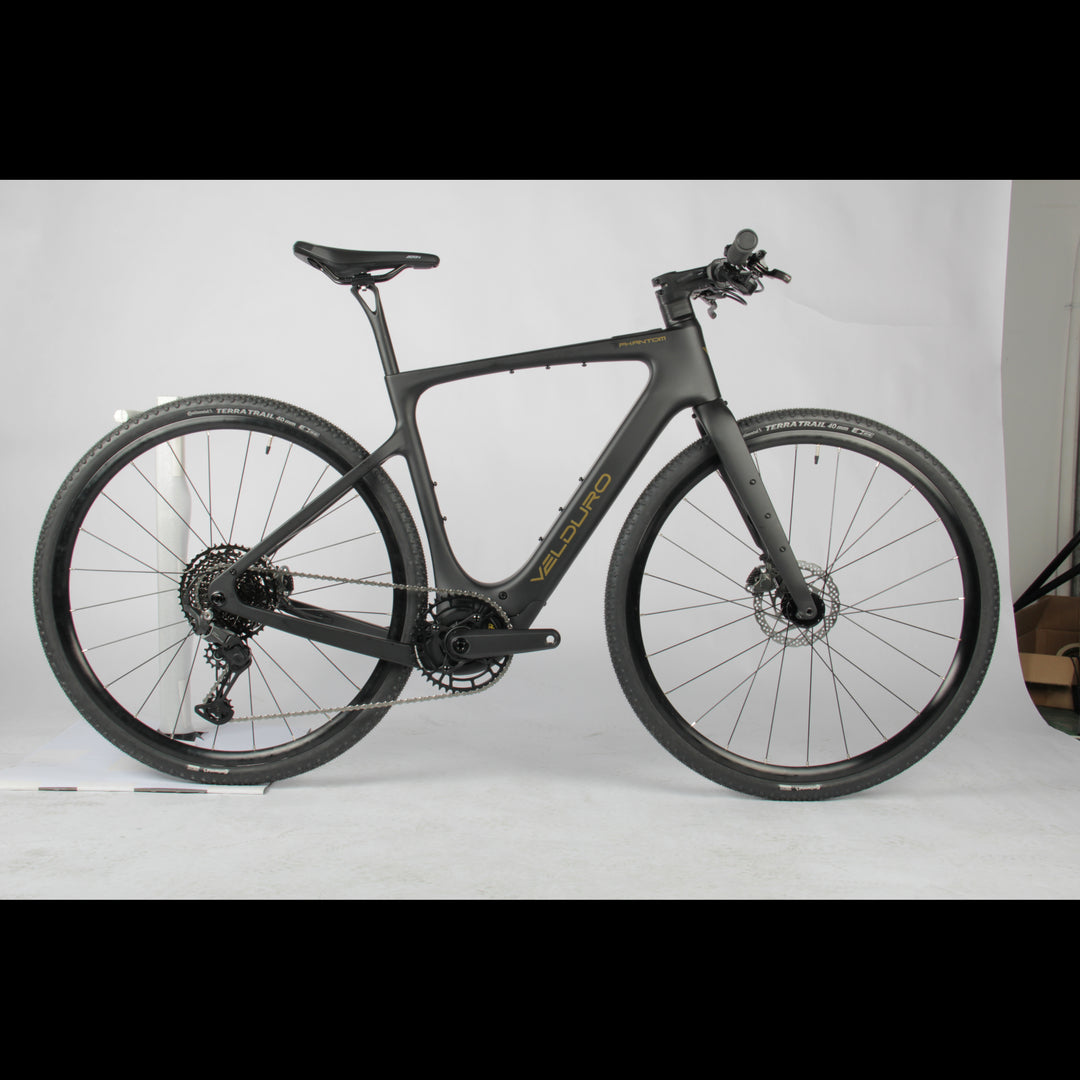

Velduro Phantom S

Designed to bridge the gap between rugged gravel exploration and lightning-fast commutes, this full-carbon gravel e-bike combines ultra-clean integration with exceptional versatility. Powered by the incredibly smooth DJI Avinox M1 drive system, it delivers high-torque assistance that flattens out steep gravel climbs while maintaining the agile handling of a traditional gravel machine. With multiple mounting points for racks and gear, massive tyre clearance up to 50C, and premium componentry, it's a lightweight powerhouse built to push your boundaries.

Specifications

E-Bike System

• Motor: DJI Avinox M1 250W, 105Nm torque (Boost mode to 1000W / 120Nm)

• Battery: DJI Avinox 36V, 600Wh integrated battery

• Display: DJI Avinox 2-inch OLED display

• Controllers: R&L Wireless Controllers

• Charger: Avinox Fast Charger 4A, 168W

Frameset & Fork

• Frame: Carbon Fibre Gravel Frame, integrated battery, inner cable routing, 12x142mm spacing, 8 mounting points, rack options, clearance for up to 50C tyres

• Fork: Carbon Gravel Fork, 6 mounting points, 12x100mm spacing, 50mm offset

• Headset: Token TK155SP $\Phi$ 28.6

• Rear Axle: 12x142mm alloy, Black

Drivetrain & Shifting

• Shift Lever: Shimano Cues SL-U6000-11S (11-Speed)

• Rear Derailleur: Shimano Cues RD-U6000-11S

• Crankset: Avinox SL Crank, 165mm length

• Chainwheel: Velduro alloy 44T, 3mm inward offset

• Cassette: Shimano Cues LG400-11S, 11-45T

• Chain: Shimano LG500 Linkglide BLK

Brakes & Rotors

• Brakes: SRAM S300 hydraulic disc brakes

• Rotors: SRAM Centerline 160mm 6-bolt discs (Front and Rear)

Wheels & Tyres

• Rims: Velduro alloy 700C BLK

• Front Hub: Velduro hub 13G x 24H BLK

• Rear Hub: Velduro hub 13G x 24H BLK HG

• Spokes & Nipples: Velduro 14G spokes BLK / Velduro 13G 14mm nipples BLK

• Tyres: Continental Terra Trail, 700C x 45C

Cockpit & Components

• Saddle: Fizik Terra Aidon X5

• Seatpost: Velduro alloy, 27.2mm diameter, 350mm length

• Handlebar: Velduro alloy MTB, 6° sweep, 680mm width

• Stem: Velduro Alloy road stem

  • Size S: 60mm | Size M: 75mm | Size L: 90mm | Size XL: 105mm

• Grips: Velo MTB Comfort Black

Sizing, Weight & Geometry

• Base Weight: 16 kg

• Load Capacity: Maximum total weight limit of 120 kg

• Compliance Certification: EN15194

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without notice.
