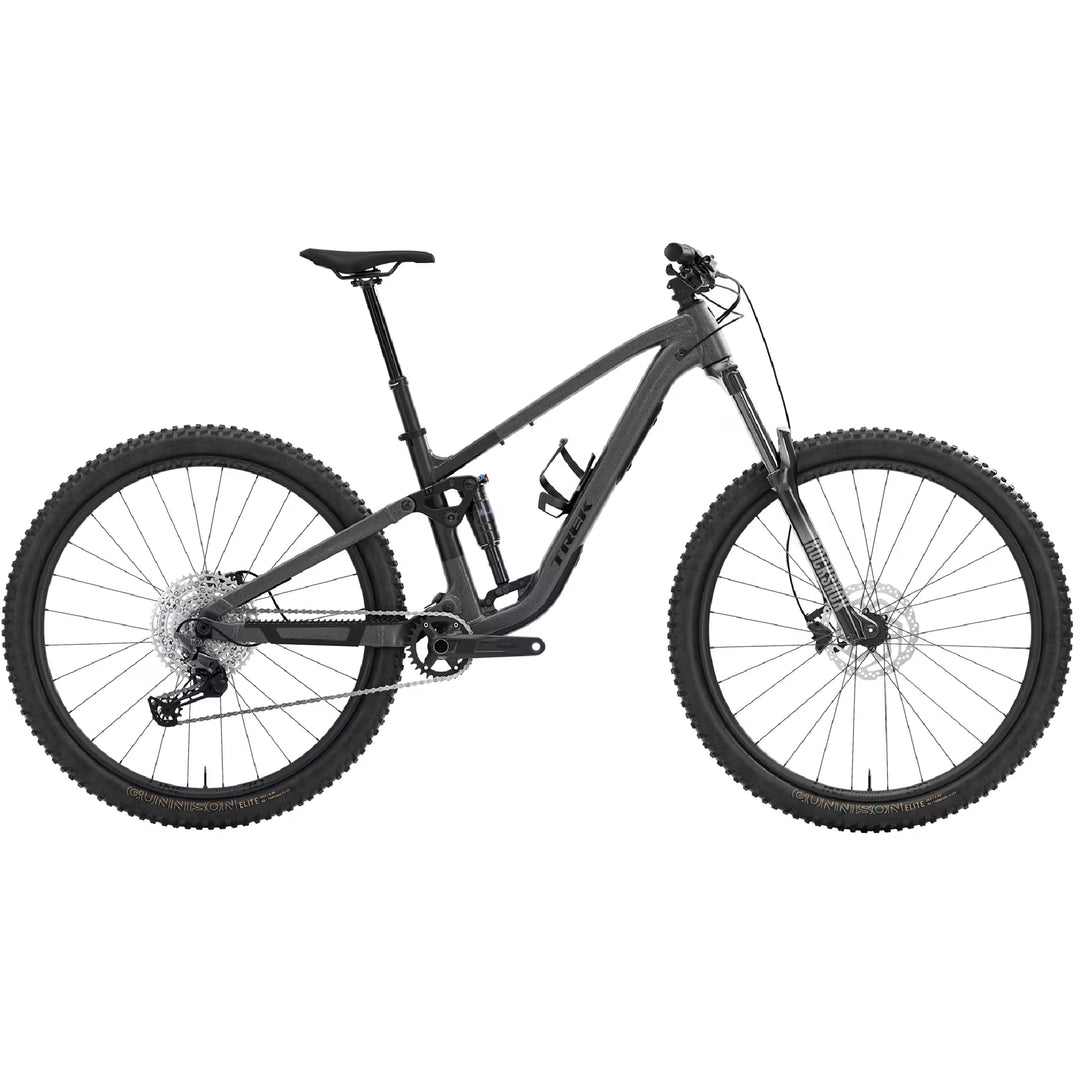

2026 Trek Fuel EX5 Gen 7 - Black Splatter - Large
- Call for availability - 07 575 2189
- Low stock - 1 item left
- Backordered, shipping soon
The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything.
Frameset
| *Mainframe |
Size: S, XL, L, M
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
|
|---|---|
| *Fork |
Size: S, XL, L, M
Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
|
| *Shock |
Size: S, XL, L, M
X-Fusion Pro 2, 2-position damper, 205 mm x 60mm
|
Wheels
| *Front Hub |
Size: S, XL, L, M
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
|
|---|---|
| *Rear Hub |
Size: S, XL, L, M
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
|
| *Rear Skewer | Size: S, XL, L, MBontrager Switch thru-axle, removable lever |
| *Rim |
Size: S, XL, L, M
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
|
|
Size: S, XL, L, M
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
|
|
| *Tire |
Size: S
Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"
|
| Size: S, XL, L, MBontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" | |
| *Tire Part |
Size: S, XL, L, M
Bontrager TLR sealant, 180 ml/6 oz
|
| *Rim Strip | Size: S, XL, L, MBontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
Drivetrain
| *Shifter |
Size: S, XL, L, M
Shimano Deore M6100, 12-speed
|
|---|---|
| *Rear Derailleur |
Size: S, XL, L, M
Shimano Deore M6100, long cage
|
| *Crank |
Size: S, XL, L, M
Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
|
| *Bottom Bracket |
Size: S, XL, L, M
Shimano BB-MT501 BSA
|
| *Cassette |
Size: S, XL, L, M
Shimano Deore M6100, 10-51, 12-speed
|
| *Chain |
Size: S, XL, L, M
Shimano Deore M6100, 12-speed
|
| Max. chainring size | Max: 34T (oval – 32T) Min: 30T (oval – 32T) |
Components
| *Saddle | Size: S, XL, L, MBontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost |
Size: S
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm
|
|
Size: XL, L, M
TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm
|
|
| *Handlebar |
Size: S, XL, L, M
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
|
| *Grips | Size: S, XL, L, MTrek Line Comp, nylon lock-on |
| *Stem |
Size: S, XL, L, M
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
|
| *Headset | Size: S, XL, L, MFSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| *Brake |
Size: S, XL, L, M
Shimano hydraulic disc, MT201 lever, MT200 calliper
|
| *Brake Rotor |
Size: S, XL, L, M
Shimano RT10, CenterLock, 180 mm
|
| Rotor size | Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer |
Weight
| Weight | M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
