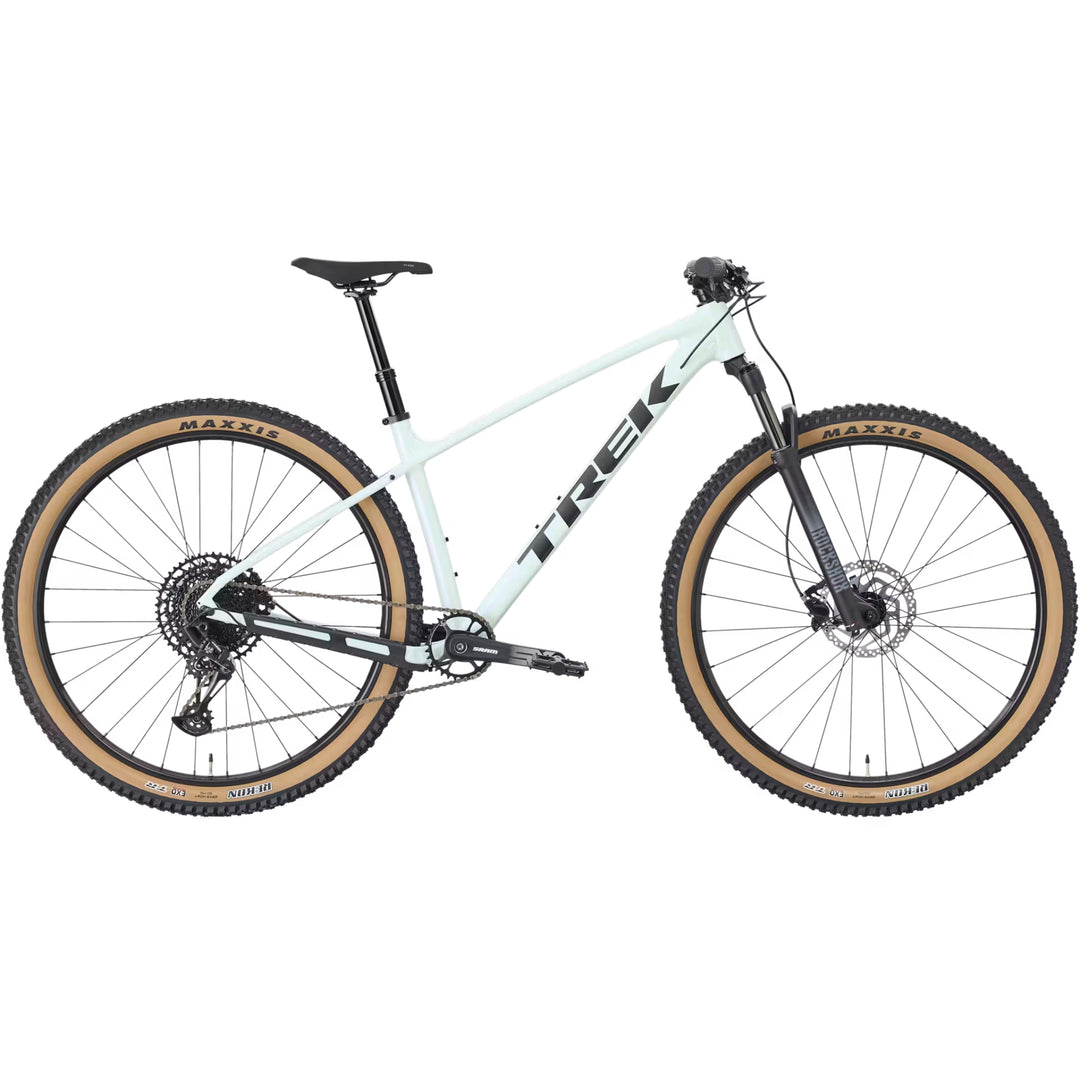

Trek Marlin 7 Gen 3 - ML - Magic Mint
- Call for availability - 07 575 2189
- Low stock - 1 item left
- Backordered, shipping soon
The Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It finds the perfect balance between price and performance with a RockShox suspension fork that makes quick work of rocks and bumps in your path, and loads of gears from the SRAM NX Eagle 12-speed drivetrain.
Frameset
| *Frame |
Size: XS
Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
|
|---|---|
|
Size: ML , M , L , S , XL
Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew
|
|
| *Fork |
Size: XS , S
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
|
|
Size: ML , M , L , XL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
|
Wheels
| *Front Hub |
Size: ML , M , XS , L , S , XL
Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
|
|---|---|
| *Rear Hub |
Size: ML , M , XS , L , S , XL
Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
|
| *Rear Skewer | Size: ML , M , XS , L , S , XL173x5 mm QR |
| *Rim |
Size: ML , M , XS , L , S , XL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
|
|
Size: ML , M , L , XL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
|
|
| *Tire |
Size: XS , S
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.40''
|
|
Size: ML , M , L , XL
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40''
|
|
| *Rim Strip |
Size: ML , M , XS , L , S , XL
Bontrager TLR
|
Drivetrain
| *Shifter |
Size: ML , M , XS , L , S , XL
SRAM SX Eagle, 12-speed
|
|---|---|
| *Rear Derailleur |
Size: ML , M , XS , L , S , XL
SRAM NX Eagle, 12-speed
|
| *Crank |
Size: M , XS , S
SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
|
|
Size: ML , L , XL
SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
|
|
| *Bottom Bracket |
Size: ML , M , XS , L , S , XL
Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
|
| *Cassette |
Size: ML , M , XS , L , S , XL
SRAM PG-1210 Eagle, 11-50, 12-speed
|
| *Chain |
Size: ML , M , XS , L , S , XL
SRAM SX Eagle, 12-speed
|
| *Pedal | Size: ML , M , XS , L , S , XLVP-536 nylon platform |
Components
| *Saddle | Size: ML , M , XS , L , S , XLBontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost |
Size: XS , S
TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length
|
|
Size: M
TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length
|
|
|
Size: ML , L
TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length
|
|
|
Size: XL
TranzX JD-YSI34, 170 mm travel, internal routing, 34.9 mm, 500 mm length
|
|
| *Handlebar |
Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
|
|
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
|
|
|
Size: ML , M , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
|
|
| *Grips | Size: ML , M , XS , L , S , XLTrek Line Comp, nylon lock-on |
| *Stem |
Size: XS , S
Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
|
| Size: ML , M , LBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length | |
| Size: XLBontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length | |
| *Headset |
Size: ML , M , XS , L , S , XL
Semi-integrated, 1-1/8"
|
| *Brake |
Size: ML , M , L , XL
Shimano MT200 hydraulic disc
|
| *Brake Rotor |
Size: ML , M , XS , L , S , XL
Shimano RT26, 6-bolt, 160 mm
|
|
Size: ML , M , L , XL
Shimano RT26, 6-bolt, 180 mm
|
|
| *Brake Set |
Size: ML , M , XS , L , S , XL
Shimano MT200 hydraulic disc
|
Weight
| Weight | M - 14.15 kg / 31.2 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
