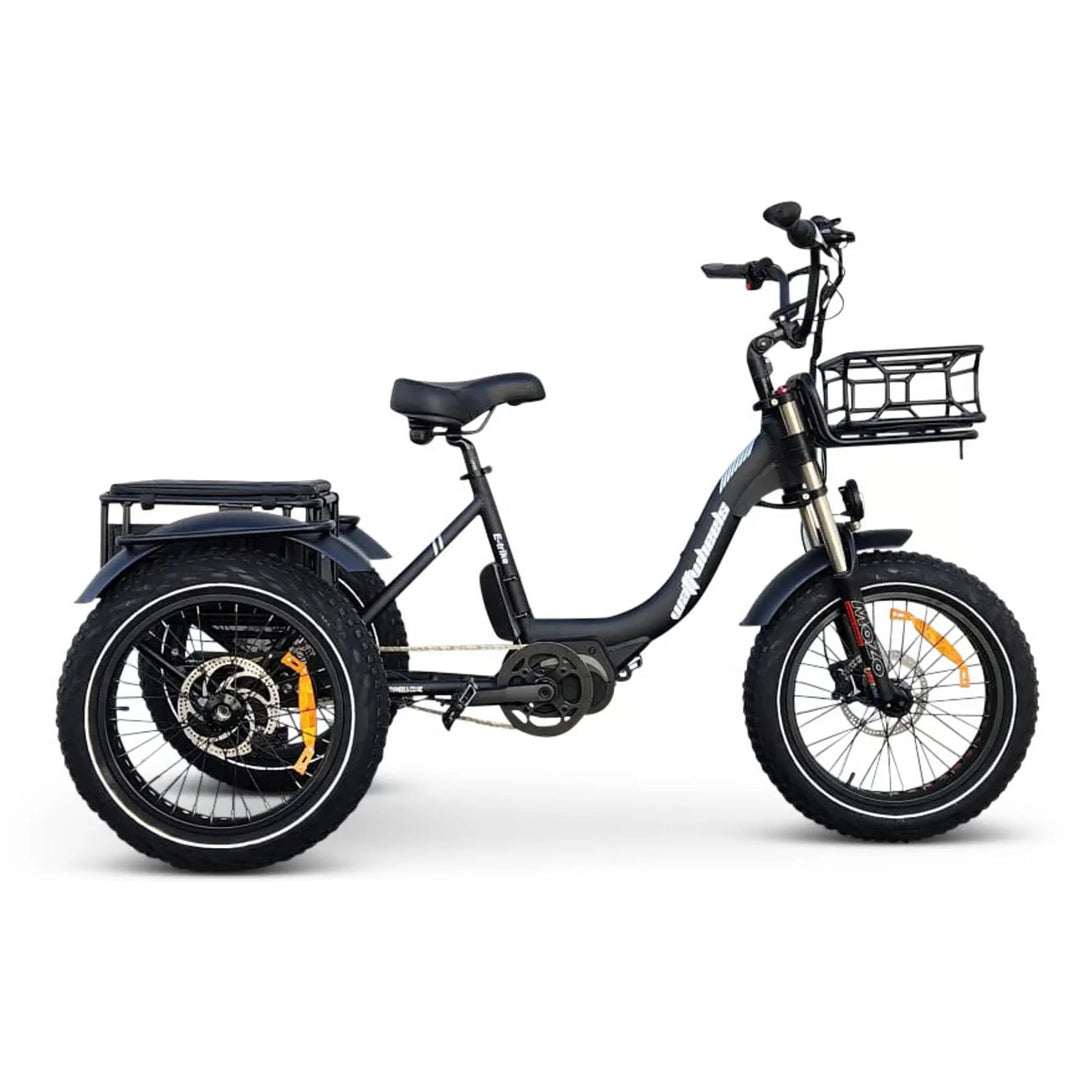

Wattwheels Trike XT

The Wattwheels Trike XT is a high-capacity, heavy-duty electric trike specifically engineered for larger riders, extended rail-trail touring, and light off-road paths. Built around a robust 6061 alloy step-through frame with an integrated rear differential and wide 20x4.0" fat tires, it delivers superior traction and stability across uneven terrain. Driven by a high-torque Ananda M100 mid-drive motor with a smooth torque sensor and a 7-speed Shimano Nexus internal hub, the Trike XT offers the option to run dual batteries (extending range up to double), hydraulic disc brakes with a parking lock feature, and an adjustable, retractable cockpit layout.

Specifications

E-System, Battery & Dual-Power Capability

• Motor: Ananda M100 48V mid-drive motor equipped with a precise torque sensor.

• Battery System: 48V 10.4Ah (499Wh) Samsung Li-Ion battery (Single charge range up to ~40 km).

• Dual Battery Option: Secondary battery expansion slot available (+$899 NZD) to double overall range.

• Speed & Throttle: Assisted speed up to 30 km/h; includes a thumb throttle for full electric drive mode.

• Display: Ananda D16 easy-to-read handlebar display screen.

• Charger: Sans 48V 2A Smart Charger.

Drivetrain & Internal Gear Hub (Shimano Nexus 7-Speed)

• Internal Hub: Shimano Nexus 7-speed internal gear hub integrated with a heavy-duty rear differential.

• Shifter: Shimano RevoShift 7-speed twist shifter.

• Crankset: Alloy 44T chainring with 170mm crank arms.

• Chain: KMC 7-speed heavy-duty chain.

Brakes & Parking Security

• Braking System: High-performance hydraulic disc brakes (Front and Rear).

• Parking Brake: Integrated park-brake locking mechanism on brake levers to secure the trike on inclines and loading areas.

Frame, Suspension & Cockpit Architecture

• Frame: 16-inch 6061 Alloy low-step frame with built-in footrest platforms. Features a low 45cm step-through height for effortless mounting.

• Fork: Front suspension fork with 60mm travel.

• Stem: Retractable stem mechanism allowing easy fore/aft handlebar reach adjustment for the rider.

• Handlebars & Grips: 74.5cm width handlebars with Ergo Velo 140mm lock-on grips.

• Seatpost & Saddle: 31.6mm alloy seatpost carrying a large memory foam comfort saddle (Optional Suntour NCX suspension seatpost available separately).

Wheels, Fat Tyres & Stability

• Rim & Hubs: Heavy-duty alloy trike wheels with sealed bearing hubs and rear differential integration.

• Tyres: High-volume CST MTB fat bike tyres (20" x 4.0" Front and Rear) for enhanced ride compliance and sand/gravel traction.

Dimensions, Capacity & Warranty

Physical Measurements & Geometry

• Total Length: 180cm – 185cm

• Overall Width: 78cm – 79cm

• Handlebar Height Adjustment: 117cm – 121.5cm

• Seat Height Range: 85.5cm – 103.5cm

• Step-Through Height: 45cm

• Handlebar to Seat Distance: 65cm – 69cm

Weight Ratings & Limits

• Net Weight: 46 kg (includes 4.0 kg battery).

• Maximum Weight Capacity: 130 kg total combined limit (rider + trike + cargo).

Available Colorways & Warranty Support

• Available Colors: Camo Green, Matt Blue, Gloss Red, Matt Black.

• Comprehensive Warranty Coverage:

  • 3 Years: Frame structure

  • 2 Years: Motor, Battery, and Display screen

  • 12 Months: Mechanical components
