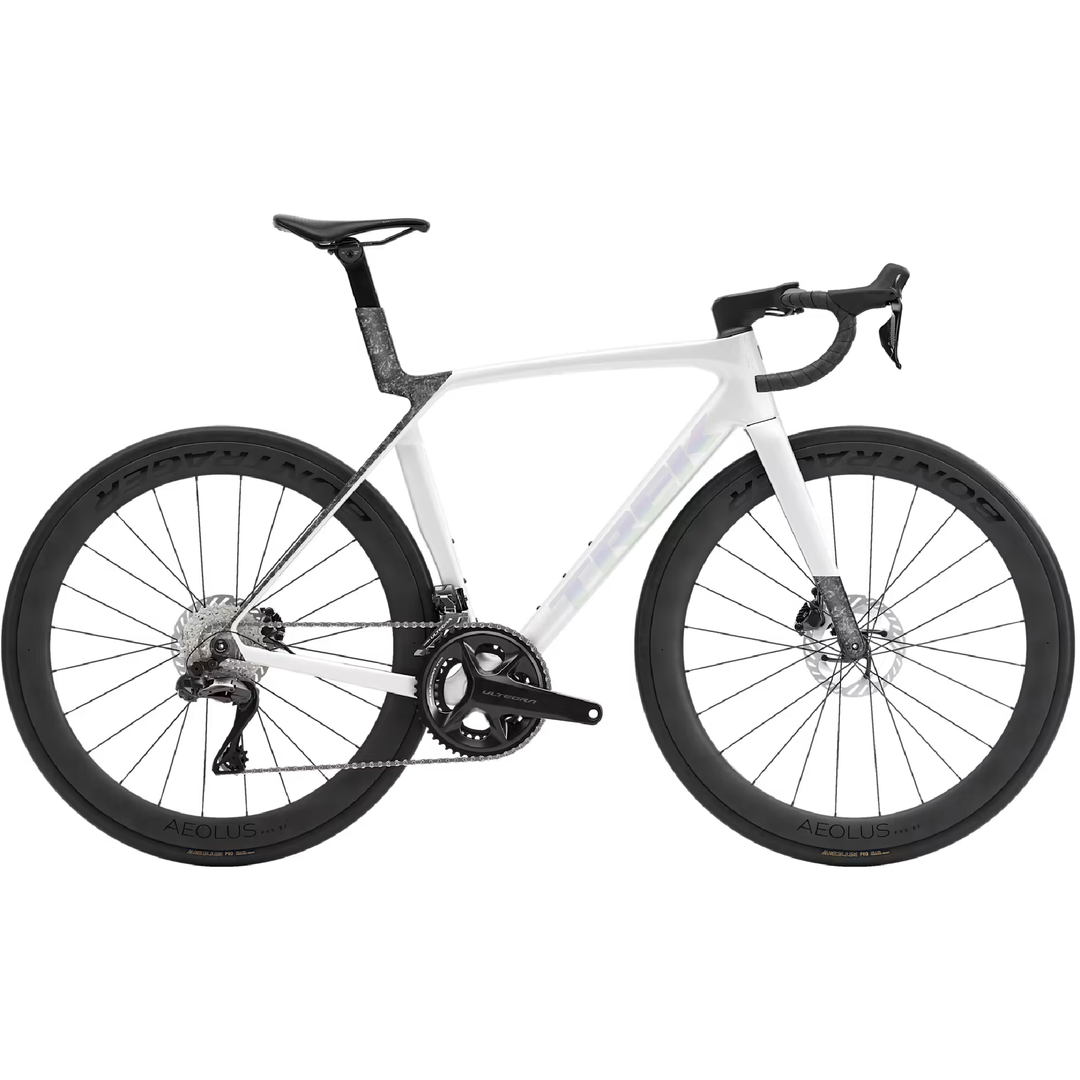

Trek Madone SL 7 - White/Dark Smoke

The Madone SL 7 Gen 8 is a race-ready road bike built to give you the best of every world. It beautifully balances price and performance with a light 500 Series OCLV Carbon frame for soaring climbs, Full System Foil aerodynamic geometry to slice through the wind, and IsoFlow seat tube technology for race-day comfort. You get a Shimano Ultegra Di2 electronic wireless drivetrain for lighting-fast shifts, plus deep-section carbon wheels and carbon handlebars for premium, lightweight performance.

Specifications

Frameset & Mechanical

• Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube compliance, RCS Headset System, electronic or mechanical internal routing, removable aero chain keeper, T47 BB, flat-mount disc, UDH (Universal Derailleur Hanger), 142x12mm thru-axle.

• Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100mm chamfered thru-axle.

Drivetrain & Shifting (Electronic)

• Shifter/Brake Levers: Shimano Ultegra R8170 Di2, 12-Speed electronic wireless

• Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down-swing

• Rear Derailleur: Shimano Ultegra R8150 Di2, 34T max cog capacity

• Cassette: Shimano Ultegra R8101, 11-34T, 12-Speed

• Chain: Shimano Ultegra/XT M8100, 12-Speed

• Bottom Bracket: Praxis, T47 threaded, internal bearings

• Crankset Configurations by Size (Shimano Ultegra R8100, 50/34T compact rings):

  • Sizes XS, S: 165mm arm length

  • Sizes M, ML: 170mm arm length

  • Sizes L, XL: 172.5mm arm length

• Max Chainring Limits: 1x: 54T | 2x: 56/43T

Brakes & Rotors

• Brakes: Shimano Ultegra hydraulic disc

• Rotors: Shimano CL800, CentreLock, 160mm (Front and Rear)

• Rotor Size Limits: Maximum 180mm front / 160mm rear rotor compatibility

Wheels & Tyres

• Front Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready, 51mm rim depth, 100x12mm thru-axle

• Rear Wheel: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless-Ready, 51mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru-axle

• Thru-Axles: Bontrager Switch chamfered thru-axles (rear features removable lever)

• Tyres: Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28mm

• Included Extras: Bontrager TLR sealant (180 ml/6 oz)

• Max Tyre Size: 32mm (as measured physically on the rim; see manual for clearance details)

Cockpit & Ergonomics

• Saddle: Bontrager Aeolus Elite, austenite rails, 145mm width

• Seatpost: Madone aero carbon integration seatpost, 0mm offset, short profile length

• Handlebar Tape: Trek EcoTack high-grip tape

• Handlebars (Bontrager Aero Pro, OCLV Carbon, 31.8mm clamp, Di2 routing, 80mm reach, 124mm drop):

  • Size XS: 35cm hoods (control width) / 38cm total drop width

  • Size S: 37cm hoods (control width) / 40cm total drop width

  • Sizes M, ML, L: 39cm hoods (control width) / 42cm total drop width

  • Size XL: 41cm hoods (control width) / 44cm total drop width

• Stem Geometry by Size (Trek RCS Pro, -7-degree rise):

  • Size XS: 80mm length

  • Sizes S, M: 90mm length

  • Sizes ML, L: 100mm length

  • Size XL: 110mm length

Sizing, Weight & Extras

• Sizes Available: XS, S, M, ML, L, XL

• Included Electronics: Shimano BT-DN300 internal battery pack (charging cable sold separately)

• Bike Weight: 7.87 kg / 17.36 lbs (Size Medium-Large, setup tubeless with TLR sealant, no inner tubes)

• Weight Limit: Maximum total weight limit of 125 kg / 275 lbs (combined weight of bicycle, rider, and gear cargo)

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without notice.
