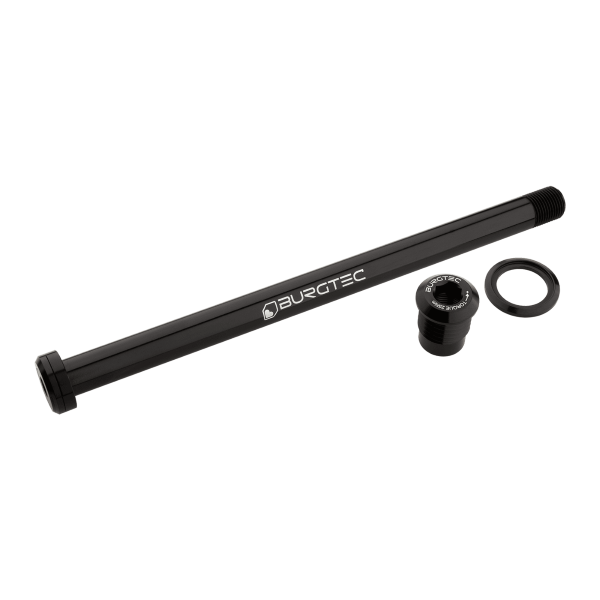

Name: Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle
Brand: Burgtec
SKU: BT-10161
Price: 99.99 NZD
Availability: InStock

$99.99

Tax included. Shipping calculated at checkout.

Stock Item

Default Title

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Race Red

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Deep Blue

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Purple Rain

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Kash Bronze

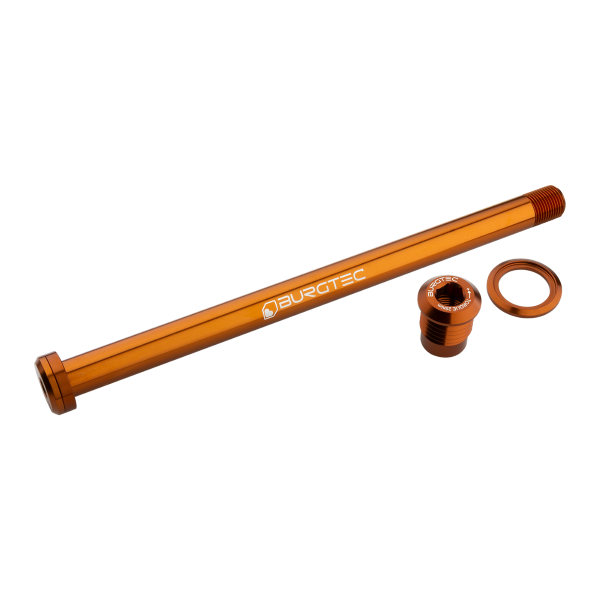

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Iron Bro Orange

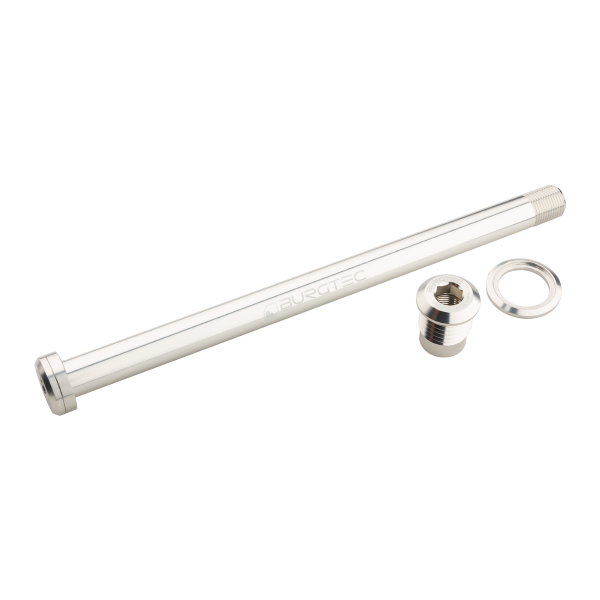

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Rhodium Silver

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Burgtec Bullion Gold

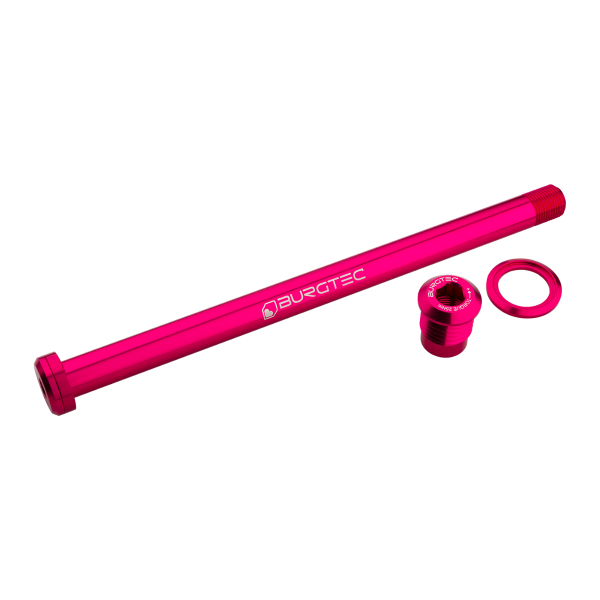

Burgtec 180mm x 12mm 1.00mm Pitch Rear Axle - Toxic Barbie

Low stock - 2 items left
Backordered, shipping soon

Clean and Simple is always best. Leverless design for added security and clearance for when situations get tight. These super tough axles tighten up with a 6mm Allen key.

Constructed from 7075 Aluminium and made to the manufacturer’s exact specifications.

Fits:

Niner:

AIR 9 RDO V2
RKT 9 RDO V1
JET 9 RDO V2
RIP 9 RDO V3
AIR 9 (Alloy) V4
SIR 9 V3

Stanton:

All Current Stanton Bikes

Nukeproof:

2020 Reactor 275 & 290
2021 Reactor 275 & 290
2020 Mega 275 & 290

Cannondale:

2019/20/21 Habit Alloy & Carbon
2019/20 Jekyll Alloy & Carbon
2020/21 Moterra
2020/21 Habit Neo

Commencal:

We are fairly sure that all Commencal 148/Boost bikes use this axle. Before we get confirmation though, please double check the dimensions of your current axle.

Forbidden:

Druid
Dreadnaught

Airdrop:

Filter
Edit

Note: This axle is not compatible with Evil Bikes.

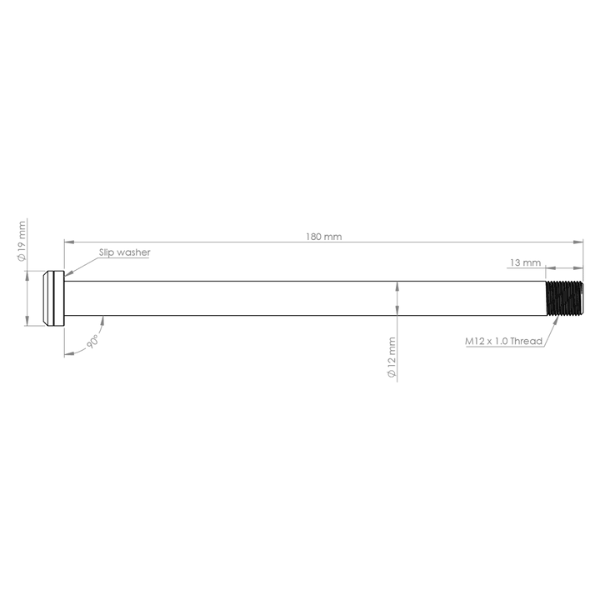

This axle is very common with a lot of bike brands, please check the dimensions below to see if it will fit yours.

Sram Part Number: #00.4318.005.028
