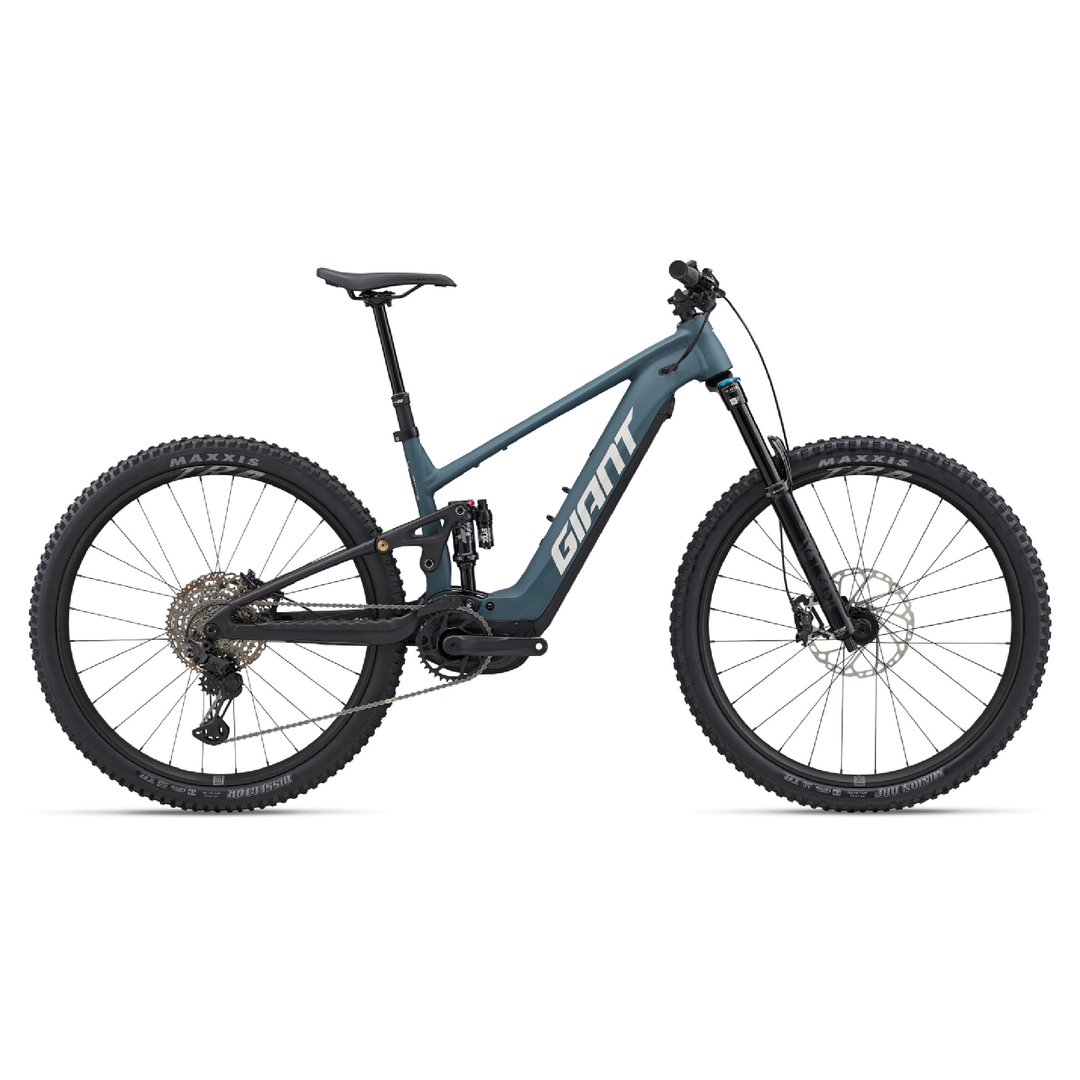

Giant Stance E+0 - Deep Lake/Black

The premium-tier Giant Stance E+ elevates your trail experience with a high-performance suspension setup, progressive trail geometry, and a serious boost in electronic power. Engineered around a durable ALUXX SL-grade aluminum frame, it features the upgraded FlexPoint linkage-driven suspension platform to deliver 140mm of active rear travel paired with a 150mm Fox 36 fork. Powered by Giant’s high-torque SyncDrive Pro 3X motor and the long-lasting EnergyPak Smart 800Wh integrated battery, this ultra-dynamic E-MTB charges up technical climbs and stays completely composed on steep, fast descents. Upgraded with elite Fox suspension, premium 4-piston Shimano Deore XT brakes, a custom Giant TRA2 tubeless wheelset, and an ultra-rugged Shimano LinkGlide 11-speed drivetrain, it offers maximum trail capability, control, and fun.

Specifications

E-System & Smart Technology

• Motor: Giant SyncDrive Pro 3X, lightweight 2.6 kg design, co-developed with Yamaha. Generates a massive 100Nm of torque and up to 800W of peak power with an 11% improvement in torque-to-weight ratio. Engineered to maintain powerful assist thresholds across a wide cadence range for sustained climbing support.

• Sensors: PedalPlus 6-Sensor technology for instant, intuitive motor engagement.

• Controller: Giant RideControl Dash 2 unit, managing Smart Assist automatic mode across 5 color-coded physical support levels.

• Display: Giant RideControl Dash 2 fully integrated, crisp, full-color LCD interface display screen.

• Battery: Giant EnergyPak Smart 800Wh high-capacity, down-tube integrated battery pack (Supports optional EnergyPak Plus 200Wh or 250Wh bottle-cage style range extenders).

• Charger: Giant EnergyPak 4A smart charger.

• Battery Lock Security: Integrated Torx 25 keyway structural lock cylinder built with an on-board safety torque limiter.

Frameset & Advanced Suspension Kinematics

• Frame: ALUXX SL-grade premium aluminum alloy chassis, 140mm rear wheel travel FlexPoint single-pivot linkage-driven suspension design. Features enhanced anti-squat geometry to minimize energy loss and improve pedaling efficiency. Built with Boost 148x12mm thru-axle interface, integrated KSA40 direct kickstand interface mount, 1.5 to 1.8 inch oversized tapered headset design (ZS62/ZS72), and Universal Derailleur Hanger (UDH) standard. 185x52.5mm trunnion-mount shock hardware.

• Fork: Fox 36 Rhythm Air suspension fork, 150mm travel, e-bike optimized chassis, premium Grip damper assembly, tapered alloy steerer tube, 110x15mm Boost thru-axle standard.

• Rear Shock: Fox Float X air shock, 185x52.5mm trunnion layout, high-volume reservoir, piggyback design with compression damping adjustment lever. E-bike optimized tuning.

  • Factory Setup Recommendation: 30% sag benchmark configuration (equivalent to exactly 15.75mm of shaft stroke compression).

Drivetrain & Heavy-Duty Shifting (Shimano LinkGlide 1x11)

• Shifters: Shimano Cues LinkGlide mechanical pod assembly.

• Rear Derailleur: Shimano Deore XT 11-speed, Shadow+ clutch design for elite chain retention and quiet trail operation.

• Cassette: Shimano Cues LinkGlide, 11-speed, ultra-wide-range 11-50T climbing ratio layout.

• Chain: Shimano LinkGlide high-durability, wear-resistant e-bike chain.

• Crankset: Premium forged aluminum crank arms, direct-mount heavy-duty steel 36T chainring.

• Chain Guide: MRP 1x HD top guide, chainstay e-Mount pattern, fully adjustable fitment accommodating 32T to 38T configurations.

• Drivetrain Tuning Limits: Maximum permissible direct-mount chainring clearance size: 38T.

Brakes & Elite Trail Control

• Braking System: Shimano Deore XT BR-M8120 premium high-power 4-piston hydraulic disc brake calipers.

• Brake Levers: Shimano Deore XT BL-M8100 ergonomic alloy hydraulic brake levers with tool-free reach adjust.

• Rotors: Heavy-duty steel disc rotors; 220mm oversized front / 203mm rear layout for maximum heat dissipation and ultimate stopping power.

Wheels, Hubs & High-Traction Tyres

• Rims: Giant TRA2 wheelset, fully tubeless-ready profile construction, wide 30mm internal rim structural width.

• Hubs: Giant E-Drive hubs, Center-Lock rotor interfaces, sealed cartridge bearings, high-performance 72T engagement system rated for up to 260Nm of e-bike torque. Boost spacing: 110x15mm front / 148x12mm rear thru-axle standards.

• Spokes: Sapim Race high-strength performance spokes.

• Front Tyre: Maxxis Minion DHF 29 x 2.50" WT (Wide Trail profile), foldable aramid bead, Tubeless Ready (TLR), protective EXO sidewall reinforcement, premium high-grip 3C MaxxTerra compound.

• Rear Tyre: Maxxis Dissector 29 x 2.40" WT (Wide Trail profile), foldable aramid bead, Tubeless Ready (TLR), heavier-duty protective EXO+ sidewall casing.

Cockpit & Finishing Kit

• Handlebars: Giant Connect TR35 aluminum trail handlebar, 35mm clamping interface zone, 20mm riser profile bend.

  • Width sizing breakdown: S: 760mm width | M, L, XL: 780mm width.

• Grips: Giant Tactal Pro single-lock-on ergonomic grips.

• Stem: Giant Contact SL 35 stem, 35mm bar bore clamping area.

• Seatpost: Giant Contact Switch AT travel-adjustable dropper seatpost. Features adjustable overall travel lengths matched directly across individual sizing brackets:

  • S: 110mm to 140mm internal travel range

  • M: 140mm to 170mm internal travel range

  • L / XL: 170mm to 200mm internal travel range

• Saddle: Giant Contact Ergo Trail saddle.

• Pedals: Large-surface platform pedals, high-grip 28-pin arrangement, polypropylene (PP) protective outer cage body, high-strength steel axle shafts.

Sizing, Colorways & Extras

• Available Frame Sizes: S, M, L, XL.

• Available Colorway: Deep Lake/Black dual-tone scheme.

• Included Extras: Full factory tubeless conversion kit (includes premium liquid tyre sealant, tubeless valves, tyre levers, comprehensive setup manual, and multi-tool hardware).

Please Note: The most precise method for determining a bike's overall build weight is to have it weighed directly on digital shop scales in your local bike workshop. Actual completed bicycle weight numbers inevitably vary depending on final frame sizing selections, specific paint finishes, internal frame protective coatings, and individual accessory outfitting choices. All Giant frames are engineered for best-in-class power-to-weight structural balancing.
