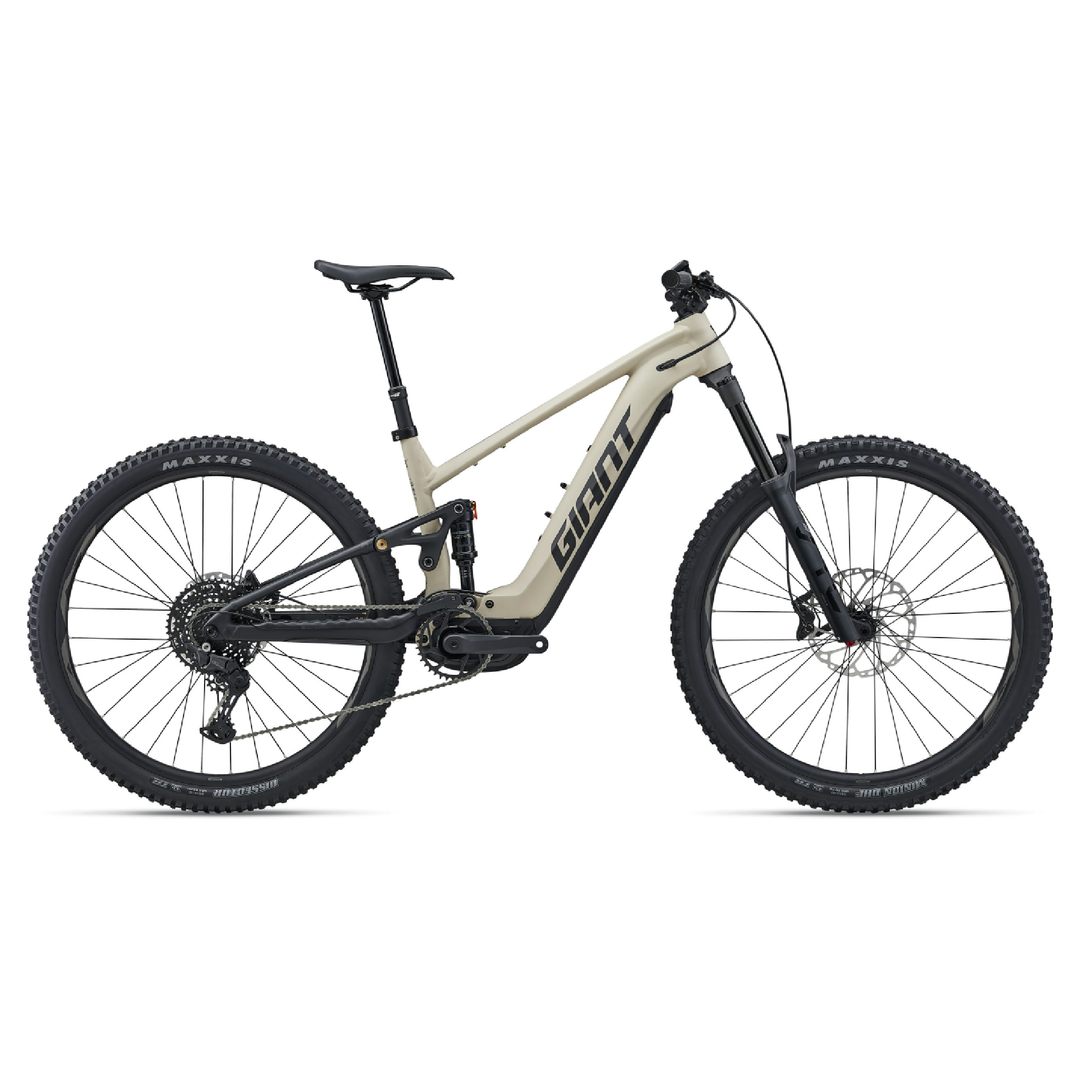

Giant Stance E+1 - Almond/Black

The Giant Stance E+ is a powerhouse full-suspension trail e-bike engineered to deliver massive dynamic power, aggressive capability, and total off-road trail confidence. Completely re-designed around Giant's next-generation E+ System, it pairs a premium ALUXX SL-grade aluminum frame with an upgraded FlexPoint linkage system delivering 140mm of active rear travel and a robust 150mm fork. Powered by the high-torque SyncDrive Pro 3X motor and an ultra-long-range EnergyPak 800Wh integrated battery pack, it serves up sustained, custom-tunable climbing support across steep, rugged terrain. Progressive geometry, ultra-durable Shimano LinkGlide shifting, and heavy-duty 4-piston hydraulic brakes make the Stance E+ the ultimate machine for conquering technical trails with precision and control.

Specifications

E-System & Smart Technology

• Motor: Giant SyncDrive Pro 3X, lightweight 2.6 kg design, co-developed with Yamaha. Delivers up to 100Nm of torque and 800W of peak power support with a fine-tuned, 11% improvement in torque-to-weight ratio. Fully optimized to sustain maximum assist thresholds across high-cadence pedaling windows.

• Sensors: PedalPlus 6-Sensor technology layout for near-instantaneous motor engagement.

• Controller: Giant RideControl Dash 2 unit, managing Smart Assist automatic mode across 5 color-coded physical support levels.

• Display: Giant RideControl Dash 2 fully integrated, crisp, full-color LCD interface display screen.

• Battery: Giant EnergyPak Smart 800Wh high-density down-tube integrated battery pack (Supports secondary optional EnergyPak Plus 200Wh or 250Wh bottle-cage style range extenders).

• Charger: Giant EnergyPak 4A smart charger.

• Battery Lock Security: Integrated Torx 25 keyway structural lock cylinder built with an on-board safety torque limiter.

Frameset & Suspension Kinematics

• Frame: ALUXX SL-grade premium aluminum alloy chassis, 140mm rear wheel travel FlexPoint single-pivot linkage-driven suspension design. Boost 148x12mm thru-axle interface, integrated KSA40 direct kickstand interface mount, 1.5 to 1.8 inch oversized tapered headset design (ZS62/ZS72), and Universal Derailleur Hanger (UDH) standard. 185x52.5mm trunnion-mount shock hardware.

• Fork: Giant STL 36 Air suspension fork, 150mm trail travel, e-bike optimized crown and chassis, 5-position low-speed compression adjustment dial, tapered alloy steerer tube, 72mm crown width, 110x15mm Boost thru-axle. Full-coverage mudguard/fender direct-mount compatible.

• Rear Shock: Giant Crest FloTrac air shock, 185x52.5mm trunnion layout, 3-position compression damping adjustment lever. E-bike custom-tuned internal damping curves.

  • Factory Setup Recommendation: 30% sag benchmark configuration (equivalent to exactly 15.75mm of shaft stroke compression).

Drivetrain & Shifting (Shimano LinkGlide 1x10)

• Shifters: Shimano Cues LinkGlide 10-speed mechanical pod assembly.

• Rear Derailleur: Shimano Cues LinkGlide 10-speed, Shadow+ clutch design for elite chain management.

• Cassette: Shimano Cues LinkGlide, 10-speed, wide-range 11-48T climbing ratio layout.

• Chain: Shimano LinkGlide high-durability, wear-resistant e-bike chain.

• Crankset: Premium forged aluminum crank arms, direct-mount heavy-duty steel 36T chainring.

• Chain Guide: MRP 1x HD top guide, chainstay e-Mount pattern, fully adjustable fitment accommodating 32T to 38T configurations.

• Drivetrain Tuning Limits: Maximum permissible direct-mount chainring clearance size: 38T.

Brakes & Trail Control

• Braking System: Shimano Deore BR-M420 high-power 4-piston hydraulic disc brake calipers.

• Brake Levers: Shimano Deore BL-M401 ergonomic 2-finger alloy brake hydraulic levers.

• Rotors: Heavy-duty Center-Lock design steel disc rotors; 220mm oversized front / 203mm rear layout.

Wheels, Hubs & Aggressive Tyres

• Rims: Giant AM30 rim beds, fully tubeless-ready profile construction, wide 30mm internal rim structural width.

• Hubs: Shimano TC500 hubs, Center-Lock rotor interfaces, cartridge bearings, robust Boost spacing: 110x15mm front / 148x12mm rear thru-axle standards.

• Spokes: High-tensile stainless steel spokes.

• Front Tyre: Maxxis Minion DHF 29 x 2.50" WT (Wide Trail profile), foldable aramid bead, Tubeless Ready (TLR), protective EXO sidewall reinforcement.

• Rear Tyre: Maxxis Dissector 29 x 2.40" WT (Wide Trail profile), foldable aramid bead, Tubeless Ready (TLR), protective EXO sidewall reinforcement.

Cockpit & Finishing Kit

• Handlebars: Giant Connect TR35 aluminum trail handlebar, 35mm clamping interface zone, 20mm riser profile bend.

  • Width sizing breakdown: S: 760mm width | M, L, XL: 780mm width.

• Grips: Giant Tactal Pro single-lock-on ergonomic grips.

• Stem: Giant Contact SL 35 stem, 35mm bar bore clamping area.

• Seatpost: Giant Contact Switch AT travel-adjustable dropper seatpost. Features adjustable overall travel lengths matched directly across individual sizing brackets:

  • S: 110mm to 140mm internal travel range

  • M: 140mm to 170mm internal travel range

  • L / XL: 170mm to 200mm internal travel range

• Saddle: Giant Contact Ergo Trail saddle.

• Pedals: Large-surface platform pedals, high-grip 28-pin arrangement, polypropylene (PP) protective outer cage body, high-strength steel axle shafts.

Frame Sizing & Colorways

• Available Frame Sizes: S, M, L, XL.

• Available Colorways: Charcoal/Black dual tone, Almond/Black dual tone.

Please Note: The most precise method for determining a bike's overall build weight is to have it weighed directly on digital shop scales in your local bike workshop. Actual completed bicycle weight numbers inevitably vary depending on final frame sizing selections, specific paint finishes, internal frame protective coatings, and individual accessory outfitting choices. All Giant frames are engineered for best-in-class power-to-weight structural balancing.
