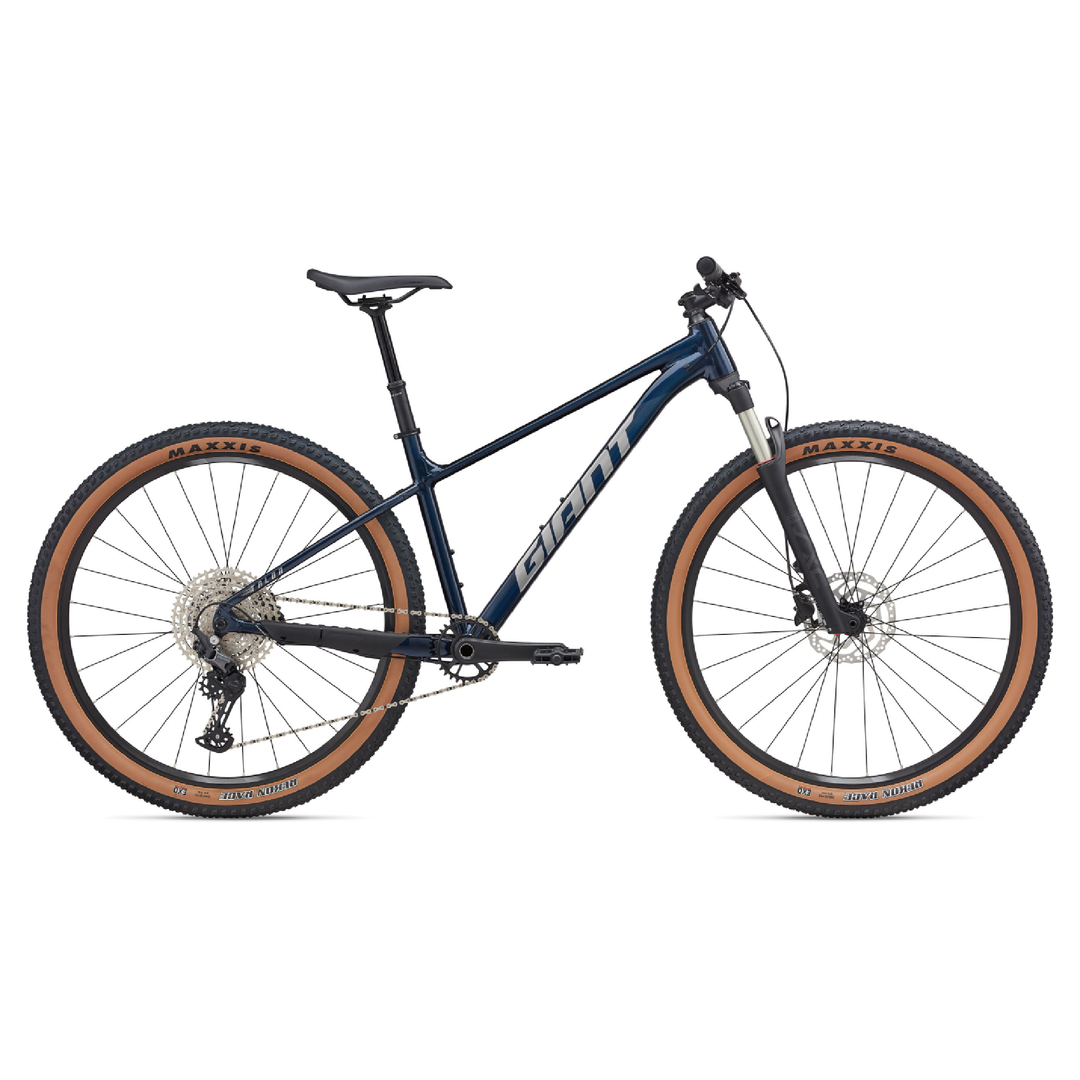

Giant Talon 0 - Ultra Navy

The mountain bike experience starts here. With a completely redesigned ALUXX-grade aluminum frame that is lighter and more durable than previous generations, this flagship hardtail is optimized for trail riders ready to step up their off-road performance. Featuring an updated modern geometry profile, a tapered head tube for front-end stability, and an aligned seatstay junction for optimal compliance and rear-end efficiency, this model is built to tackle local singletrack with total confidence. Depending on the selected frame size, the Talon 0 is precisely balanced for either 27.5-inch or 29-inch wheels, ensuring proportional handling, optimal roll-over capacity, and a responsive trail ride.

Specifications

Frameset & Geometry

• Frame: ALUXX-Grade aluminum construction, aligned seatstay junction architecture, disc-brake specific, internal cable routing ports (including internal dropper path), integrated chainstay protector, rack/fender and KSA 18 kickstand mounts.

• Fork: SXC32-2 RL, air spring configuration for infinitely tunable rider weight setup, rigid Boost 15x110mm thru-axle layout, trail-optimized chassis design.

  • XS (27.5") / S (27.5"): 80mm travel configuration.

  • S (29") / M (29") / L (29") / XL (29"): 100mm travel configuration.

• Frameset Clearance: High-volume compatibility up to 2.4" max tyre width; frame optimized for maximum 32T chainring sizing.

Drivetrain & Braking (Premium Shimano Deore 1x12)

• Shifters: Shimano Deore (SL-M6100), mechanical 1x12 speed layout.

• Front Derailleur: N/A (1x Dedicated Frame Architecture).

• Rear Derailleur: Shimano Deore (M6100) 12-speed with integrated Shadow+ chain-stabilizing clutch mechanism.

• Cassette: Shimano Deore (M6100), 12-speed wide-range 10-51T hyper-glide ratio profile.

• Chain: KMC X12 12-speed indexing chain.

• Crankset: ProWheel MPX single ring configuration.

  • Chainring Sizes: 32T for 27.5" setups / 30T for 29" setups.

  • Arm Lengths: XS (27.5"): 165mm | S: 165mm (27.5") or 170mm (29") | M & L: 170mm.

• Bottom Bracket: Fully sealed cartridge assembly.

• Brakes: Shimano BR-MT200 hydraulic disc brake calipers.

• Rotors / Levers: Shimano BL-MT201 hydraulic levers; Shimano 180mm front / 160mm rear disc rotors.

Wheels & Tyres

• Rims: Giant GX03V double-wall alloy, matching profile (27.5" or 29" based on chassis layout).

• Front Hub: Shimano HB-TC500-15-B, Boost 110x15mm thru-axle, sealed bearings.

• Rear Hub: Shimano FH-TC500-MS, 142x12mm thru-axle, sealed bearings, Micro Spline freehub body standard.

• Spokes: High-tensile stainless steel, 14g gauge profile.

• Tyres:

  • 27.5" Configuration: Maxxis Rekon 27.5x2.4", wire-bead casing.

  • 29" Configuration: Maxxis Rekon Race 29x2.4", wire-bead casing.

• Setup Note: Ships with inner tubes installed.

Cockpit & Components

• Handlebars: Giant Connect Trail alloy handlebar, 31.8mm clamp standard.

• Stem: Giant Sport alloy stem, 7-degree rise profile.

  • Sizing Reach: XS: 40mm, S: 50mm, M: 60mm, L: 70mm, XL: 80mm.

• Grips: Giant Sole-O comfort compound traction grips.

• Seatpost: Giant Contact Switch Core travel-adjustable dropper seatpost with handlebar remote, 30.9mm standard.

  • Dropper Travel Sizing: XS-S: 100mm travel (350mm length) | M-XL: 125mm travel (400mm length).

• Saddle: Giant ErgoContact Trail profile padded saddle.

• Pedals: MTB-specific caged style platform assembly.

Sizing & Wheel Configurations

• 27.5" Wheel Platform Chassis: Available in sizes Extra Small (XS) and Small (S).

• 29" Wheel Platform Chassis: Available in sizes Small (S), Medium (M), Large (L), and Extra Large (XL).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions. Bike and frame weights can vary based on final frame sizing, finish layouts, and component configurations.
