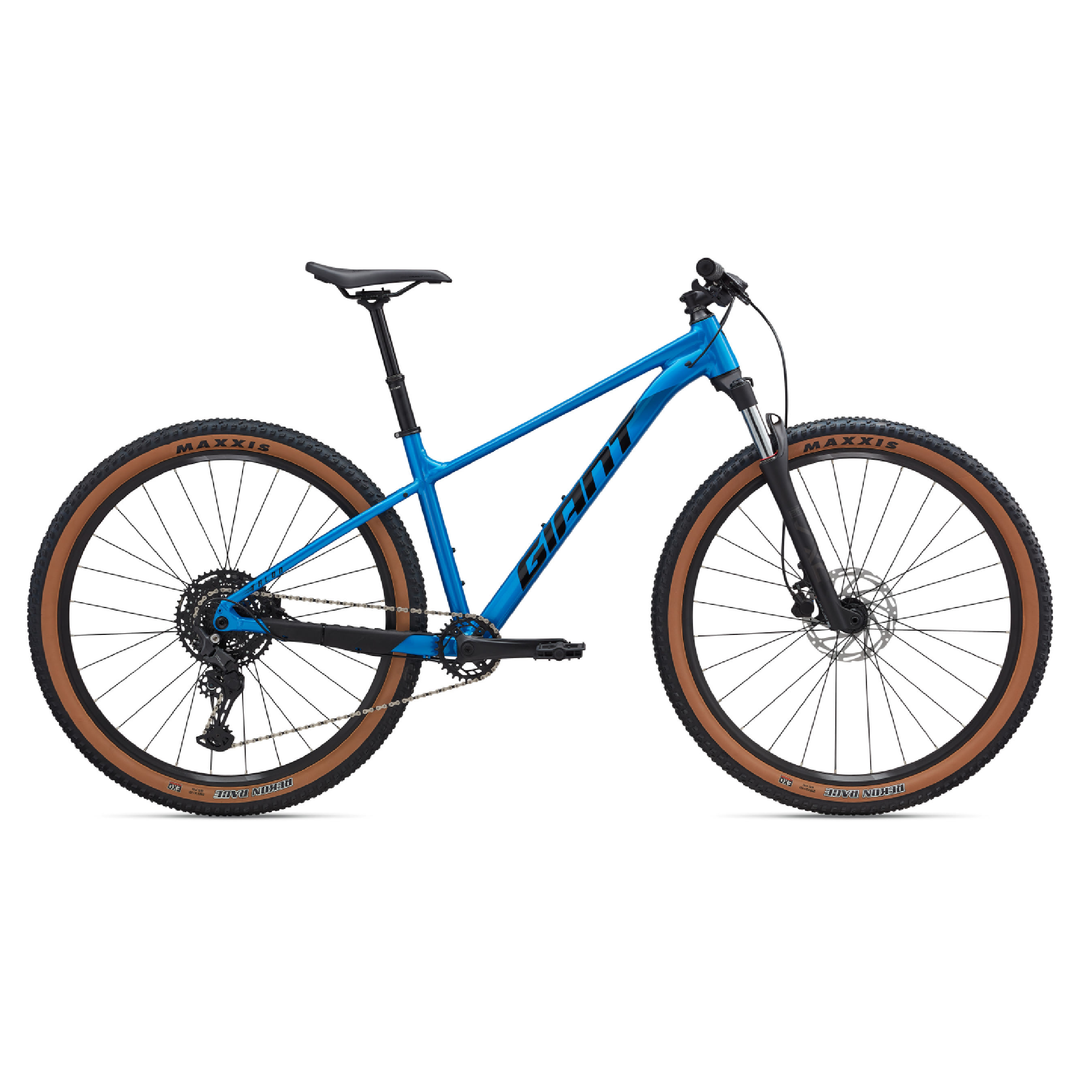

Giant Talon 1 - Metallic Blue

The mountain bike experience starts here. With a completely redesigned ALUXX-grade aluminum frame that is lighter and more durable than previous generations, this hardtail is optimized for trail riders ready to step up their off-road performance. Featuring an updated modern geometry profile, a tapered head tube for front-end stability, and an aligned seatstay junction for optimal compliance and rear-end efficiency, this model is built to tackle local singletrack with total confidence. Depending on the selected frame size, the Talon 1 is precisely balanced for either 27.5-inch or 29-inch wheels, ensuring proportional handling, optimal roll-over capacity, and a responsive trail ride.

Specifications

Frameset & Geometry

• Frame: ALUXX-Grade aluminum construction, aligned seatstay junction architecture, disc-brake specific, 12x142mm thru-axle rear dropout layout paired with a UDH (Universal Derailleur Hanger), 1.5" tapered head tube, internal cable routing ports, factory dropper-post equipped, integrated chainstay protector, rack/fender and KSA 18 kickstand mounts.

• Fork: SXC32-3 RL, coil spring configuration, rigid Boost 15x110mm thru-axle layout, trail-optimized chassis design.

  • XS (27.5") / S (27.5"): 80mm travel configuration.

  • S (29") / M (29") / L (29") / XL (29"): 100mm travel configuration.

• Frameset Clearance: High-volume compatibility up to 2.4" max tyre width; frame optimized for maximum 32T chainring sizing.

Drivetrain & Braking (Premium 1x10 Trail Layout)

• Shifters: Shimano CUES (SL-6000), mechanical 1x10 speed layout.

• Front Derailleur: N/A (1x Dedicated Frame Architecture).

• Rear Derailleur: Shimano CUES (U6000) 10-speed with integrated Shadow+ chain-stabilizing clutch mechanism.

• Crankset: ProWheel Charm single ring configuration, 30T chainring ratio profile (Note: Cross-referenced layout defaults to 32t for 27.5" setups / 30t for 29" setups).

  • Arm Lengths: S-L: 170mm length, XL: 175mm length (Note: XS frame variations default to 165mm).

• Bottom Bracket: Fully sealed square-taper cartridge assembly.

• Cassette: High-performance 10-speed wide-range ratio profile.

• Chain: KMC X11 high-performance indexing chain.

• Pedals: MTB-specific caged style platform assembly.

• Brakes: Tektro HDM275 hydraulic disc brake calipers.

• Rotors / Levers: Tektro matching hydraulic levers; Tektro 180mm front / 160mm rear steel disc rotors.

Wheels & Tyres

• Rims: High-strength structural alloy, double-wall matching profile (available in 27.5" or 29" based on frame chassis layout).

• Hubs: Structural alloy construction, precision-sealed bearing architecture.

• Spokes: High-tensile stainless steel, 14g gauge profile.

• Tyres: Maxxis Rekon Race cross-country profile, high-volume 27.5" or 29" x 2.40" width options, durable wire-bead casing construction.

Cockpit & Components

• Handlebars: Giant Connect Trail alloy handlebar, 31.8mm clamp standard.

• Stem: Giant Sport alloy stem, 7-degree rise profile.

  • Sizing Reach: XS: 40mm, S: 50mm, M: 60mm, L: 70mm, XL: 80mm.

• Grips: Giant Sole-O comfort compound traction grips.

• Seatpost: Giant Contact Switch Core travel-adjustable dropper seatpost with handlebar remote, 30.9mm standard.

  • Dropper Travel Sizing: XS-S: 100mm travel (350mm length), M-XL: 120mm travel (400mm length).

• Saddle: Giant ErgoContact Trail profile padded saddle.

Sizing & Wheel Configurations

• 27.5" Wheel Platform Chassis: Available in sizes Extra Small (XS) and Small (S).

• 29" Wheel Platform Chassis: Available in sizes Small (S), Medium (M), Large (L), and Extra Large (XL).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions. Bike and frame weights can vary based on final frame sizing, finish layouts, and component configurations.
