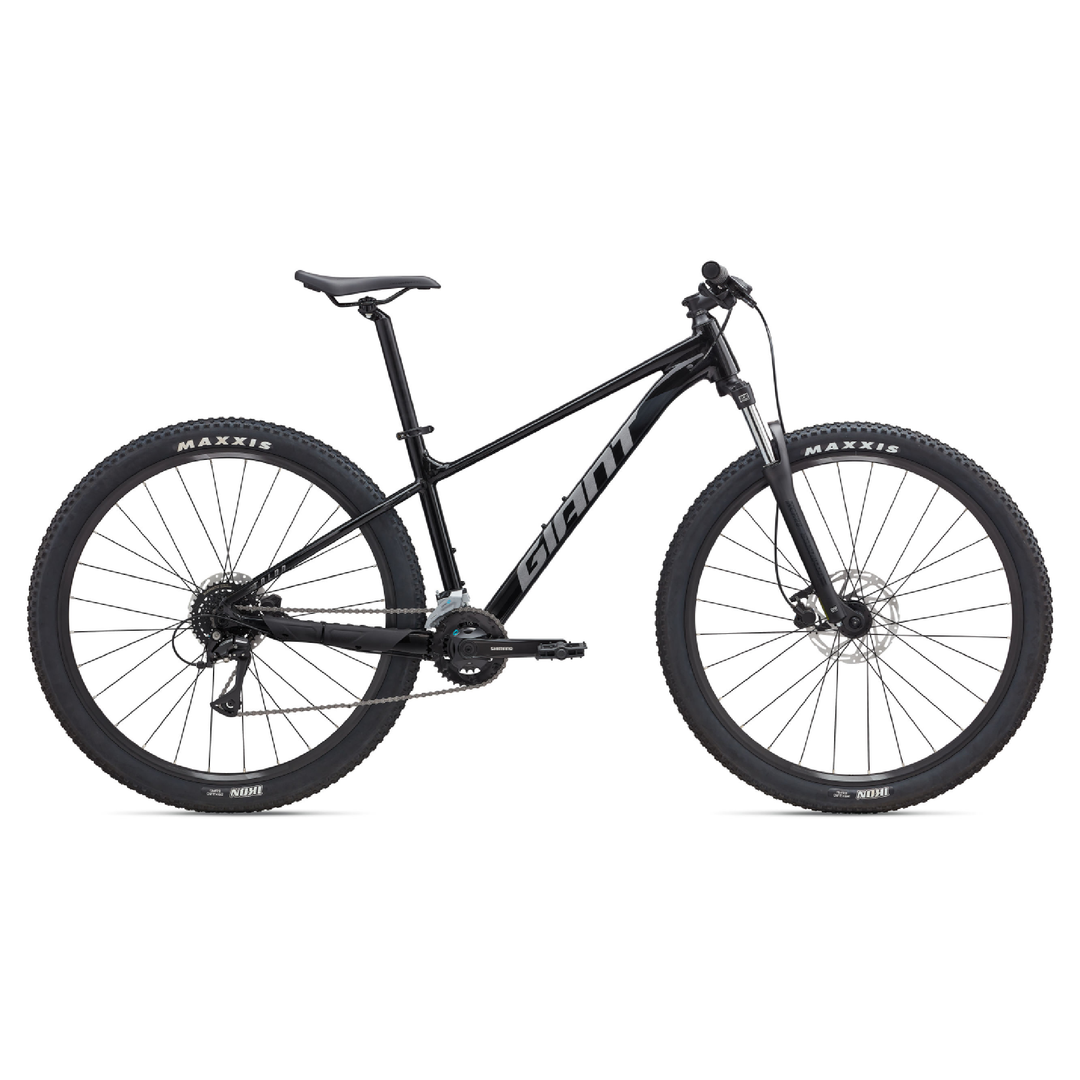

Giant Talon 3 - Panther

The mountain bike experience starts here. With a completely redesigned ALUXX-grade aluminum frame that is lighter and more durable than previous generations, this classic hardtail is everything an aspiring mountain biker needs to evolve and advance. Designed with an aligned seatstay-to-top-tube junction for maximum power efficiency and a lighter rear triangle, it delivers a lively, balanced, and confident feel on off-road terrain. Depending on frame size, the Talon is optimized for either 27.5-inch or 29-inch wheels, providing proportional handling, balanced rolling characteristics, and optimal front suspension integration.

Specifications

Frameset & Geometry

• Frame: ALUXX-Grade aluminum construction, aligned seatstay junction architecture, disc-brake specific, internal cable routing ports, dropper-post compatible (30.9mm ID), integrated chainstay protector, replaceable derailleur hanger interface, integrated rack/fender and KSA 18 kickstand mounts.

• Fork: SR Suntour XCE 28, coil spring configuration, traditional quick-release (QR) dropout layout, durable steel steerer tube.

  • XS (27.5") / S (27.5"): 80mm travel configuration.

  • S (29") / M (29") / L (29") / XL (29"): 100mm travel configuration.

• Frameset Clearance: High-volume compatibility up to 2.4" max tyre width; frame optimized for maximum 32T chainring sizing.

Drivetrain & Braking (2x8 Sport Utility Layout)

• Shifters: Shimano Acera, mechanical 2x8 speed layout.

• Front Derailleur: Shimano Acera dual-ring pull mechanics.

• Rear Derailleur: Shimano Acera 8-speed index system.

• Crankset: Shimano FC-M315 double configuration, 22/36T chainring ratio profile.

  • Arm Lengths: XS-L: 170mm length, XL: 175mm length.

• Bottom Bracket: Fully sealed square-taper cartridge assembly.

• Cassette: Shimano HG31, 8-speed, 11-34T wide-range gearing profile.

• Chain: KMC 8.3 heavy-duty 8-speed indexing chain.

• Pedals: MTB-specific caged style platform assembly.

• Brakes: Tektro TKD143 premium hydraulic disc brake calipers.

• Rotors / Levers: Tektro matching hydraulic levers; Tektro 180mm front / 160mm rear steel disc rotors.

Wheels & Tyres

• Rims: Giant GX03V alloy, high-strength double-wall matching profile (available in 27.5" or 29" based on frame chassis layout).

• Hubs: Structural alloy construction, precision-sealed bearing architecture.

• Spokes: High-tensile stainless steel, 14g gauge profile.

• Tyres: Maxxis Ikon cross-country profile, 27.5" or 29" x 2.20" width options, durable wire-bead casing construction.

Cockpit & Components

• Handlebars: Giant Connect Trail alloy handlebar, 31.8mm clamp standard.

• Stem: Giant Sport alloy stem, 7-degree rise profile.

  • Sizing Reach: XS: 40mm, S: 50mm, M: 60mm, L: 70mm, XL: 80mm.

• Grips: Giant Sole-O comfort compound traction grips.

• Seatpost: Giant Sport alloy micro-adjust post, 30.9mm diameter standard.

• Saddle: Giant Sport ergo-trail padded saddle profile.

Sizing & Wheel Configurations

• 27.5" Wheel Platform Chassis: Available in sizes Extra Small (XS) and Small (S).

• 29" Wheel Platform Chassis: Available in sizes Small (S), Medium (M), Large (L), and Extra Large (XL).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions. Bike and frame weights are based on pre-production painted frames at time of publication; production variances may occur.
