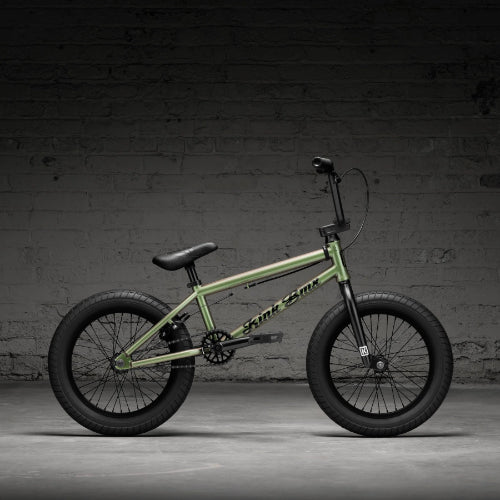

Kink Carve 16 - Patina Green

The Kink Carve 16” is the younger sibling of Kink's larger freestyle models, ensuring that younger, shorter riders can find a perfect fitting bike that can still hold up to real BMX riding. Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn't ready for the bump up to an 18” bike yet. Featuring a responsive 100% Hi-Ten steel frame paired with a premium Kink Stryker fork utilizing a 4130 Chromoly steerer tube, this scaled-down setup is stacked with real BMX parts including a short reach 40mm Mission topload stem, rock-solid 3-piece tubular chromoly cranks, and a sealed integrated headset.

Specifications

Frameset & Geometry

• Frame: 100% Hi-Ten Steel construction architectural layout.

• Fork: Kink Stryker, 4130 Chromoly steerer tube, tapered fork legs, 32mm offset configuration.

• Top Tube Length: 16.5".

• Chainstay Length: 11.25".

• Head Tube Angle: 74.5°.

• Seat Tube Angle: 71°.

• Standover Height: 6.75".

• Bottom Bracket Height: 9.75".

Drivetrain & Braking (Single-Speed Youth Freestyle Layout)

• Crankset: Mission Triumph 3-piece tubular Chromoly arms, 140mm length, 8-spline spindled spindle interface.

• Bottom Bracket: Fully sealed Mid style, 19mm inner diameter.

• Sprocket: Mission Rank 25T steel ring.

• Driver: 9T cog, integrated into rear cassette assembly.

• Chain: Mission 410 heavy-duty single-speed chain.

• Pedals: Kink Hemlock nylon composite platform.

• Brake Calliper: Mission Cease V2 U-brake system.

• Brake Lever: Mission Mini aluminum lever.

• Brake Cable: Mission L1 Linear slick casing format.

• Pegs: N/A (Sold separately).

Wheels & Tyres

• Rims: Mission X7 single-wall aluminum, 28-hole matching profile.

• Front Hub: Mission Covert unsealed axle, loose-ball construction, 3/8" male axle layout.

• Rear Hub: Mission Function semi-sealed cassette hub, high-strength 14mm axle layout.

• Tyres: Mission Tracker matching youth tread design, high-volume 16x2.40" freestyle footprint.

Cockpit & Components

• Saddle / Seatpost Integration: Mission Cypress Mini Combo system setup.

• Seat Post: Integrated Mission steel post architecture.

• Seat Clamp: Mission Slim aluminum clamp.

• Handlebars: Kink T700 bars, 7" rise profile, 100% Hi-Ten steel construction.

• Grips: Mission Helix Mini flangeless compound.

• Stem: Mission Topload design, short-reach 40mm length.

• Headset: Mission Sealed Integrated design standard (41.8mm x 45° angular contact bearings).

Sizing, Weight & Performance Limits

• Alpha Sizes Available: 16.5" Top Tube / 16" Wheel Single-Size configuration specification (Optimized for riders roughly 5 to 8 years old).

• Total Bike Weight: 10.26kg / 22.62lb total system weight profile.

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions. Bike and frame weights are based on pre-production painted frames at time of publication; production variances may occur.
