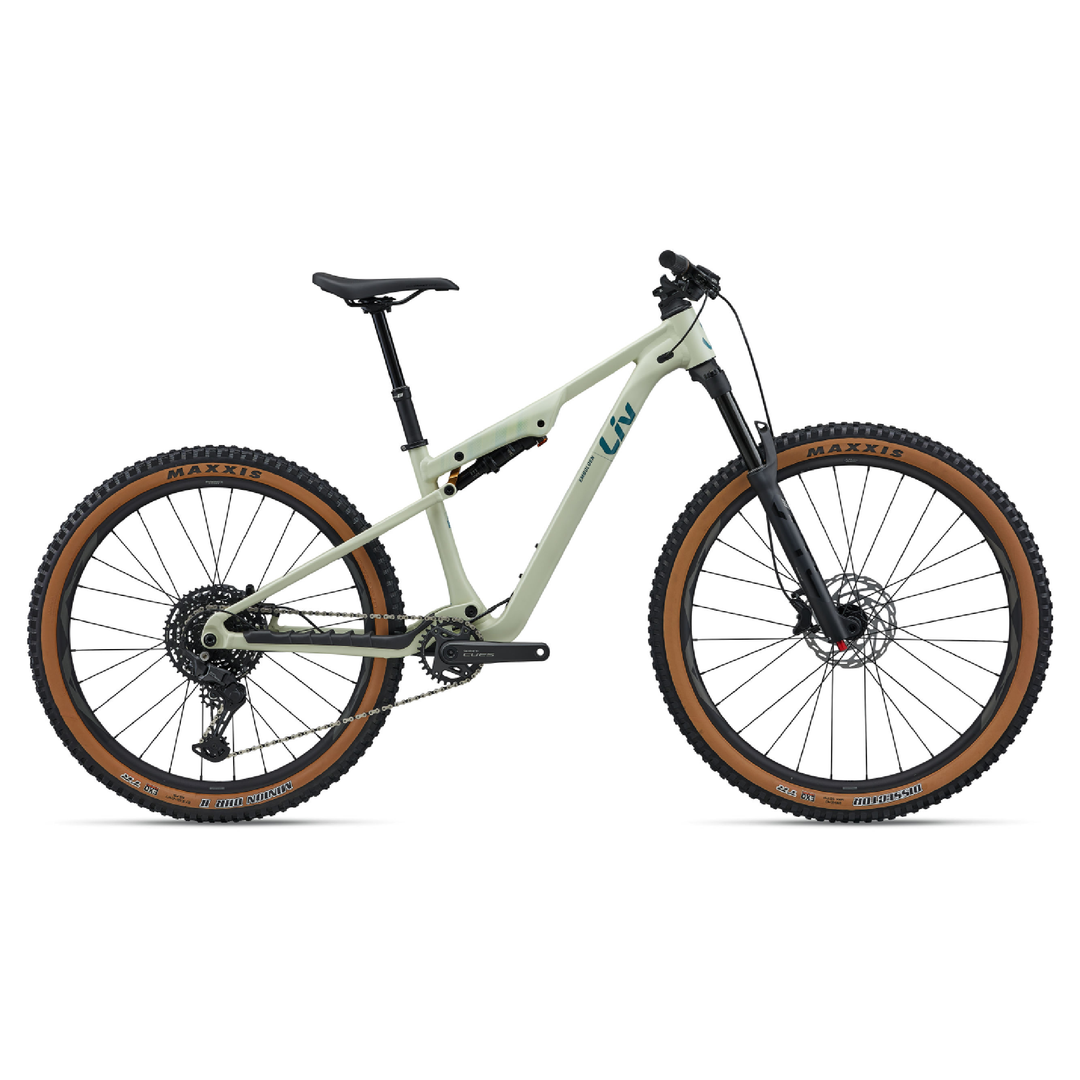

Liv Embolden Pale Moss - Medium

The Liv Embolden is an intuitive, confidence-inspiring full-suspension trail bike developed specifically using insights from women riders. Built with a lightweight ALUXX-grade aluminum frame, it features Liv's single-pivot FlexPoint rear suspension system delivering 130mm of rear travel paired with a 140mm front fork. Designed for versatile progression from flowy forest tracks to technical singletrack, the Embolden utilizes a size-specific wheel strategy (mixed 29"/27.5" on XS and S; dual 29" on M and L) alongside a durable 10-speed Shimano CUES Linkglide drivetrain and Tektro hydraulic disc brakes.

Specifications

Frameset & Suspension Kinematics

• Frame: ALUXX-grade aluminium chassis, 130mm FlexPoint rear suspension, semi-integrated rear shock layout, improved cable routing, heavy-duty molded chainstay protector, 12x148mm Boost thru-axle, Universal Derailleur Hanger (UDH) interface.

• Fork: Giant STL 34 dual air spring fork, 140mm travel, Boost 15x110mm thru-axle setup with easy suspension setup guide.

• Rear Shock: 210mm x 52.5mm length/stroke, custom tuned for Liv.

  • U.S. Build Spec: Fox Rhythm rear shock with rebound adjustment.

  • Global / Other Market Spec: Crest FloTrac Elite TR rear shock with 2-position lockout.

• Extras & Tire Clearance: Pre-installed tubeless setup preparation. Supports up to 2.5" maximum tire width and 34T maximum chainring size.

Drivetrain & Linkglide Shifting (Shimano CUES 1x10)

• Shifters: Shimano CUES SL-6000, 10-speed trigger shifter.

• Rear Derailleur: Shimano CUES RD-U6000 Shadow+ with chain stabilizing clutch mechanism.

• Cassette: Shimano CUES CS-LG300, 10-speed Linkglide, 11-48T wide range.

• Chain: KMC X-11 durable 10/11-speed chain.

• Crankset: Shimano CUES FC-U6000, 165mm crank arm length across all sizes.

  • 27.5" Rear Wheel Models (XS/S): 34T chainring.

  • 29" Dual Wheel Models (M/L): 32T chainring.

• Bottom Bracket: Shimano threaded BB.

Brakes & Control

• Brake Calipers: Tektro HD-M5141 2-piston hydraulic disc brakes.

• Brake Levers: Tektro HD-M5141 hydraulic levers.

• Rotors: Tektro TR-54 6-bolt disc rotors; 180mm front / 180mm rear.

Wheels, Hubs & Size-Specific Rubber Strategy

• Rims: Giant AM30 alloy rims, 28-hole, J-bend stainless steel spokes.

• Hubs: Giant MTB alloy sealed bearing hubs, 6-bolt disc mount, HG freehub driver body.

• Wheel & Tyre Setup by Size:

  • Sizes XS & S (Mixed Wheel / Mullet Configuration):

    • Front Wheel: 29" Giant AM30 rim with Maxxis Dissector 29" x 2.40", Dual compound, EXO protection, Tubeless Ready (TR).

    • Rear Wheel: 27.5" Giant AM30 rim with Maxxis Minion DHR II 27.5" x 2.40", Dual compound, EXO protection, Tubeless Ready (TR).

  • Sizes M & L (Full 29er Configuration):

    • Front Wheel: 29" Giant AM30 rim with Maxxis Dissector 29" x 2.40", Dual compound, EXO protection, Tubeless Ready (TR).

    • Rear Wheel: 29" Giant AM30 rim with Maxxis Minion DHR II 29" x 2.40", Dual compound, EXO protection, Tubeless Ready (TR).

Cockpit & Sizing-Specific Finishing Kit

• Handlebar: Giant Contact TR35 alloy handlebar, 35mm clamp diameter.

  • XS & S: 20mm rise / 760mm width

  • M: 35mm rise / 760mm width

  • L: 35mm rise / 800mm width

• Stem: Giant Contact SL 35, 35mm bar clamp.

  • XS: 40mm length | S, M, L: 50mm length

• Grips: Tactal Pro lock-on grips (XS/S: 120mm length | M/L: 130mm length).

• Seatpost: Giant Contact Switch AT travel-adjustable dropper post with remote lever (30.9mm diameter).

  • XS & S: 110–140mm adjustable travel (395mm length)

  • M & L: 140–170mm adjustable travel (470mm length)

• Saddle: Liv Contact Ergo Trail women's saddle.

Sizing & Color Options

• Available Sizes: XS, S (27.5" rear wheel option); S, M, L (29" dual wheel option).

• Available Colorways: Pale Moss
