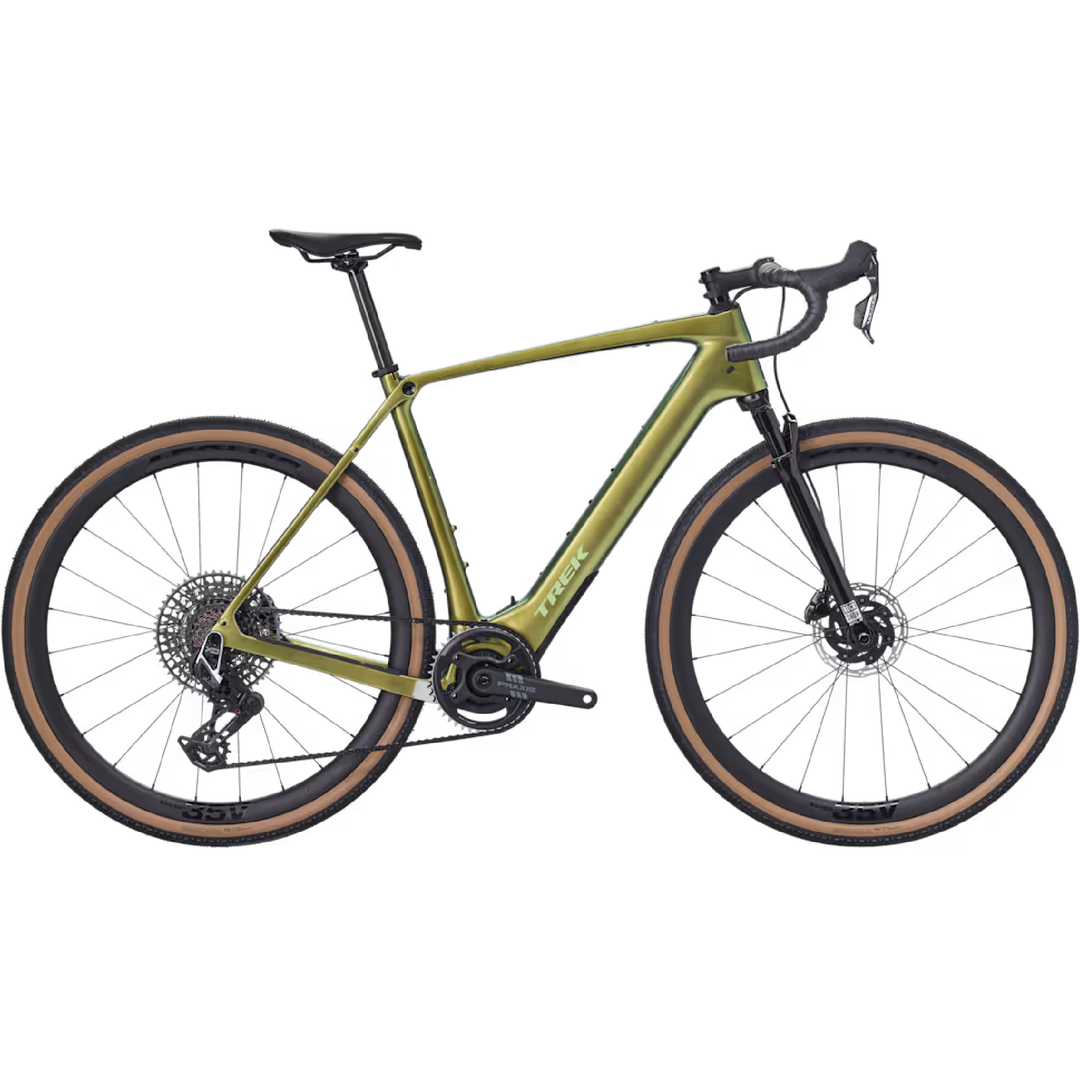

Trek Checkpoint+ SL 7 AXS - Chameleon Green

This trail-ready gravel bike delivers a perfect balance of performance and rugged utility, making it an excellent match for weekend trail exploration, multi-day bikepacking adventures, or a rock-solid daily driver. Equipped with a premium RockShox Rudy XPLR suspension fork to absorb bumps and trail chatter, this model features an advanced 500 Series OCLV Carbon frame with road-smoothing IsoSpeed technology, a crisp, wireless electronic-shifting 12-speed SRAM Force AXS and X0 Eagle Transmission mullet drivetrain, a seamless and ultra-quiet TQ drive system, and a factory-spec Bontrager carbon seatpost for premium comfort.

Specifications

Frameset & Suspension

• Frame: 500 Series OCLV Carbon, TQ drive system integration, tapered head tube, IsoSpeed comfort decoupling, internal routing, flat-mount disc brakes, mudguard mounts, UDH (Universal Derailleur Hanger), 142x12 mm chamfered thru axle.

• Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, flat-mount disc, 12x100 mm thru axle, 40 mm travel.

E-System Integration

• Motor: TQ-HPR60 harmonic pin ring transmission, 60 Nm torque output, 250 watt maximum continuous rated power, 350 watt peak power.

• Battery: TQ 360Wh integrated frame battery pack.

• Display / Computer: TQ color LED display flush-mounted in the top tube with integrated Bluetooth & ANT+ connectivity.

• Charger: TQ 4A smart system charger.

• E-bike Classification: Class 2.

Drivetrain & Shifting (SRAM Force AXS / X0 Eagle AXS 1x12 Electronic Mullet)

• Shifter: SRAM Force AXS E1, wireless electronic.

• Front Derailleur: N/A (1x Dedicated single-ring drivetrain layout).

• Rear Derailleur: SRAM X0 Eagle AXS, T-Type direct-mount wireless electronic.

• Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed ultra-wide range.

• Chain: SRAM X0 Eagle, T-Type, 12-speed.

• Pedals: Platform pedals sold separately.

• Crankset Configurations (Praxis Alloy, fixed single ring):

  • Size S: 165 mm length.

  • Sizes M, ML: 170 mm length.

  • Sizes L, XL: 172.5 mm length.

• Max Chainring Limits: 1x configuration: Maximum 44T | 2x configuration: N/A | 3x configuration: N/A.

Brakes & Rotors

• Brakes: SRAM Force AXS hydraulic disc, flat-mount system.

• Rotors: SRAM Paceline X, rounded edge profiles, CenterLock hubs, 160 mm front and rear.

• Rotor Size Limits: Frame and fork maximum capacity is 180 mm front and rear.

Wheels & Tyres

• Wheelset System (Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth):

  • Front Configuration: Bontrager carbon wheel, CenterLock disc interface, 100x12 mm thru axle.

  • Rear Configuration: Bontrager carbon wheel, CenterLock disc interface, premium SRAM XD-R driver body, 142x12 mm thru axle.

• Rear Thru-Axle Skewer: Bontrager Switch chamfered thru axle, with integrated removable lever.

• Tyres: Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid folding bead, high-performance 220 tpi casing, 700x42 mm.

• Included Tubeless Spares: Bontrager TLR rim strips and Bontrager TLR sealant (180 ml / 6 oz).

• Max Tyre Clearance: Frame limits at 50 mm without mudguards, or 42 mm with mudguards (as measured, see manual for details).

Cockpit & Components

• Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width.

• Seatpost: Bontrager carbon, 27.2 mm diameter, 8 mm offset, 330 mm length.

• Handlebar Tape: Bontrager Supertack Perf tape.

• Handlebars standard by Size (Bontrager Pro Gravel):

  • Size S: 40 cm width.

  • Sizes M, ML: 42 cm width.

  • Size L: 44 cm width.

  • Size XL: 46 cm width.

• Stem Geometry by Size (Bontrager Pro, 31.8 mm clamp, 7-degree rise):

  • Sizes S, M: 80 mm length (Blendr compatible).

  • Sizes ML, L: 90 mm length (Blendr compatible).

  • Size XL: 100 mm length (Blendr compatible).

Sizing, Weight & Performance Limits

• Alpha Sizes Available: S, M, ML, L, XL (Note: Size configuration data excludes XS size formatting for this specific build tier).

• Total Bike Weight: 14.05 kg / 30.98 lbs (Size ML configuration setup with factory TLR sealant, no inner tubes).

• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions. Bike and frame weights are based on pre-production painted frames at time of publication; production variances may occur.
