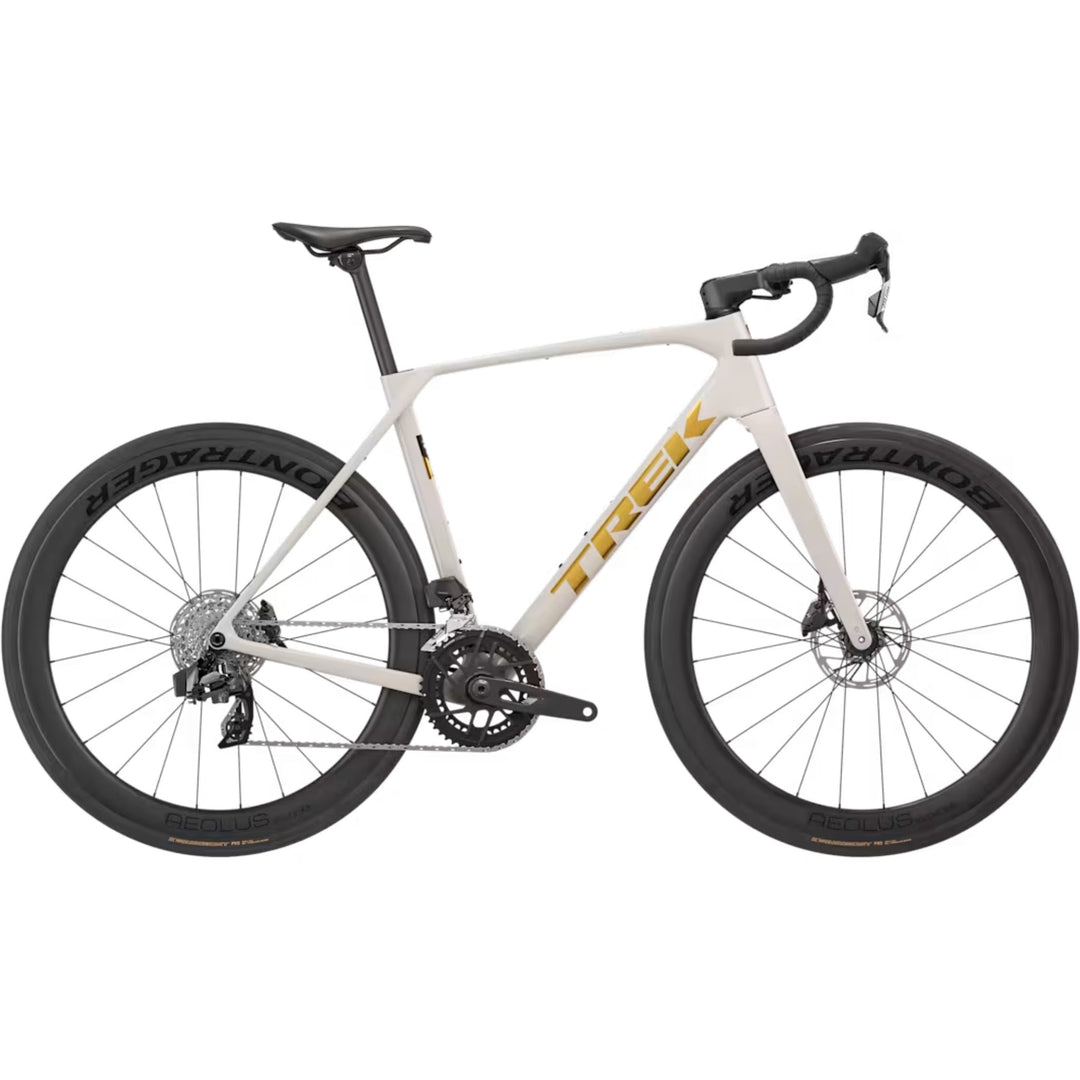

Trek Domane SL 6 AXS Gen 5 - Buff Beige

Domane SL 6 AXS is a lightweight carbon endurance bike with high-tech wireless performance. Its 500 Series OCLV Carbon frame keeps the ride smooth and efficient, with 40mm tire clearance for added comfort and versatility. A SRAM Rival AXS 2x12 drivetrain delivers crisp, wireless shifting, a sleek riser bar keeps you comfortable without cluttering your front end, and Bontrager Aeolus Elite 50 carbon wheels add speed and stability for long endurance rides.

Specifications

Frameset & Wheel Clearance

• Frame: 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47 threaded bottom bracket shell, integrated chain keeper, full fender mounts, flat mount disc brake interfaces, SRAM UDH (Universal Derailleur Hanger), 142x12mm thru axle.

• Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle.

• Maximum Tyre Clearance: Supports up to 40mm measured tire width (without fenders).

• Axles & Skewers: Bontrager Switch chamfered thru-axles (12x100mm front / 12x142mm rear) with removable lever.

Drivetrain & Wireless Electronic Shifting (SRAM Rival AXS 2x12)

• Shifter / Brake Levers: SRAM Rival AXS E1 / SRAM Rival AXS, 12-speed electronic wireless control.

• Front Derailleur: SRAM Rival AXS, braze-on mount.

• Rear Derailleur: SRAM Rival AXS, 12-speed, 36T maximum cog capacity.

• Cassette: SRAM XG-1250, 12-speed, 10-36T wide-range gear set.

• Chain: SRAM Rival E1, 12/13-speed.

• Crankset & Chainrings: SRAM Rival AXS E1 / SRAM Rival AXS, 48/35T chainrings, DUB spindle interface.

  • XS, S: 160mm length

  • M, ML: 165mm length

  • L, XL: 170mm length

• Bottom Bracket: SRAM DUB, T47 threaded internal bearing system.

• Batteries: Includes SRAM AXS battery pack and charging cradle.

Brakes & Control

• Brake System: SRAM Rival AXS hydraulic flat mount disc brakes.

• Rotors: SRAM Paceline rounded CenterLock disc rotors, 160mm front / 160mm rear (Frame supports up to 180mm front / 160mm rear maximum rotor size).

Carbon Wheels & All-Road Tyres

• Front Wheel: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, 100x12mm thru axle.

• Rear Wheel: Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, SRAM XDR freehub driver body, 142x12mm thru axle.

• Tyres: Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid folding bead, 120 TPI, 700x35mm.

• Extras: Pre-installed TLR rim strips; includes 180 ml (6 oz) Bontrager TLR sealant.

Cockpit & Sizing-Specific Kit

• Handlebar: Bontrager Comp Riser, alloy, 20mm rise, 31.8mm clamp, 70mm reach.

  • XS: 36 cm width

  • S: 38 cm width

  • M, ML: 40 cm width

  • L, XL: 42 cm width

• Stem: Trek RCS Pro, -7 degree rise, internal cable routing integration.

  • XS: 80mm

  • S: 90mm

  • M: 100mm

  • ML, L: 110mm

  • XL: 120mm

• Bar Tape: Trek gel cork tape.

• Seatpost: Bontrager RSL carbon, 27.2mm diameter, 5mm offset.

• Saddle: Verse Short Comp, steel rails, 145mm width.

Weight Ratings & System Limits

• Base Build Weight (Size ML): 8.64 kg / 19.05 lbs (setup tubeless with sealant, no tubes).

• Maximum System Weight Limit: 125 kg (275 lbs) combined limit (includes rider, bicycle, and all equipped gear/cargo).
