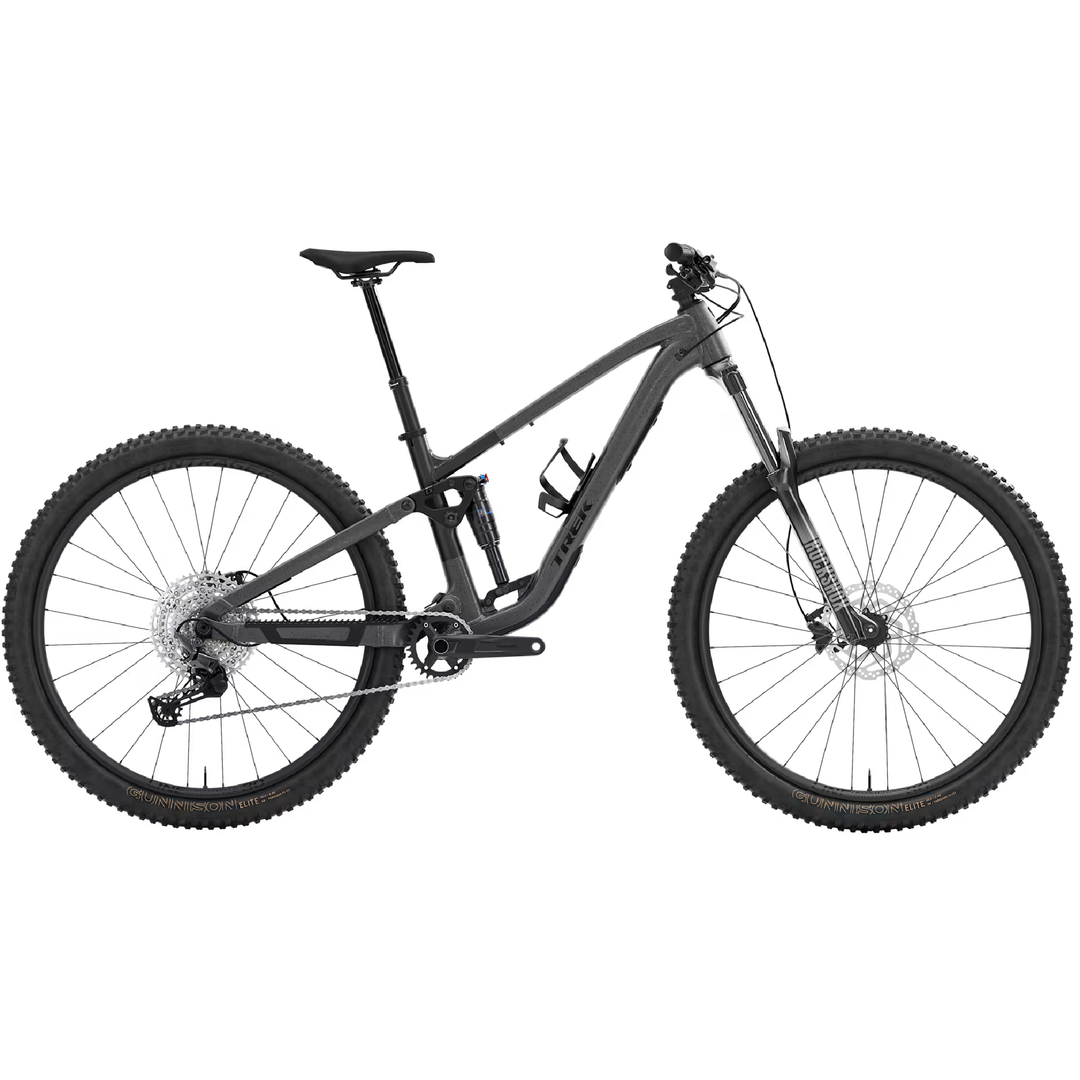

Trek Fuel EX 5 Gen 6

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes equipped with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain, and a TranzX dropper post—making it ready for absolutely anything the trails throw at you.

Specifications

Frame & Suspension

• Frame: Alpha Platinum Aluminium, internal storage, guided internal routing, adjustable leverage rate, interchangeable alloy rocker link, downtube/shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm–160mm.

• Fork: RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 150mm travel.

• Rear Shock: X-Fusion Pro 2, 2-position damper, 205mm x 60mm.

Wheels & Tyres

• Front Hub: Shimano TC500 alloy, CenterLock, 110x15mm thru-axle.

• Rear Hub: Shimano TC500 alloy, CenterLock, 148x12mm thru-axle.

• Rear Skewer: Bontrager Switch thru-axle, removable lever.

• Rims: Bontrager Line TLR 30, Tubeless-Ready, Presta valve (Size S-XL: available in both 28-hole and 32-hole configurations).

• Tyres:

  • Sizes M, L, XL: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40"

  • Size S: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40"

• Extras: Bontrager TLR sealant (180ml) and Bontrager TLR rim strips included.

• Max Tyre Size: Frame: 29x2.50" (For fork, see manufacturer).

Drivetrain

• Shifter: Shimano Deore M6100, 12-speed.

• Rear Derailleur: Shimano Deore M6100, long cage.

• Crank: Shimano MT512, 30T ring, 55mm chain line, 170mm length.

• Bottom Bracket: Shimano BB-MT501 BSA.

• Cassette: Shimano Deore M6100, 10-51T, 12-speed.

• Chain: Shimano Deore M6100, 12-speed.

• Chainring Limits: Max: 34T (Oval: 32T) | Min: 30T (Oval: 32T).

Components

• Saddle: Bontrager Verse Short, stainless steel rails.

• Seatpost:

  • Size S: TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm.

  • Sizes M, L, XL: TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm.

• Handlebar: Bontrager Comp, alloy, 31.8mm clamp, 40mm rise, 780mm width.

• Grips: Trek Line Comp, nylon lock-on.

• Stem: Bontrager Comp, 31.8mm, 7-degree, 35mm length.

• Headset: FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom.

• Brakes: Shimano hydraulic disc, MT201 lever, MT200 caliper.

• Brake Rotors: Shimano RT10, CenterLock, 180mm (Max frame rotor size: 203mm).

Weight & Capacity

• Weight: 17.02 kg / 37.53 lbs (Size Medium, setup tubeless with sealant, no tubes).

• Weight Limit: This bike has a maximum total weight limit of 136 kg (300 lbs) (combined weight of bicycle, rider, and cargo).
