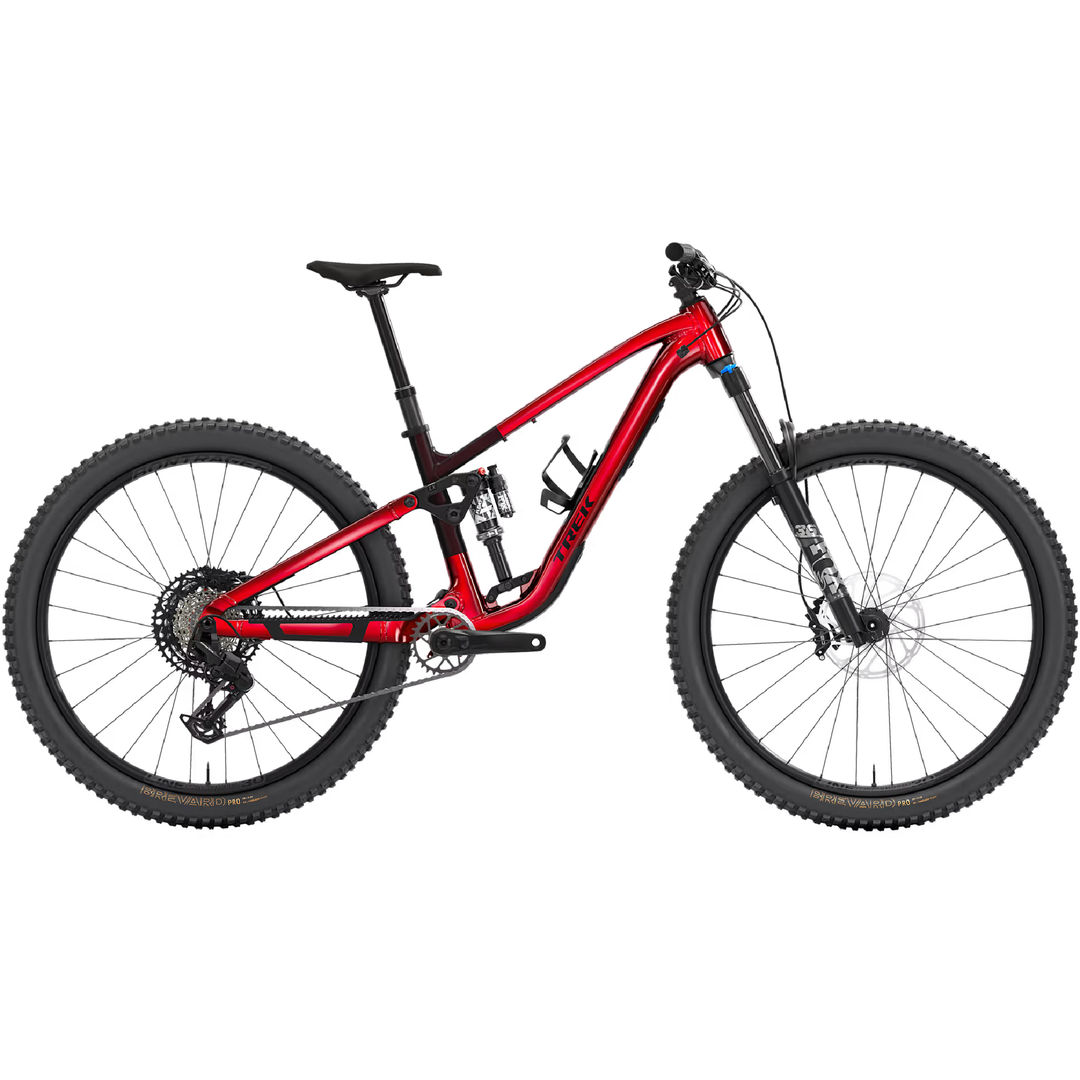

Trek Fuel EX8 Gen 7 - Fury Red

This trail-ready full-suspension mountain bike delivers a perfect balance of performance and rugged utility, making it an excellent match for weekend trail exploration, heavy-hitting enduro laps, or a rock-solid daily driver. Equipped with a premium Fox air suspension package to absorb heavy hits and trail chatter, this model features an advanced Alpha NEXT Platinum aluminium frame with integrated internal storage and adaptable travel configuration, a crisp-shifting 12-speed SRAM transmission drivetrain with direct-mount T-Type technology, and a factory-spec Bontrager Line Dropper seatpost for instant on-the-fly saddle adjustments.

Specifications

Frameset & Suspension

• Frame: Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP (Active Braking Pivot), UDH, Boost148, adaptable travel 145 mm–160 mm.

• Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel.

• Rear Shock: Fox Performance Float X, 2-position damper, 205 mm x 60 mm.

Drivetrain & Shifting (SRAM Eagle Transmission 1x12)

• Shifter: SRAM Eagle 70, 12-speed.

• Front Derailleur: N/A (1x Dedicated single-ring layout).

• Rear Derailleur: SRAM Eagle 70, T-Type.

• Cassette: SRAM Eagle XS-1270, T-Type, 10-52T, 12-speed wide-range.

• Chain: SRAM Eagle 70, T-Type, 12-speed.

• Bottom Bracket: SRAM DUB MTB Wide, 73 mm, BSA threaded.

• Crankset Configuration: SRAM Eagle 70, DUB, 30T steel ring, T-Type, 55 mm chainline, 170 mm length.

• Max Chainring Limits: 1x configuration: Maximum 34T (Oval: 32T) / Minimum 30T (Oval: 32T) | 2x configuration: N/A | 3x configuration: N/A.

Brakes & Rotors

• Brakes: SRAM DB 8 4-piston hydraulic disc system.

• Rotors: SRAM CenterLine 2.0 6-bolt design ([Front] 200 mm / [Rear] 180 mm or 200 mm configurations).

• Rotor Size Limits: Frame capacities range from a Minimum of 180 mm to a Maximum of 203 mm. For front fork clearances, cross-reference the fork manufacturer guidelines.

Wheels & Tyres

• Rims: Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve layout.

• Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru-axle.

• Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru-axle.

• Rear Thru-Axle Skewer: Bontrager Switch thru-axle, with integrated removable lever.

• Tyres (Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi):

  • Size S: 27.5" x 2.50" or 29" x 2.50" options.

  • Sizes M, L, XL: 29" x 2.50".

• Included Tubeless Spares: Bontrager TLR rim strips and Bontrager TLR sealant (180 ml / 6 oz).

• Max Tyre Clearance: Frame limits at 29" x 2.50" (Note: Size S clearance scales down based on wheel size format). For front fork clearances, cross-reference the manufacturer guidelines.

Cockpit & Components

• Saddle: Bontrager Verse P3, chromoly rails.

• Headset: FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5" crown.

• Grips: Trek Line Comp, nylon lock-on.

• Stem: Bontrager Elite, 35 mm clamp, 0-degree rise, 45 mm length.

• Handlebar: Race Face Turbine, alloy, 35 mm clamp, 40 mm rise, 780 mm width.

• Dropper Seatpost Integration (Bontrager Line Dropper, MaxFlow internal routing, 34.9 mm diameter):

  • Size S: 150 mm travel, 410 mm length.

  • Size M: 170 mm travel, 450 mm length.

  • Sizes L, XL: 200 mm travel, 515 mm length.

Sizing, Weight & Performance Limits

• Alpha Sizes Available: S, M, L, XL

• Total Bike Weight: 16.89 kg / 37.24 lbs (Size Medium configuration setup with factory TLR sealant, no inner tubes).

• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions.
