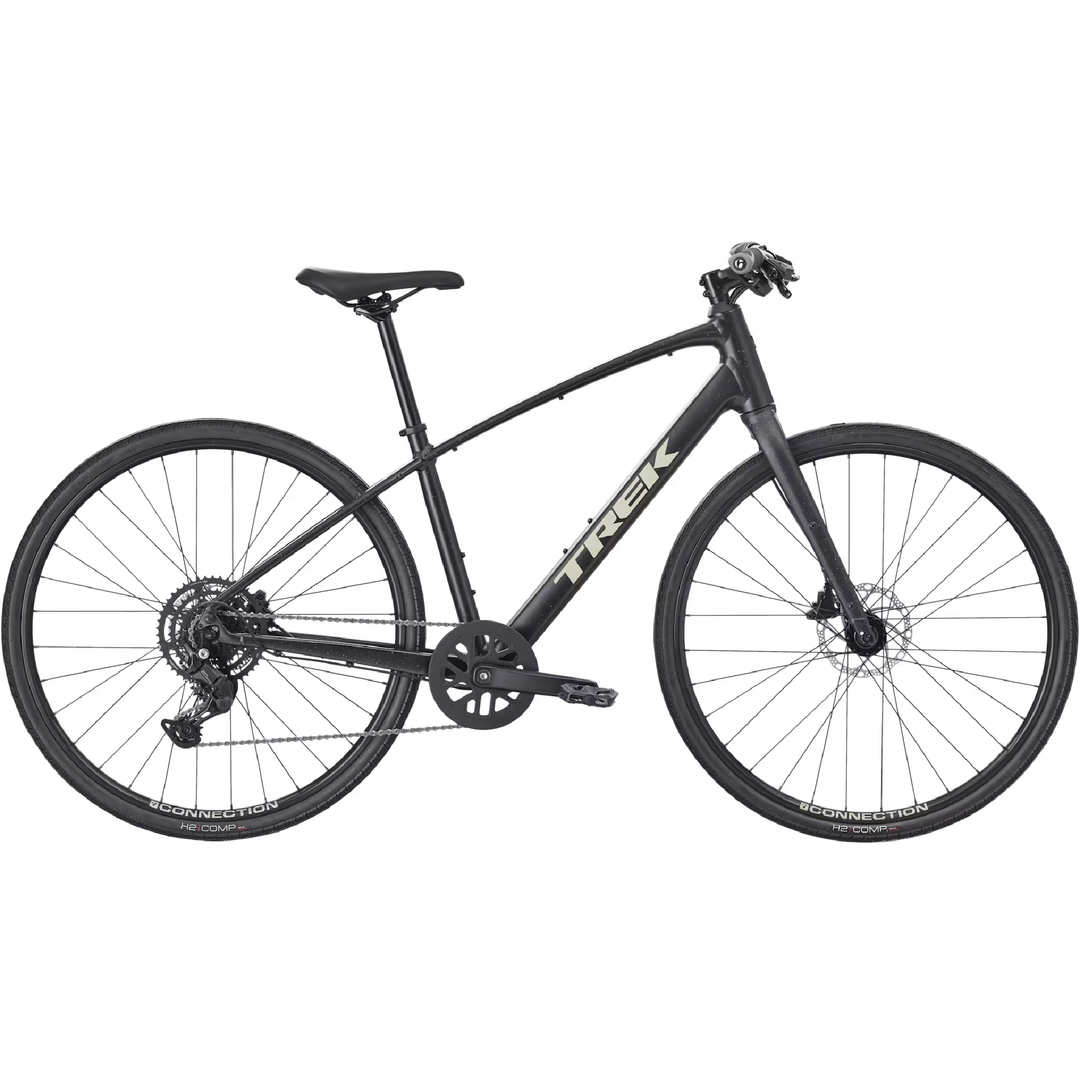

Trek FX 2 Stepover Gen 4 - Carbon Dark Grey

The FX 2 is a stylish, versatile hybrid bike built for everyday fitness, short commutes, and casual cruising. It hits the sweet spot between value and utility, utilizing the exact same lightweight Alpha Gold Aluminium frame as its higher-end sibling, but swapping to an alloy fork to keep it highly affordable. Driven by a modern 1x9 Shimano CUES Linkglide drivetrain, shifting is smooth and incredibly durable, while reliable Tektro hydraulic disc brakes provide confident stopping power in all weather conditions. Equipped with plenty of frame ports, it is easy to customize with racks, mudguards, and tech accessories to match your daily routine.

Specifications

Frameset & Geometry

• Frame: Alpha Gold Aluminium, internal cable routing, flat-mount disc brake interface, integrated kickstand mount, 135x5mm quick-release dropout. Fully equipped with integrated rack and mudguard (fender) mounts.

• Fork: FX Alloy, flat-mount disc, lowrider rack mounts, 410mm axle-to-crown height, secure ThruSkew 5mm bolt-on quick-release system.

• Frame Clearance: High-volume compatibility up to 700x40mm maximum tyre size (without mudguards).

Drivetrain & Shifting (Shimano CUES 1x9 Linkglide Layout)

• Shifter: Shimano CUES (U4000) 9-speed mechanical shifter.

• Rear Derailleur: Shimano CUES (U4000) 9-speed trail/city derailleur.

• Cassette: Shimano LINKGLIDE (LG300), 9-speed, ultra-durable 11-46T wide-range ratio profile.

• Crankset: ProWheel Pro alloy arms, 170mm length, fitted with a 40T narrow-wide steel chainring for reliable chain retention.

• Bottom Bracket: Sealed cartridge unit, 68mm English threaded standard.

• Drivetrain Tuning Limits: Maximum 1x chainring limit: 44T | Maximum 2x chainring limit: 46/32T.

• Pedals: Bontrager City platform pedals.

Brakes & Control

• Braking System: Tektro HD-R280 hydraulic disc brake flat-mount calipers and alloy levers.

• Rotors: Tektro Wave 6-bolt steel disc rotors; 160mm front / 160mm rear (160mm is the maximum permitted frame/fork rotor dimension).

Wheels & Tyres

• Rims: Bontrager Connection double-wall alloy, 32-hole, 20mm internal width, drilled for traditional Schrader valves.

• Front Hub: Formula DC-20 alloy shell, 6-bolt rotor mount, 100x5mm spacing with a 139mm bolt-on skewer.

• Rear Hub: Formula DC-22 alloy shell, 6-bolt rotor mount, Shimano 8/9/10-speed freehub body standard, 135x5mm spacing with a 152mm quick-release skewer.

• Tyres: Bontrager H2 Comp, wire bead, 30 TPI casing, 700x35mm all-weather urban tread.

Cockpit & Finishing Kit

• Handlebars: Bontrager alloy handlebar, 31.8mm clamp diameter, stable 15mm rise.

  • Width by Size: XS, S, M: 600mm width | L, XL: 660mm width.

• Grips: Trek Ergonomic PRO, secure lock-on design.

• Stem: Bontrager Comp, 31.8mm clamp, 7-degree rise, integrated Blendr accessory integration architecture.

  • Length by Size: XS, S, M: 90mm extension | L, XL: 100mm extension.

• Seatpost: Bontrager alloy micro-adjust post, 27.2mm diameter, comfortable 12mm offset.

  • Length by Size: XS, S, M: 330mm length | L, XL: 400mm length.

• Saddle: Bontrager Sport fitness saddle.

Weight & Structural Limits

• Base Build Weight: 12.10 kg / 26.68 lbs (Measured on a Size Medium frame configuration).

• Maximum Weight Capacity: Structural weight limit of 136 kg / 300 lbs total combined mass (includes the combined weight of the bicycle, rider, and all mounted cargo or racks).

Please Note: Components and frame specifications are subject to running factory parts substitutions by the manufacturer based on availability. Final retail build weights can vary across frame sizing, paint finishes, and protective hardware outfitting.
