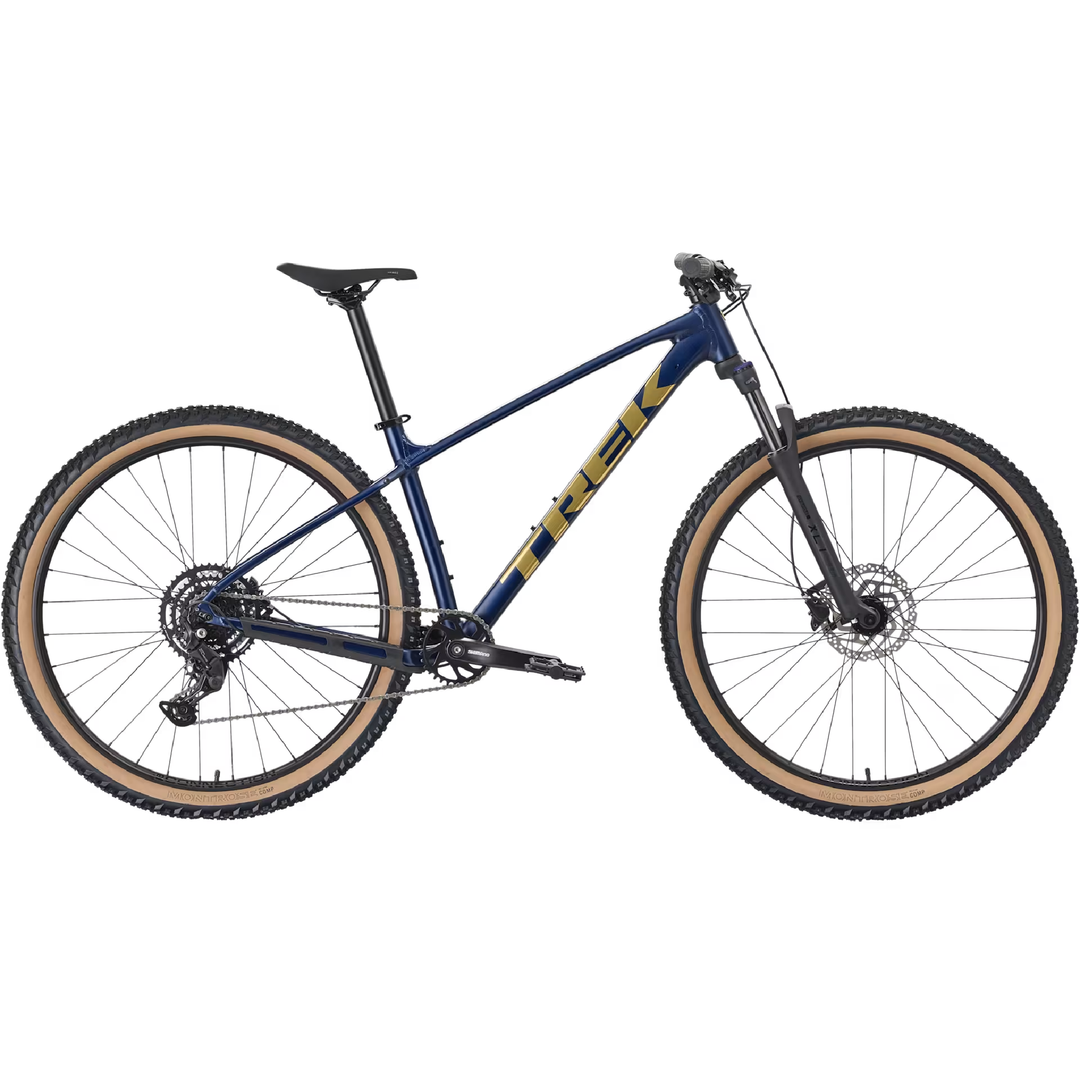

Trek Marlin 5 Gen 3 Mulsanne Blue - ML

The Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Specifications

Frameset & Suspension

• Frame: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew quick-release axle dropouts.

• Fork: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel.

Drivetrain & Shifting (Shimano CUES 1x9)

• Shifter: Shimano U4000, 9-speed

• Front Derailleur: N/A (1x Dedicated single-ring layout)

• Rear Derailleur: Shimano CUES U4000

• Cassette: Shimano LINKGLIDE LG300, 11-46T, 9-speed wide-range

• Chain: Shimano LG500

• Bottom Bracket: Shimano, 73 mm, threaded cartridge, 122.5 mm spindle

• Pedals: VP-536 nylon platform pedals

• Crankset: Shimano CUES U4001, 32T chainring, 52 mm chain line, 175 mm length

Brakes & Rotors

• Brakes: Shimano MT200 hydraulic disc system

• Rotors: Shimano RT26 6-bolt design ([Front] 180 mm / [Rear] 160 mm)

Wheels & Tyres

• Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve layout

• Front Hub: Formula DC-20, alloy, 6-bolt, 100x5 mm

• Front Skewer: Trek Thru-Skew

• Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm

• Rear Skewer: 173x5 mm QR

• Spokes: 14 g stainless steel, black finish

• Tyres: Bontrager Montrose Comp, wire bead, 30 tpi, 29" x 2.40"

Cockpit & Components

• Saddle: Bontrager Verse Short, stainless steel rails

• Headset: Semi-integrated, 1-1/8" threadless profile

• Grips: Trek Line Comp, nylon lock-on

• Handlebars: Bontrager alloy, 31.8 mm clamp standard, 15 mm rise, 750 mm width

• Seatpost: Bontrager alloy, 31.6 mm diameter, 12 mm offset, 400 mm length

• Stem: Bontrager Comp, 31.8 mm clamp, Blendr compatible, 7-degree rise, 60 mm length

Sizing, Weight & Performance Limits

• Frame Size Selection: XL (Optimized 29" Wheel Specific Platform)

• Available Colourways: Azure

• Total Bike Weight: 15.10 kg / 33.29 lb (Size Medium baseline configuration setup with factory inner tubes)

• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without notice due to ongoing factory running parts substitutions.
