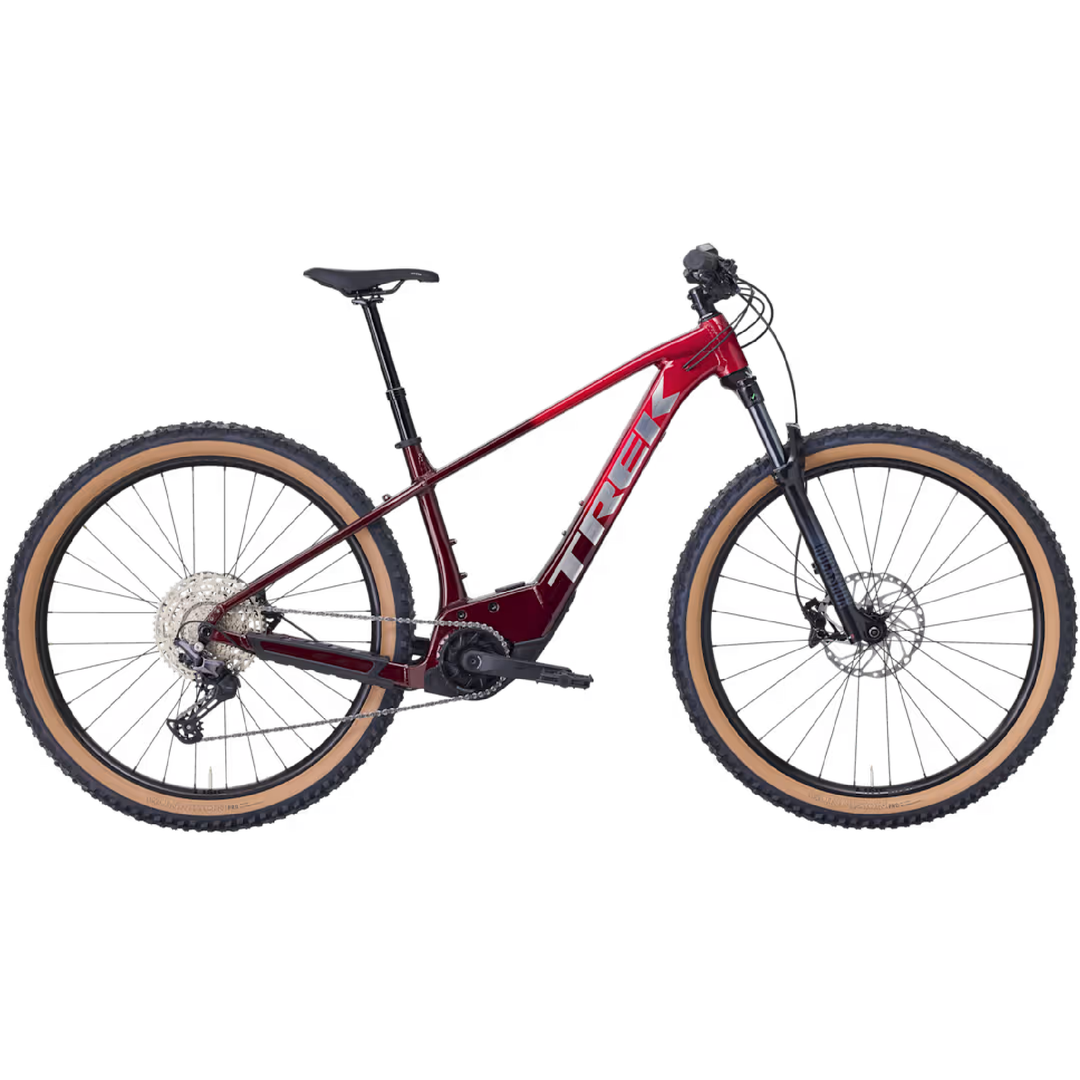

Trek Marlin+ 8 - Fury Red/Lithium Fade

This trail-ready hardtail electric mountain bike delivers a perfect balance of performance and rugged utility, making it an excellent match for weekend trail exploration, rugged backcountry singletrack, or a rock-solid daily driver. Equipped with a premium RockShox air suspension fork to absorb bumps and trail chatter, this model features a robust Alpha Gold Aluminium frame, a smooth-shifting 12-speed Shimano Deore drivetrain, a reliable Bosch smart system motor unit, and a factory-spec TranzX dropper seatpost for instant on-the-fly saddle adjustments.

Specifications

Frameset & Suspension

• Frame: Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH (Universal Derailleur Hanger), Boost148, 12 mm thru axle.

  • Note: Size XS features a curved top tube for lower standover height and easier mounting.

• Fork Configuration:

  • Size XS: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel.

  • Size S: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel.

  • Sizes M, L, XL: RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel.

E-System Integration

• Motor: Bosch Active Line Plus, 50 Nm torque output.

• Battery: Bosch CompactTube 400Wh.

• Display / Computer: Bosch Purion 200 integrated controller and display.

• Charger: Bosch standard 2A, 230V, smart system compatible.

• E-bike Classification: Class 3.

Drivetrain & Shifting (Shimano Deore 1x12)

• Shifter: Shimano Deore M6100, 12-speed.

• Front Derailleur: N/A (1x Dedicated single-ring layout).

• Rear Derailleur: Shimano Deore M6100, long cage.

• Cassette: Shimano Deore M6100, 10-51, 12-speed wide-range.

• Chain: Shimano Deore M6100, 12-speed.

• Pedals: VP-536 nylon platform.

• Crank Configuration: FSA CK-220, 165 mm length with FSA 32T steel chainring and integrated guard.

• Max Chainring Limits: 1x configuration: Maximum 36T / Minimum 32T | 2x configuration: N/A | 3x configuration: N/A.

Brakes & Rotors

• Brakes: Shimano 4-piston hydraulic disc system (MT4100 lever, MT420 caliper).

• Rotors: Shimano RT64 CenterLock design ([Front] 203 mm / [Rear] 203 mm).

• Rotor Size Limits: Frame capacities range from a Minimum of 180 mm to a Maximum of 203 mm. For front fork clearances, cross-reference the fork manufacturer guidelines.

Wheels & Tyres

• Rims: Bontrager Line TLR 30, Tubeless-Ready, 28-hole or 32-hole options, Presta valve layout.

• Front Hub: Shimano TC500 alloy, CenterLock, 110x15 mm thru axle.

• Rear Hub: Shimano TC500 alloy, CenterLock, 148x12 mm thru axle.

• Rear Thru-Axle Skewer: Bontrager Switch thru axle, with integrated removable lever.

• Tyres (Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi):

  • Sizes XS, S: 27.5" x 2.60".

  • Sizes M, L, XL: 29" x 2.60".

• Included Tubeless Spares: Bontrager TLR rim strips and Bontrager TLR sealant (180 ml / 6 oz).

• Max Tyre Clearance: Frame limits at 29" x 2.6" (XS size triangle limits at 27.6" x 2.6"). For front fork clearances, cross-reference the manufacturer guidelines.

Cockpit & Components

• Saddle: Bontrager Verse P3, chromoly rails.

• Headset: Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom.

• Grips: Trek Line Comp, nylon lock-on.

• Handlebars (31.8 mm clamp standard):

  • Sizes XS, S: Bontrager alloy, 15 mm rise, 720 mm width.

  • Sizes M, L, XL: Bontrager Comp, alloy, 40mm rise, 780 mm width.

• Dropper Seatpost Integration (TranzX JD-YSI34, internal routing, 31.6 mm diameter):

  • Sizes XS, S: 100 mm travel, 350 mm length.

  • Sizes M, L: 150 mm travel, 456 mm length.

  • Size XL: 170 mm travel, 500 mm length.

• Stem Geometry by Size (Bontrager Comp, 31.8 mm clamp, 7-degree rise):

  • Sizes XS, S: 35 mm length.

  • Sizes M, L: 50 mm length (Blendr compatible).

  • Size XL: 60 mm length (Blendr compatible).

Sizing, Weight & Performance Limits

• Alpha Sizes Available: XS, S, M, L, XL

• Total Bike Weight: 21.89 kg / 48.26 lbs (Size Medium configuration setup with factory TLR sealant, no inner tubes).

• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions.
