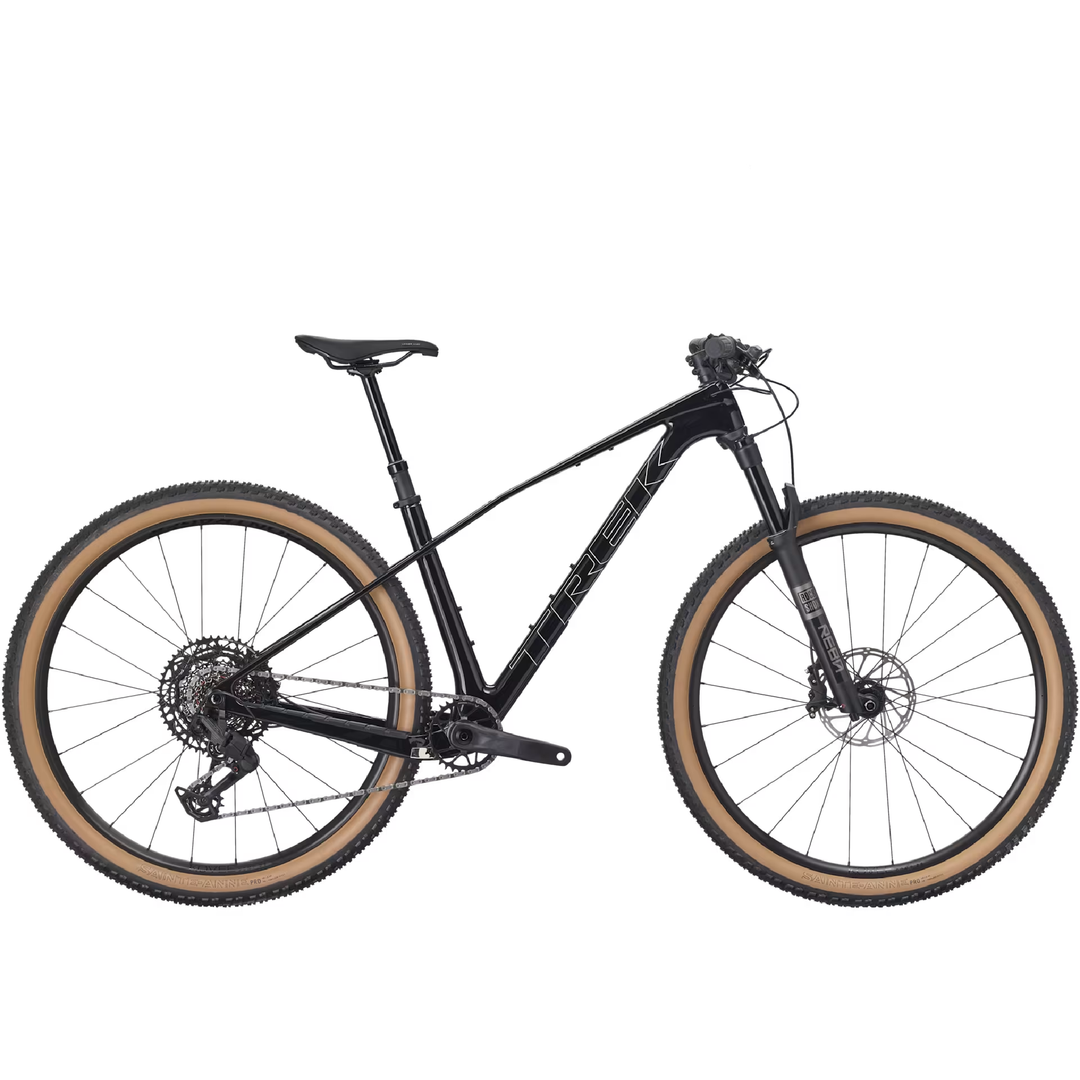

Trek Procaliber 9.6 Gen 3 - Dark Star

This trail-ready cross-country hardtail mountain bike delivers a perfect balance of performance and rugged utility, making it an excellent match for weekend trail exploration or a rock-solid daily race weapon. Equipped with a premium RockShox Reba air suspension fork to absorb bumps and trail chatter, this model features an advanced OCLV Mountain Carbon frame with vibration-damping IsoBow technology, a crisp-shifting 12-speed SRAM transmission drivetrain with robust T-Type direct-mount technology, and a factory-spec Bontrager Line Dropper seatpost for instant on-the-fly saddle adjustments.

Specifications

Frameset & Suspension

• Frame: OCLV Mountain Carbon, IsoBow, tapered head tube, guided internal routing, rack & accessory mounts, balanced post mount brake, UDH, Boost148.

• Fork Configuration: RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel.

• Remote Suspension Lockout: Bontrager Drop Lock remote.

Drivetrain & Shifting (SRAM Eagle Transmission 1x12)

• Shifter: SRAM Eagle 70, 12-speed.

• Front Derailleur: N/A (1x Dedicated single-ring layout).

• Rear Derailleur: SRAM Eagle 70, T-Type.

• Cassette: SRAM Eagle XS-1270, T-Type, 10-52T, 12-speed wide-range.

• Chain: SRAM Eagle 70, T-Type, 12-speed.

• Bottom Bracket: SRAM DUB, 92 mm, PressFit.

• Pedals: Platform pedals sold separately.

• Crankset Configurations (Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline):

  • Sizes S, M, ML: 170 mm length.

  • Sizes L, XL: 175 mm length.

• Max Chainring Limits: 1x configuration: 38T | 2x configuration: N/A | 3x configuration: N/A.

Brakes & Rotors

• Brakes: SRAM DB 6 4-piston hydraulic disc system.

• Rotors: SRAM CenterLine or CenterLine 2.0 6-bolt design with round-edges ([Front] 180 mm / [Rear] 160 mm or 180 mm configurations).

• Rotor Size Limits: Frame maximum capacity is 180 mm. For front fork maximums, cross-reference the fork manufacturer guidelines.

Wheels & Tyres

• Front Wheel: Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29".

• Rear Wheel: Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru-axle, 29".

• Rear Thru-Axle Skewer: Bontrager Switch thru-axle, with integrated removable lever.

• Tyres: Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29" x 2.40".

• Included Tubeless Spares: Bontrager TLR rim strips and Bontrager TLR sealant (180 ml / 6 oz).

• Max Tyre Clearance: Frame limits at 29" x 2.40". For front fork clearances, cross-reference the manufacturer guidelines.

Cockpit & Components

• Saddle: Verse Short Comp, steel rails, 145 mm width.

• Headset: FSA IS-2, 1-1/8" top, 1.5" bottom.

• Grips: Trek Line Comp, nylon lock-on.

• Handlebars standard by Size:

  • Size S: Bontrager Comp, alloy, 31.8 mm clamp, 5 mm rise, 720 mm width.

  • Sizes M, ML, L, XL: Bontrager Rhythm Comp, alloy, 31.8 mm clamp, 15 mm rise, 750 mm width.

• Dropper Seatpost Integration (Bontrager Line Dropper, MaxFlow internal routing, 31.6 mm diameter):

  • Size S: 100 mm travel, 310 mm length.

  • Sizes M, ML, L: 150 mm travel, 410 mm length.

  • Size XL: 170 mm travel, 450 mm length.

• Stem Geometry by Size (31.8 mm clamp, 7-degree rise):

  • Size S: Bontrager Comp, 50 mm length (Blendr compatible).

  • Sizes M, ML: Bontrager Elite, 60 mm length (Blendr compatible).

  • Size L: Bontrager Elite, 70 mm length (Blendr compatible).

  • Size XL: Bontrager Elite, 80 mm length (Blendr compatible).

Sizing, Weight & Performance Limits

• Alpha Sizes Available: S, M, ML, L, XL

• Total Bike Weight: 11.83 kg / 26.09 lb (Size Medium configuration setup with factory TLR sealant, no inner tubes).

• Weight Limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Please Note: We make every effort to ensure the accuracy of the specification information, but components are subject to change by the manufacturer at any time without prior notice due to ongoing factory running parts substitutions.
