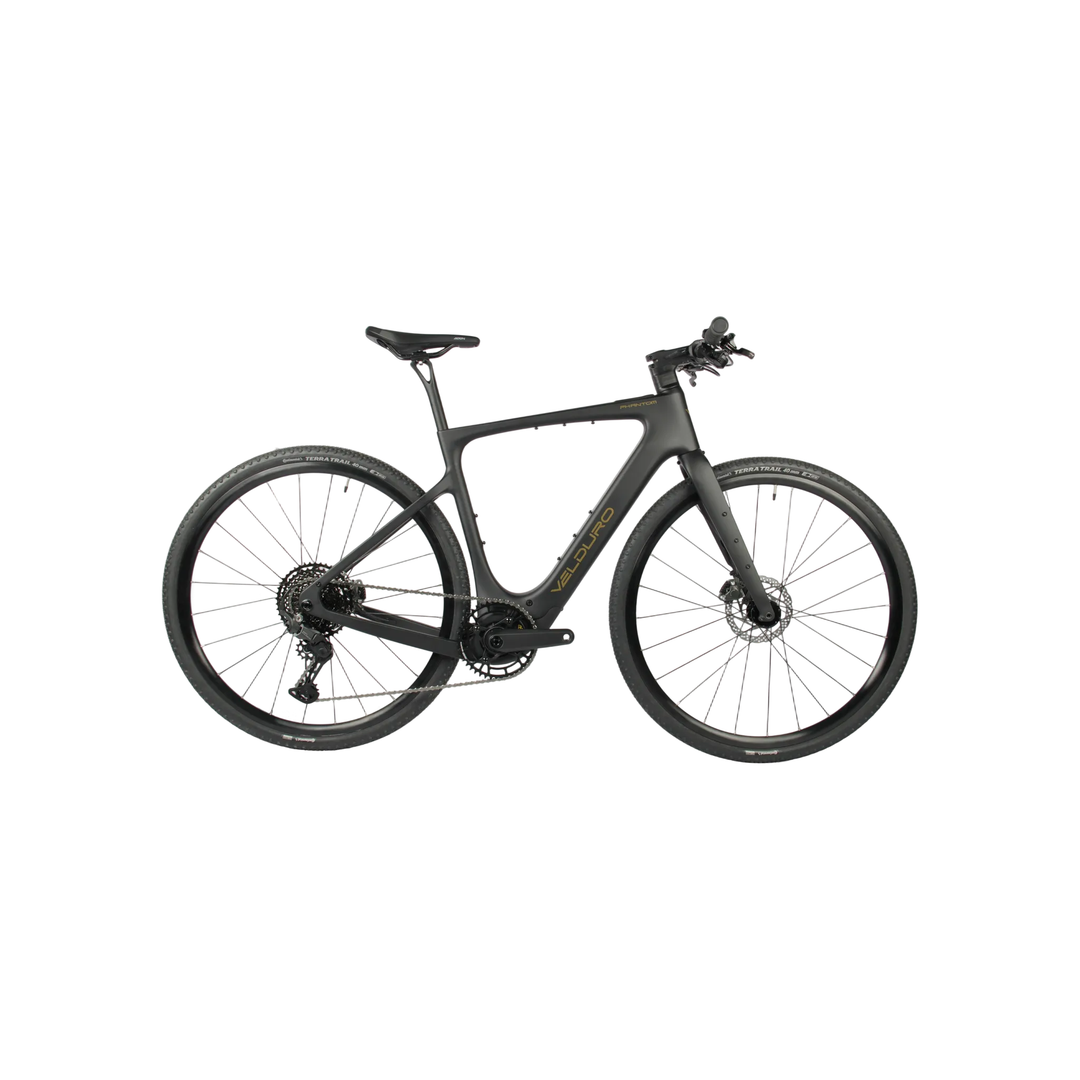

Velduro Phantom S M2 - Black

The Phantom S is the ultimate flat-bar e-commuting and adventure machine. Engineered around the same award-winning, ultra-lightweight carbon fiber frame as the premium Phantom X, this economically priced model is set to revolutionize your daily commute and weekend gravel riding. Ditch the car, save on fuel, and accelerate your rhythm with a flat-bar cockpit designed for upright visibility, control, and absolute confidence on asphalt, limestone pathways, or rugged backcountry routes.

Specifications

Avinox Drive System

• Motor: AVINOX M2 250W mid-drive, delivering 120Nm of torque with a temporary Boost mode up to 125Nm, featuring 1100W peak power output.

• Battery: AVINOX 36V, 600Wh ultra-sleek integrated down tube battery.

• Display: AVINOX DP100 integrated top tube control interface.

• Charger: AVINOX 4A 168W fast charger.

Frameset & Geometry

• Frame: Full carbon fiber construction, gravel category geometry, fully integrated down tube battery housing, clean internal cable routing ports, 12x142mm thru-axle dropout layout. Equipped with 8 integrated utility mounting points; fully rack and fender compatible.

• Fork: Carbon fiber gravel-specific fork, 12x100mm thru-axle layout, 50mm offset, equipped with 6 integrated utility cargo mounting points.

• Headset: Token TK155SP (28.6mm diameter), alloy top and bottom matching assemblies (52mm).

Drivetrain & Shifting (Shimano Linkglide 11-Speed)

• Rear Derailleur: Shimano CUES (RD-U6000) 11-speed trail/commute optimized derailleur.

• Cassette: Shimano CUES (LG400) 11-speed Linkglide, ultra-durable 11-45T ratio profile.

• Chain: Shimano LG500 Linkglide heavy-duty chain.

• Chainring: Velduro customized alloy 44T chainwheel, engineered with a 3mm inward offset for optimized chainline efficiency.

• Cranks & Interface: Avinox SL lightweight alloy crankarms, 165mm length, running a dedicated Avinox 104BCD drivetrain spider.

Brakes

• Braking System: SRAM S300 dual-piston hydraulic disc brakes.

• Rotors: SRAM Centerline 6-bolt steel disc rotors; 160mm front / 160mm rear.

Wheels & Tyres

• Rims: 700C Velduro alloy gravel rims, 25mm internal width, 25mm profile depth, traditional hooked bead profile, 24-hole setup.

• Front Hub: Velduro alloy shell, 2 precision-sealed cartridge bearings, 12x100mm thru-axle, 24-hole, 6-bolt rotor mount.

• Rear Hub: Velduro alloy shell, 4 precision-sealed cartridge bearings, 12x142mm thru-axle, 24-hole, HG freehub body, 6-bolt rotor mount.

• Spokes: High-strength 13G heavy-duty gauge spokes.

• Tyres: Continental Terra Trail, 700x45C, high-grip adventure profile.

• Setup Note: Ships with inner tubes installed; rims and tyres are fully tubeless-ready.

Cockpit & Components

• Handlebars: Velduro alloy MTB straight flat-bar, 31.8mm clamp diameter, 680mm width for nimble commuting control.

• Stem: Velduro Alloy road-strength stem, 31.8mm clamp.

  • Sizing Lengths: Small & Medium: 75mm length / Large & Extra Large: 95mm length.

• Grips: Velduro MTB ergonomic comfort traction grips, Black.

• Seatpost: Velduro lightweight carbon fiber seatpost, 27.2mm diameter, 380mm length.

• Saddle: Fizik Terra Aidon X5 short-nose pressure-relief saddle.

Utility & Clearance Reference

• Wheel Platform: 700C (Gravel/Commute standard)

• Stock Tyre Width: 45mm (700x45C)

• Frame Cargo Capacity: 8 Frame Mounts + 6 Fork Mounts (Rear Rack Compatible)

Please Note: Specifications and component builds are subject to change by the factory based on global running parts substitutions. Total build weight varies slightly across frame sizing, paint finishes, and final commute accessory outfitting.
