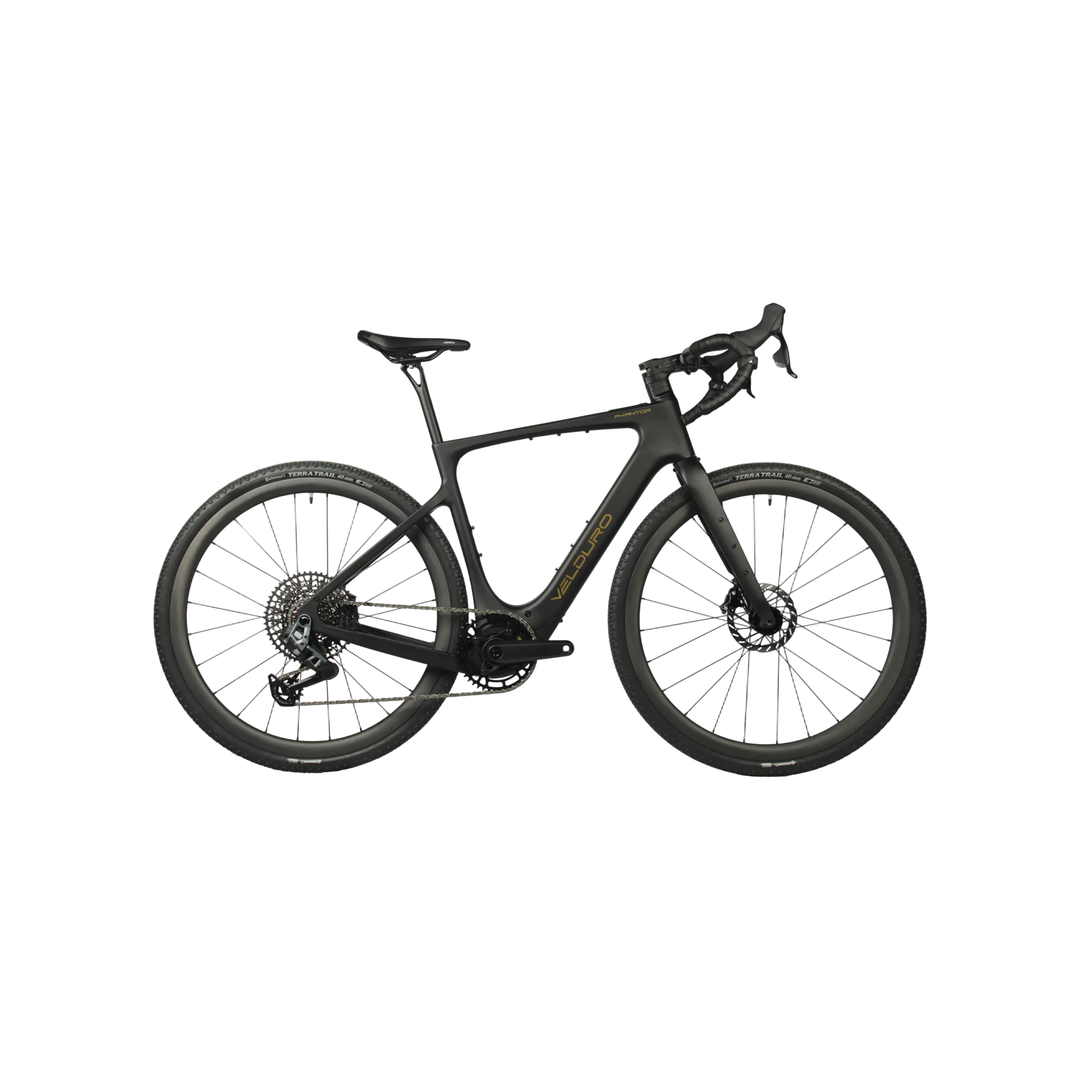

Velduro Phantom X M2 - Black

Our award-winning e-gravel machine has zero compromises on weight, strength, ride quality, or tyre clearance. We have collaborated directly with gravel riders to create the ultimate endurance platform, giving you total freedom to explore, race, and conquer any terrain put in front of you. The precise combination of our ultra-lightweight carbon frame, an advanced wireless electronic wireless drivetrain, and the raw performance of the Avinox M2 drive system makes the Phantom X the fastest, most versatile e-gravel bike on the market.

Specifications

Avinox Drive System

• Motor: AVINOX M2 250W mid-drive, delivering 120Nm of torque with a temporary Boost mode up to 125Nm, featuring 1100W peak power output.

• Battery: AVINOX 36V, 600Wh ultra-sleek integrated down tube battery.

• Display: AVINOX DP100 integrated top tube control interface.

• Charger: AVINOX 4A 168W fast charger.

New Zealand Exclusive Drivetrain Setup

• Shifter/Brake Levers: SRAM Rival AXS HRD wireless electronic Shift-Brake System.

• Rear Derailleur: SRAM Rival XPLR AXS 13-speed wireless electronic derailleur (wired directly to the main bike power system via a dedicated power cable).

• Cassette: SRAM Rival XPLR XG-1351, 13-speed ultra-wide ratio profile.

• Chain: SRAM Rival Transmission Flattop chain.

• NZ Exclusive Chainring Architecture: Lekkie one-piece CNC machined 44T chainring, engineered with a custom 3mm inward offset for optimized chainline efficiency (direct mount interface, deletes the standard spider).

• Cranks: Avinox SL lightweight alloy crankarms, 165mm length.

Brakes

• Braking System: SRAM Rival AXS hydraulic disc brakes.

• Rotors: SRAM HS2 extreme-duty steel disc rotors; 160mm front / 160mm rear 6-bolt.

New Zealand Exclusive Wheels & Tyres

• Wheelset: Easton EC70 AX premium carbon gravel wheelset, 24mm internal rim width, snappy 21mm depth profile, equipped with a high-engagement XDR freehub body layout.

• Tyres: Maxxis Rambler, 700x45C, high-volume gravel racing tread profile, Black.

• Setup Note: Ships with inner tubes installed; premium Easton rims and Maxxis tyres are fully tubeless-ready.

Frameset & Geometry

• Frame: Premium full carbon fiber construction, gravel category geometry, fully integrated down tube battery housing, clean internal cable routing ports, 12x142mm thru-axle dropout layout. Equipped with 8 integrated utility mounting points; fully rack and fender compatible.

• Fork: Carbon fiber gravel-specific fork, 12x100mm thru-axle layout, 50mm offset, equipped with 6 integrated utility cargo mounting points.

• Headset: FSA NO.55R 1.5" / 558 ACR integrated alloy gravel headset, top and bottom 52mm diameter.

Cockpit & Components

• Handlebars: Velduro Carbon gravel handlebar, 31.8mm clamp diameter, ergonomically optimized 15-degree flare for downhill stability.

  • Handlebar Width: Sizes Small & Medium: 420mm / Large & Extra Large: 440mm.

• Stem: FSA SMR Alloy integrated routing stem, -6 degree drop.

  • Sizing Lengths: Small: 70mm, Medium: 80mm, Large: 90mm, Extra Large: 100mm.

• Bar Tape: Velduro premium black gravel handlebar tape.

• Seatpost: Velduro lightweight carbon fiber seatpost, 27.2mm diameter, 380mm length.

• Saddle: Fizik Terra Aidon X5 short-nose pressure-relief saddle.

Premium Component Index (NZ Spec)

• Wheelset Upgrade: Easton EC70 AX Carbon

• Chainring Upgrade: Lekkie CNC 44T (Direct Mount)

• Drivetrain Class: SRAM Rival AXS 13-Speed Wireless Electronic

• Frame Cargo Capacity: 8 Frame Mounts + 6 Fork Mounts (Rear Rack Compatible)

Please Note: Specifications and component builds are subject to change by the factory based on running parts substitutions. Total build weight varies slightly across frame sizing, paint finishes, and final commute accessory outfitting.
