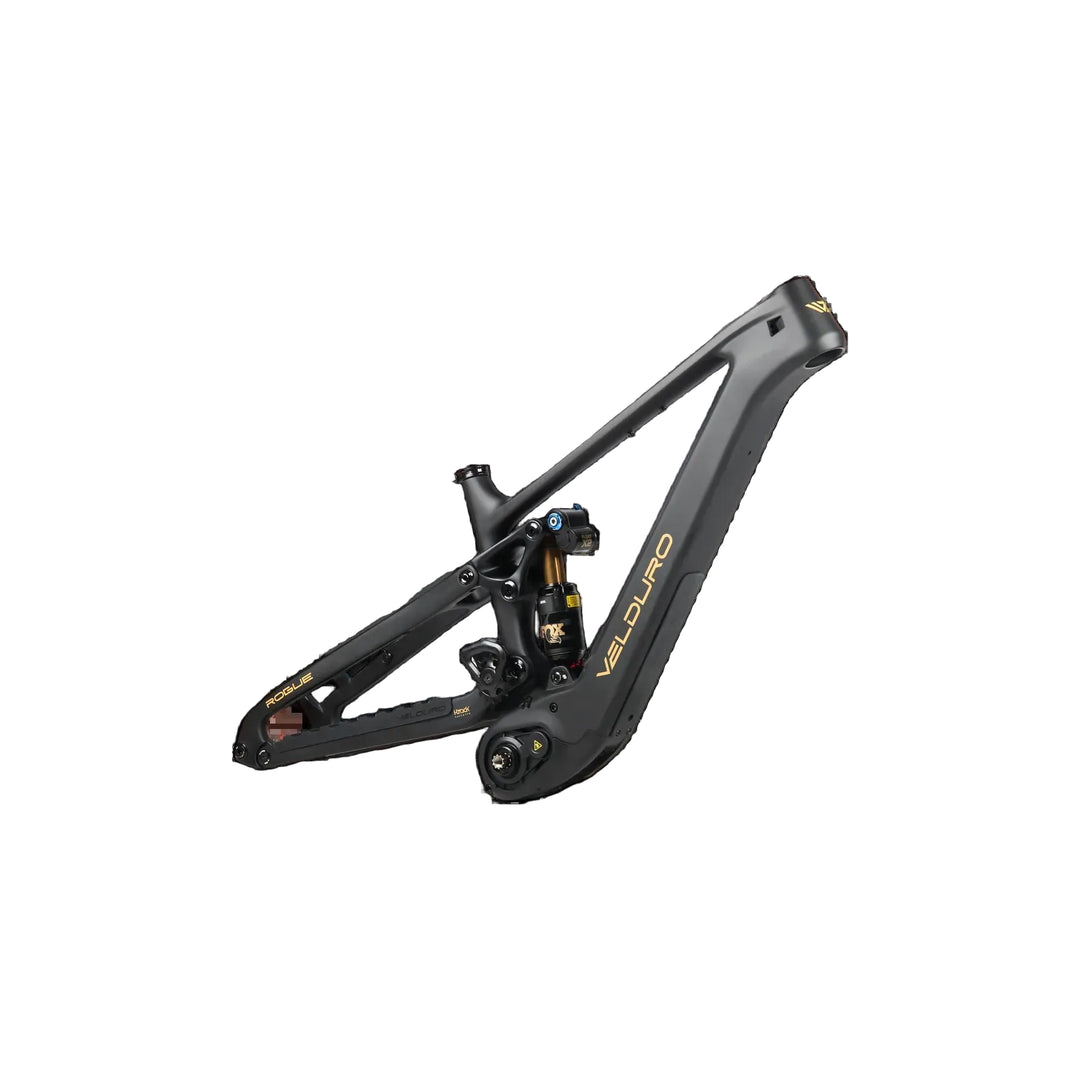

Velduro Rogue M2S - Frame Only

Build your dream e-MTB with Velduro. Utilizing advanced, integrated flip chips, the Rogue’s modular full-carbon frame adapts flawlessly to your specific terrain, riding style, and local trail conditions. Swap your suspension travel, fine-tune the frame geometry, or switch between full 29er and MX "Mullet" wheel configurations to build your ultimate machine.

The Modular Ride Modes

• Standard Mode (170mm Fork / 165mm Rear with MX Wheels): The definitive all-rounder. Optimized as a balanced, hard-charging trail-taming beast.

• All-Mountain Mode (160mm Fork / 160mm Rear with MX Wheels): Lower, tighter, and exceptionally agile. Perfect for snappy, flowy precision and tighter singletrack.

• Enduro Mode (180mm Fork / 172mm Rear with 29" Rear Wheel): Pure gravity dominance. Maximizes roll-over capacity and travel to dominate steep, high-speed descents.

Technical Build Blueprint & Specifications

Frame & Mechanical Compatibility

• Frame Material: Premium full carbon fibre enduro chassis with integrated i-track mid-pivot suspension architecture.

• Drive System Compatibility: Engineered exclusively for the AVINOX M2S drive unit (250W, 130Nm/150Nm Boost) and the integrated AVINOX 800Wh battery system.

• Rear Dropout Layout: Boost 12x148mm thru-axle.

• Drivetrain Compatibility: Dedicated 1x shifting only. Fully compatible with both Shimano and SRAM conventional or electronic groupsets, including direct-mount Full Mount (SRAM Transmission) derailleurs.

• Idler Assembly: Integrated 16T chain idler utilizing oversized, high-load bearings.

• Chainwheel Limit: 104mm BCD pattern spider; maximum chainring capacity up to 34T.

• Crankarm Limits: Supports crank lengths up to 165mm with a minimum offset requirement of 25mm.

• Headset Standard: External wired routing configuration, ZS44/ZS56mm tapered standard.

• Cable Routing: Complete internal ports. Manual shifter inner cable length requirement: 2000mm.

Suspension Engineering & Dimensions

• Fork Compatibility: Designed strictly for 1.5" Tapered single-crown forks with travel ranging from 160mm to 180mm (170mm factory recommended template).

• Axle-to-Crown (ATC) Limit: Must be under 585mm total length.

• Safety Warning: Double-crown (downhill) forks are strictly prohibited and invalidate frame warranty guidelines.

• Rear Shock Standard: Trunnion-mount configurations only.

• Eye-to-Eye Length: 205mm dimension standard.

• Hardware Dimensions: Bottom mounting bushing dimensioned at M8 x 30mm.

• Rear Shock Stroke Configuration Matrix:

• For 165mm or 172mm Rear Travel configurations: Requires a 65mm shock stroke.

• For 160mm or 165mm Rear Travel configurations: Requires a 62.5mm shock stroke.

Wheelset & Tyre Clearances

• Front Wheel Platform: 29-inch (700C matching diameter). Front hub dimensions depend on chosen fork (typically Boost 15x110mm).

• Rear Wheel Platform: Modular dual-compatibility. Accommodates either 29-inch (700C) or 27.5-inch (650B) configurations via integrated rear flip chip adjustment.

• Tyre Clearances:

• Front Tyre: 29" x 2.50" recommended profile (Maximum width boundary up to 2.60").

• Rear Tyre: 29" x 2.40" or 27.5" x 2.40" maximum recommended profile.

Braking Architecture

• Rear Brake Interface: Direct-mount Post Mount engineered for a 203mm rotor directly without the need for additional caliper adapters.

• Front Brake Interface: Dependent entirely upon selected front fork specifications.

• Hydraulic Hose Routing Minimums: Front brake line length: 950mm / Rear brake line length: 1700mm.

Cockpit, Seatpost & Dropper Limits

• Seatpost Inner Diameter: 31.6mm standard.

• Seatpost Clamp Outer Diameter: 35mm diameter standard hardware.

• Maximum Seatpost Insertion Depth Limits:

• Small (S): 260mm insertion depth limit.

• Medium (M): 280mm insertion depth limit.

• Large (L): 300mm insertion depth limit.

• Extra Large (XL): 325mm insertion depth limit.

• Recommended Dropper Post Travel Matrix:

• Small: 180mm travel | Medium & Large: 210mm travel | Extra Large: 240mm travel.

• Internal Dropper Cable Length Guide: 1200mm routing length.
