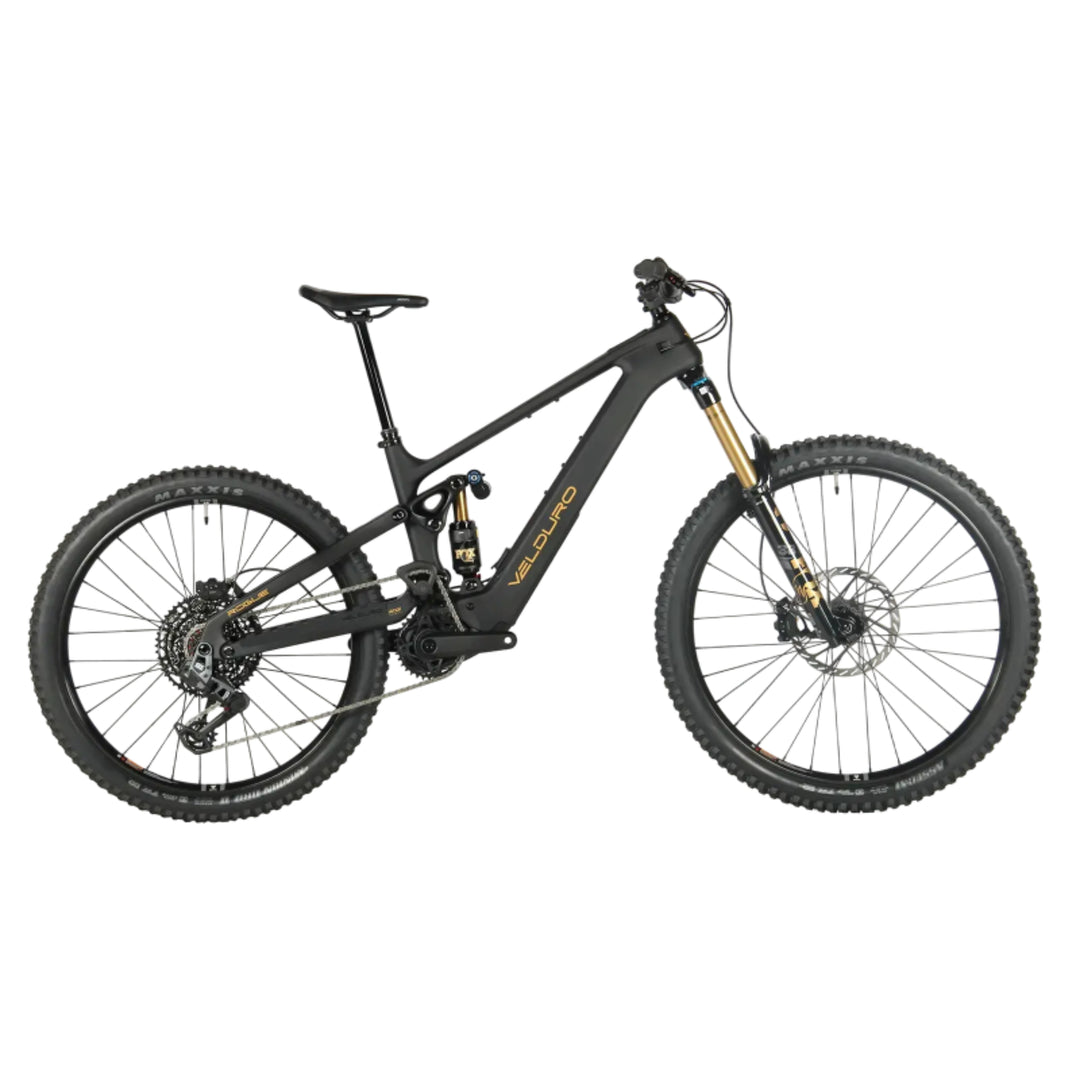

Velduro Rogue R M2S - Black - Medium

Meet the Rogue R, engineered for the ultimate MX enduro experience. Featuring custom Factory-tuned FOX suspension, a SRAM AXS GX Eagle 10-52T drivetrain, and powerful Maven Silver four-piston brakes, this bike is built to perform. Powered by the ground breaking Avinox M2S motor and an 800 Wh battery, the Rogue R delivers all-day capability with i-track enhanced mid-pivot suspension for unmatched control and responsiveness on any terrain. This is the ultimate Avinox-powered enduro e-MTB.

Specifications

E-Bike System

• Motor: Avinox M2S 250W, 130Nm torque (Boost mode to 150Nm), 1300W Peak Power

• Battery: Avinox 36V, 800Wh integrated battery

• Display: Avinox DP100

• Charger: Avinox 4A, 168W

Frame & Suspension

• Frame: Carbon Fibre Enduro Frame, mid-pivot i-track suspension design, integrated battery, internal cable routing, Boost 12x148mm spacing. Features rear wheel flip-chip and shock position flip-chip.

• Idler: 16T idler with oversized bearings

• Fork: FOX Factory 38 (2026), 29", 170mm travel, Grip X2 damper, 15x110mm Boost axle

• Rear Shock: FOX Float X2 Factory (2026), 205x65mm (Custom factory-tuned for the Rogue, 165mm rear travel—up to 170mm with 27.5" rear wheel)

Drivetrain & Shifting

• Shifter: SRAM AXS Pod Controller

• Rear Derailleur: SRAM AXS GX Eagle Transmission with power cable

• Crankset: Avinox SL Crank, 155mm length

• Chainwheel: SRAM e-MTB Eagle 34T

• Cassette: SRAM XS-1275, 10-52T, 12-speed

• Chain: SRAM GX T-Type Flattop Chain

Brakes & Rotors

• Brakes: SRAM Maven Silver, 4-piston hydraulic disc

• Rotors: SRAM HS2 (220mm Front / 200mm Rear)

Wheels & Tyres (Mullet Setup)

• Wheelset: Velduro e-Enduro Carbon EC-30 (29" Front / 27.5" Rear), 30mm internal width

• Front Hub: Alloy, 2 sealed cartridge bearings, 15x110mm thru-axle, 28h, straight-pull, 6-bolt

• Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12mm thru-axle, 28h, straight-pull, 6-bolt, 78T engagement

• Spokes: Sapim e-Light straight-pull

• Front Tyre: Maxxis Assegai 29" x 2.50", 3C MaxxGrip, DoubleDown (DD), Tubeless Ready

• Rear Tyre: Maxxis Minion DHR II 27.5" x 2.40", 3C MaxxTerra, DoubleDown (DD), Tubeless Ready

• Note: Bike is tubeless ready but ships with inner tubes installed.

Components & Cockpit

• Saddle: Fizik Terra Aidon X5

• Dropper Post: OneUp V3 Mechanical, 31.6mm diameter

  • Size S: 180mm travel

  • Sizes M/L: 210mm travel

  • Size XL: 240mm travel

• Seatpost Lever: OneUp Dropper Lever V3.1 (with OneUp Kit 22.2 clamp)

• Handlebar: OneUp Alloy, 800mm width, 35mm rise

• Stem: OneUp Forged Stem, 42mm length

• Headset: FSA No.57 Alloy MTB, ZS44/56

• Grips: Velduro Thick Grips (Black)

• Pedals: Riders Choice (Sold separately/varies)

Weight Info

• Weight: 23.6 kg
