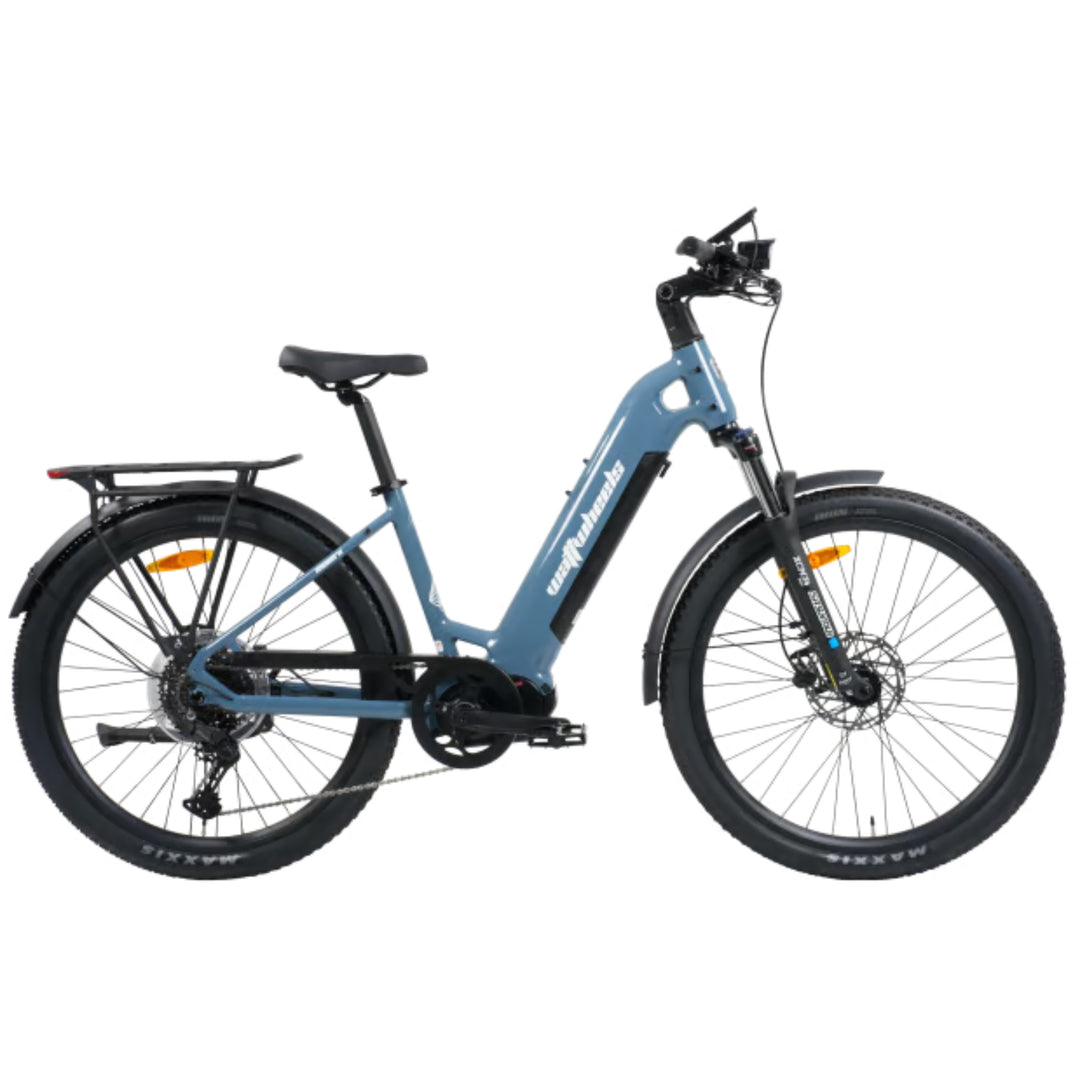

Wattwheels Bighorn LS V5

The Wattwheels Bighorn LS V5 is a versatile, low-step e-bike engineered to excel as an all-rounder for daily commuting and iconic New Zealand trail riding. Recognized as a top scorer in the Daily Use category by Consumer, the V5 iteration pairs a high-torque 120Nm Ananda M100 mid-drive motor with a high-capacity 720Wh down-tube integrated battery built using premium Samsung 21700 cells. Upgraded with smart 4G connectivity, built-in GPS anti-theft tracking, a robust Shimano Cues Linkglide 10-speed drivetrain, Tektro hydraulic disc brakes, and full commuting accessories (including MIK rear rack, integrated lights, and mudguards), the Bighorn LS V5 offers exceptional utility, power, and security.

Specifications

E-System, Smart Tech & Connectivity

• Motor: Ananda M100 300W mid-drive motor, Canbus architecture. Delivers up to 120Nm of torque for effortless climbing performance.

• Battery: 48V 15Ah (720Wh) integrated down-tube battery using Samsung 21700 5000mAh cells with Smart BMS system.

• Speed: Assisted speed capability up to 42 km/h.

• Display: Wattwheels Smart Display with full-colour interface and integrated USB charging port.

• Smart App & Connectivity Features: Integrated 4G SIM module for pairing with the Wattwheels App (available on Google Play / Apple App Store).

  • Real-Time GPS Tracking: Track bike location anytime via 4G network coverage.

  • Geo-Fencing Alerts: Instant notifications if the bike leaves defined boundaries.

  • Remote Theft Reporting: Disable bike electronics and initiate security protocols directly via the app.

  • Remote Diagnostics & Controls: Perform system troubleshooting, toggle lights, and adjust pedal-assist levels remotely.

  • App Subscription: First year included in bike purchase price ($59.95/year renewal thereafter; app subscription is optional for basic riding).

• Throttle: Left-hand thumb throttle (removable).

• Charger: D-Power 48V 3A Smart Charger.

Drivetrain & Shifting (Shimano Cues 1x10)

• Shifter: Shimano Cues 10-speed trigger shifter.

• Rear Derailleur: Shimano Cues 10-speed Linkglide derailleur.

• Cassette: Shimano Cues LG400, 10-speed, 11-43T wide-range cassette.

• Chain: KMC E-Glide NPGY e-bike chain.

• Crankset: Ananda Isis crank arms with 44T chainring (170mm arm length).

• Hanger: Universal Derailleur Hanger (UDH) standard.

Brakes & Control

• Brakes: Tektro hydraulic disc brakes.

• Rotors: 180mm stainless steel disc rotors (Front and Rear).

Suspension, Frame & Finishing Kit

• Frame: Low-step premium alloy chassis available in 3 sizes. Features an integrated SRAM UDH rear hanger and internally routed wiring.

• Fork: SR Suntour XCM34 E-Bike rated suspension fork, 100mm travel, Boost axle spacing, lockout lever.

• Handlebar: Alloy 720mm width, 31.8mm clamp, 25mm rise.

• Grips: Velo 140mm lock-on grips.

• Seatpost: Alloy, 31.6mm diameter.

• Saddle: Velo Foam comfort saddle (Black).

Wheels, Hubs & Tyres

• Rims: Double-wall alloy (27.5" on Small/Medium; 29" on Large model), 13G x 36H.

• Hubs: Sealed bearing Boost hubs with ratchet system.

• Tyres:

  • Small & Medium sizes: Maxxis Ikon 27.5" x 2.25"

  • Large (19") size: Maxxis Ikon 29" x 2.25"

Utility Accessories & Integrated Extras

• Rear Rack: MIK-compatible heavy-duty rear cargo rack with integrated rear tail light.

• Lighting & Fenders: Integrated front and rear LED safety lights, full-coverage mudguards.

• Optional Front Rack: Front rack attachment available separately (+$99 NZD).

Frame Sizing, Colours & Warranty

• Available Frame Sizes: Small, Medium, Large (29er).

• Available Colourways: Misty Blue, Moroccan Red.

• Bike Weight: Net weight 24 kg (plus battery at 3.75 kg; total system weight ~27.75 kg).

• Maximum System Weight Limit: 130 kg combined total weight limit (rider + bicycle + cargo).

• Comprehensive Warranty Coverage:

  • 5 Years: Frame structure

  • 2 Years: Motor, Battery, and Display screen

  • 12 Months: Mechanical components
